Specifications
China automatic vibro block machinedium-size,small investment
duce different size bricks
3.PLC control
China automatic vibro block machine
This project is automatic,small invest,high return.
We supply the professional equipment,the technical supporting and so on.
Best after-sale service.
Land area needed:
Workshop area:198m2-250m2,the workshop size:18m*11m*4.5m,the bigger the better
All factory area:1500m2 is enough.The bigger the better.
Capacity and working time:
Capacity: 5760-7680pcs per shift (block size:390*190*190mm)
Working times: 1 shit (8 hours)
There are approximately 300 working days in a year
The full line need 4 or 5 workers.
Product:
(1) Hollow block:400*200*200mm (17KG)
Hollow block:400*150*200mm (13.5KG)
Hollow block:400*100*200mm (10KG)
Final block pressure:
Hollow block can reach 8-10MPa,solid block can reach 10-12 Mpa.They have the high pressure,can be widely used.
Raw material:
1.Sand,flyash,crush stone,slag,construction garbage cement are all can be used in the making the block.
2. But the cement must be used in making the concrete block.
3.We define Clay as particles.
4.Rate of raw materials for example:
Cement:8-10%,sand 30%-40%,stone:50%-60%. The rate of cement:sand:stone: 1:4:5
Water :3%-5% of raw material weight
1.The main technical specifications:
| host machine size | 3000*2200*2600mm |
| pallet size | 935*580*20/25mm |
| molding cycle | 15-20S |
| weight | 8.5T |
| Vibration force | 60KN |
| Rated Power | 15.5KW |
| Vibration frequency | 2850/min |
| Mixer model | JS500 |
2.The capacity of the QT4-15 flyash brick making machine:
| item | Specifications | Quantity/H(pc) | pcs/mould |
| concrete block | 390*190*190 | 640-720 | 4 |
| solid block | 240*115*53 | 3800-4500 | 26 |
| porous block | 240*115*90 | 1900-2250 | 14 |

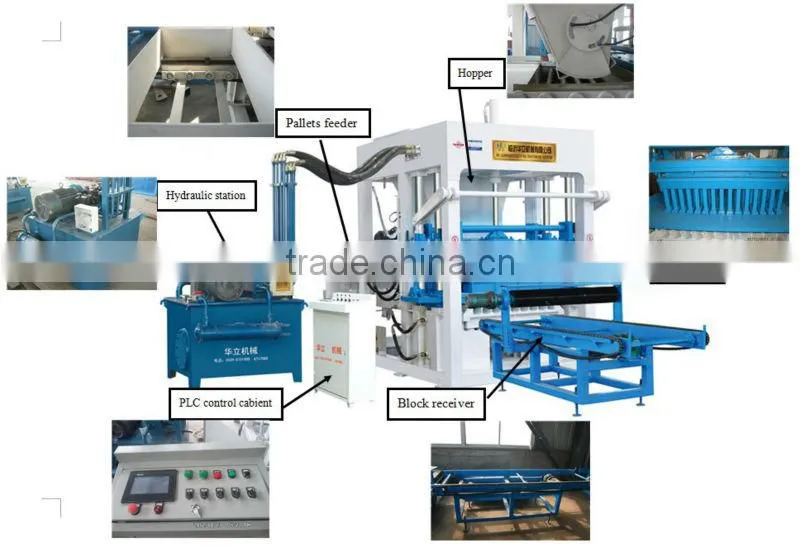

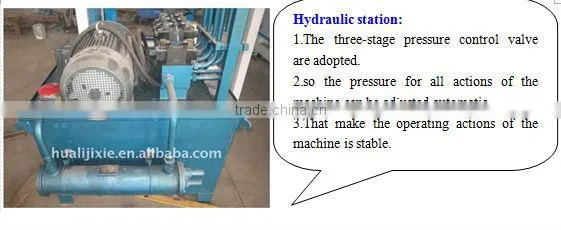

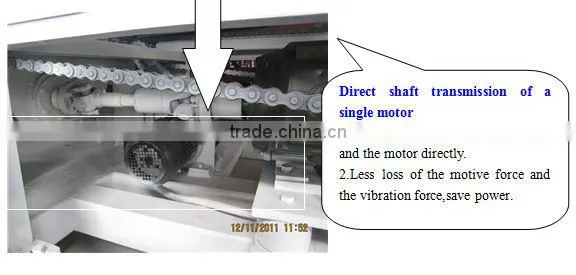

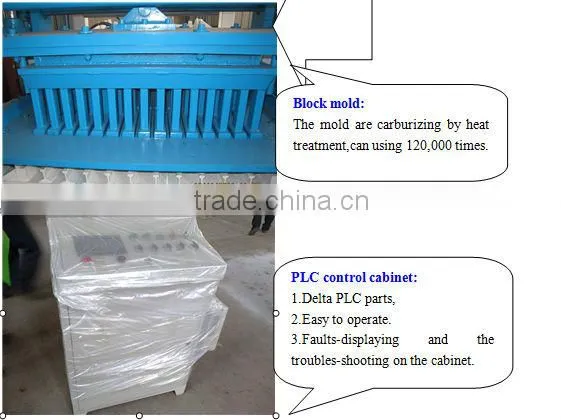

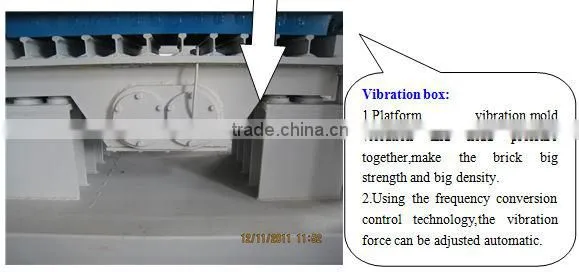

3.Some introductions of China automatic vibro block machine

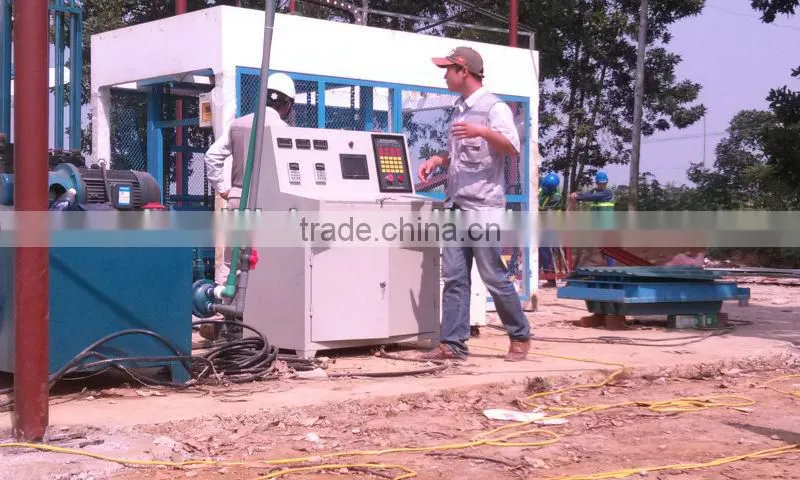

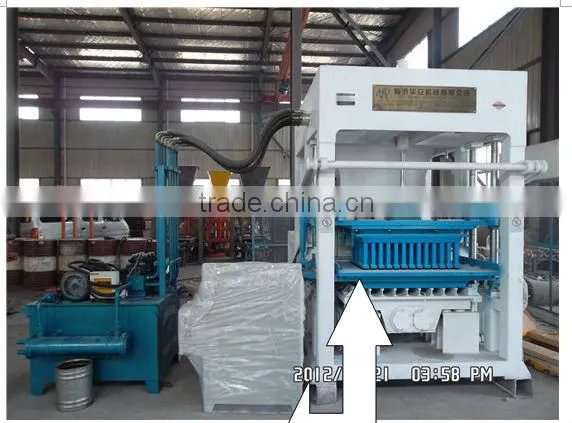

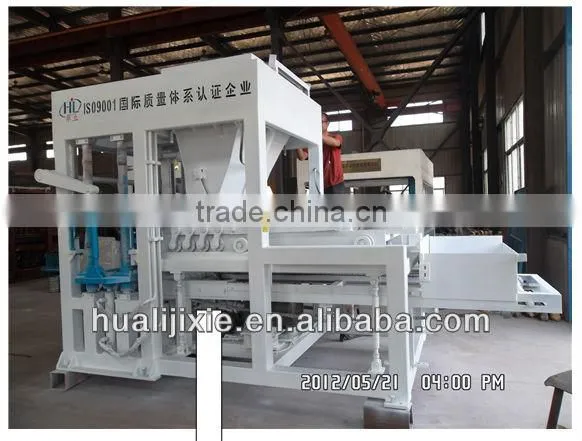

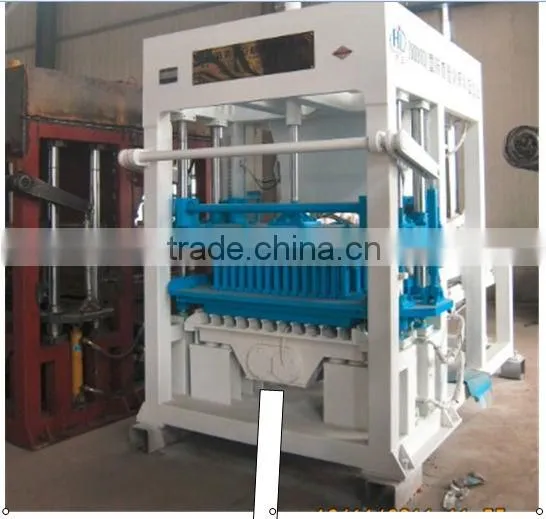

4.The real picture of China automatic vibro block machine
5.Our are loading the China automatic vibro block machine
