Specifications
QFT3-20 hydraform concrete interlock brick making machines1.hydraulic,semi-auto
2.Make different pavers
3.low cost
QFT3-20 hydraform concrete interlock brick making machines

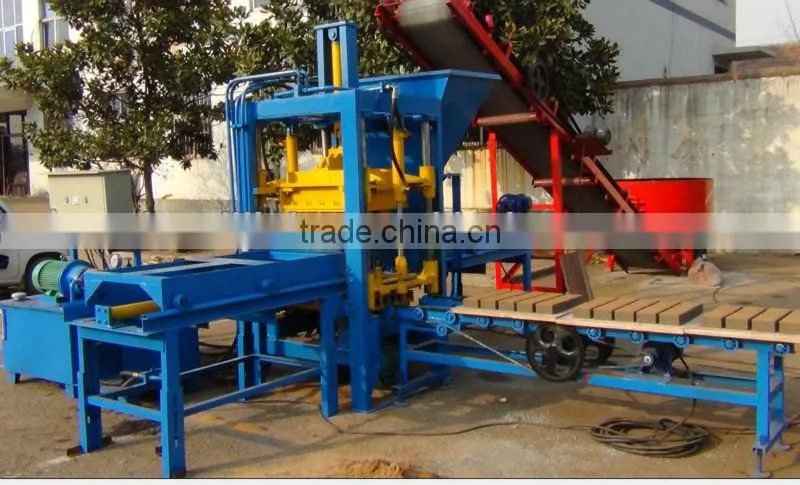

1.Brief Introduction of QFT3-20 hydraform concrete interlock brick making machines
This QFT3-20 hydraform interlocking brick machine in Kenya is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the paving brick,bread brick,hollow block , it can produce various kinds of paving bricks,roads bricks etc.
2.Main Technial Parameter of QFT3-20 hydraform concrete interlock brick making machines
Main vibration form |
Platform vibration and pressure |
Cycle Time |
20 seconds |
Vibrating Frequency |
4600 rolls/minute |
Motors Power |
14.25KW |
Pallet Size |
680*530mm |
Raw Materials |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, paving stones with or without face mix, garden and landscaping products, slabs, edgers, curbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields |
widely used in buildings, road paving’s, squares, gardens, landscaping, city constructions, etc. |
3.Capacity of QFT3-20 hydraform concrete interlock brick making machines
Type |
Sample |
Size(mm) |
Quantity |
Molding cycle |
QTY/Per hour |
Paver block mould 01 |
|
200*100*60 |
10pcs/mould |
15-20s |
1800pcs |
Paver block mould 02 |
|
225*112.5*60 |
8pcs/mould |
15-20s |
1020pcs |
Paver block mould 03 |
|
400*200*80 |
3pcs/mould |
15-20s |
540pcs |
Paver block mould 04 |
|
200*160*60 |
6pcs/mould |
15-20s |
1080pcs |

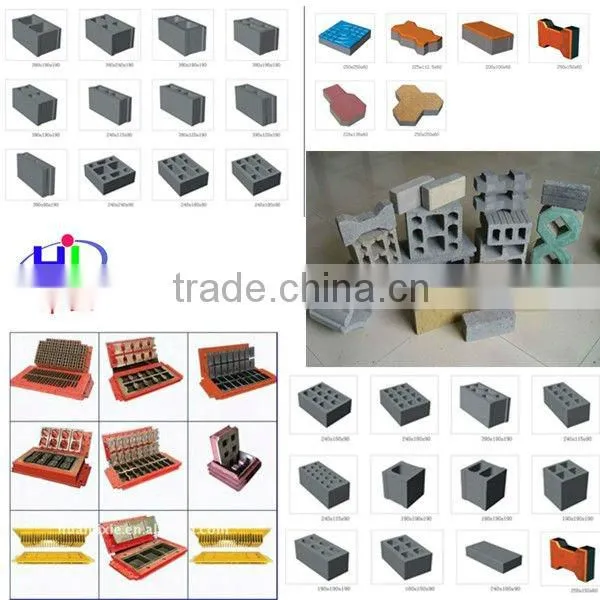

4.Mould sample of QFT3-20 hydraform concrete interlock brick making machines
5.clients of QFT3-20 hydraform concrete interlock brick making machines
