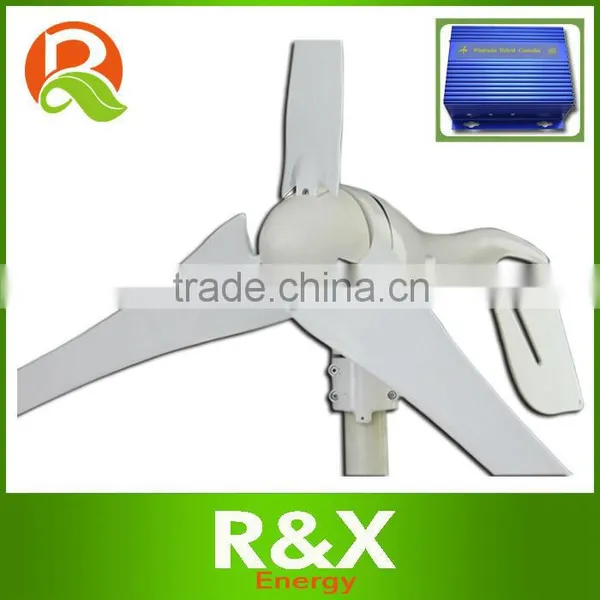

Off-grid Wind Generator. Combine With Wind/solar Hybrid Controller.

Off-grid Wind Generator. Combine With Wind/solar Hybrid Controller. thumbnail-1
Off-grid Wind Generator. Combine With Wind/solar Hybrid Controller. photo-1
US$ 230 - 295 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
R&X
Model Number:
SF-600-3
Contact Supplier Request Quote Chat Now
Nantong R&X Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/SHENGZHN/NIONGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name R&X
Model Number SF-600-3
Type Wind Power Generator

Specifications

off-grid wind generator
1.Start in breeze 3.0m/s
2.Spinning then charging
3.High efficient output.
4.CE,ROHS ISO9001

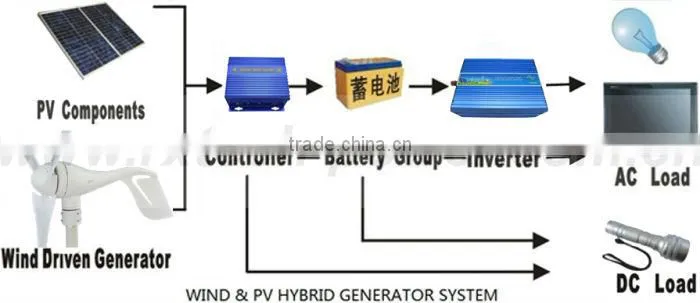

Off-grid wind generator. Combine with wind/solar hybrid controller.







Sample Purchase online: Click here






Please leave a message about whether you need

12V or 24V.









Introduction





Wind is in nature inexhaustible energy, but also not pollute the environment is one of the energy.

Changing the wind energy to power energy is used in industry production and normal life,

which is human ideal energy acquisition modes.This Wind Turbine Generator includes a high

efficiency motor to get the most from the turbine.This turbine comes with one of the best

warranties in the industry.



This wind generator turbine is small yet versatile turbine and can produce up to 600 Watts Max.

It features a special coating that protects the generator, making it suitable for locations.

The turbine begins to supply power in wind speeds as low as 3m/s









Technical Data



Model

SF-600

Brand

R&X

Rated Power

400W

AC voltage

AC 12V/24V

Rated DC Voltage

DC12V/24V

Rated Current

33A/17A

Rated Speedy

640r/m

Max Power

600W

Number of blade

3 PCS

Start-up wind speed

3m/s

Cut-in wind speed

3.5m/s

Cut-out wind speed

15m/s

Rated wind speed

12m/s

Rotor diameter

1185mm

Blade material

Carbon fiber with nylon

Output line anti-winding device

Overall three-phase commutator

Wind protection

Tip stall protection+turned protection+electromagnetic brake

Life span

20years

Equipment surface protection

Aluminum oxide+plastic coating

Working temperature

-40°C to 70°C

Weight

8.5kg

Package dimension

672mm*350mm*210mm

Power Curve

Off-grid wind generator. Combine with wind/solar hybrid controller.



Monthly Power Generation

Cure

Off-grid wind generator. Combine with wind/solar hybrid controller.



 Drawing

Off-grid wind generator. Combine with wind/solar hybrid controller.











Packing list



1. Wind turbine

2. 3 PCS of blades

3. Wind turbine hub

4. Screw bolts and nose cone

5. Wind/solar hybrid controller





Description



1.simple structure,running stably,power supply for city lamp,monitoring and home.

2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.

3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.

4. Brand New in box

5. CE Certificate

6. ISO9001:2000 Quality Certification

7. ROHS Certification

8. Large power, low volume, high efficiency

9. Carbon fiber blades, high efficiency of anti-wind ability,move mutely and steadily

10. Blades with the ability of automatically stall protection under strong wind

11. 3 years free warranty
















Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.










Picture of controller



Off-grid wind generator. Combine with wind/solar hybrid controller.

















Application

Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.



Off-grid wind generator. Combine with wind/solar hybrid controller.
