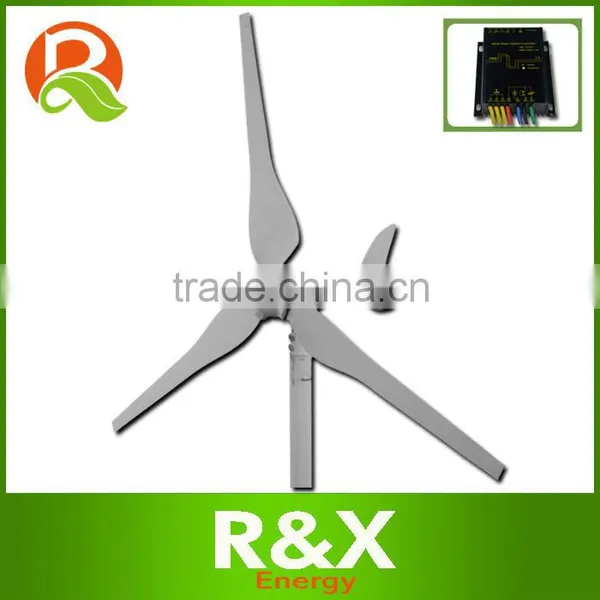

Windmill turbine 100W. Combine with wind/solar hybrid controller (LED display).

Specifications

windmill turbine
1.Start in breeze 3.0m/s
2.Spinning then charging
3.High efficient output.
4.CE,ROHS,ISO9001

Windmill turbine 100W. Combine with wind/solar hybrid controller (LED display).







Sample Purchase online:Click here







Please leave a message about whether you need

12V or 24V.









Introduction





1. Which is using ultra-light composite materials and engineering
plastics.

2. The headpiece can be arbitrary rotated with anti-winding ability and automatically turned
protection when faced with strong winds.

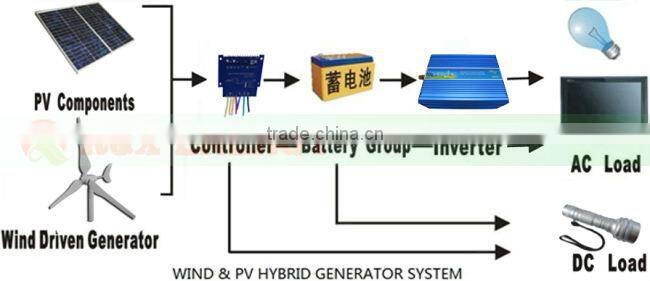

3. As high efficiency, they can be made hybrids system with solar panel.







Technical Data



Model	Hyacinth-100
Rated Power	100W
Rated Voltage	DC/AC 12V/24V
Rated Current	8.8A/4.4A
Rated Speedy	860r/m
Max Power	115W
Number of blade	3 PCS
Start-up wind speed	3m/s
Cut-in wind speed	3.5m/s
Cut-out wind speed	15m/s
Security wind speed	45m/s
Rated wind speed	12m/s
Engine	Three- phase permanent magnet generator
Rotor diameter	1050mm
Blade material	Carbon fiber reinforced plastics
Output line anti-winding device	Overall three-phase commutator
Over-speed wind protection	Tip stall protection + turned protection + Electromagnetic brake
Life span	10years
Equipment surface protection	Aluminum oxide+plastic coating
Working temperature	-40°C to 70°C
N.W.	2.8kg
Packing material	Carton box and foam material
packing dimension	63cm*28cm*25cm
G.W.	3.5kg
Controller*Inverter	300W
Drawing
100W monthly power generation curve
Powe curve
Certification



















Description



1.simple structure,running stably,power supply for city lamp,monitoring and home.



2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.



3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.



4. Brand New in box



5. CE Certificate



6. ISO9001:2000 Quality Certification



7. ROHS Certification



8. Large power, low volume, high efficiency



9. High efficiency of anti-wind ability,move mutely and steadily



10. Blades with the ability of automatically stall protection under strong wind



11. 3 years free warranty

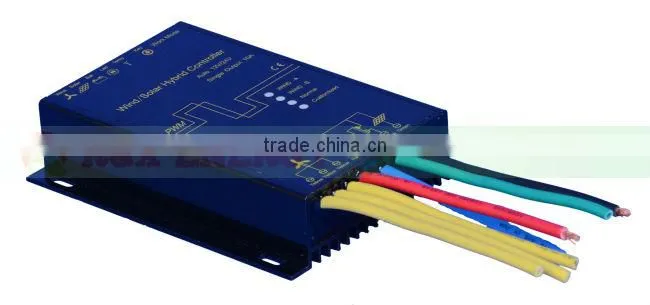

Picture of controller







Application
