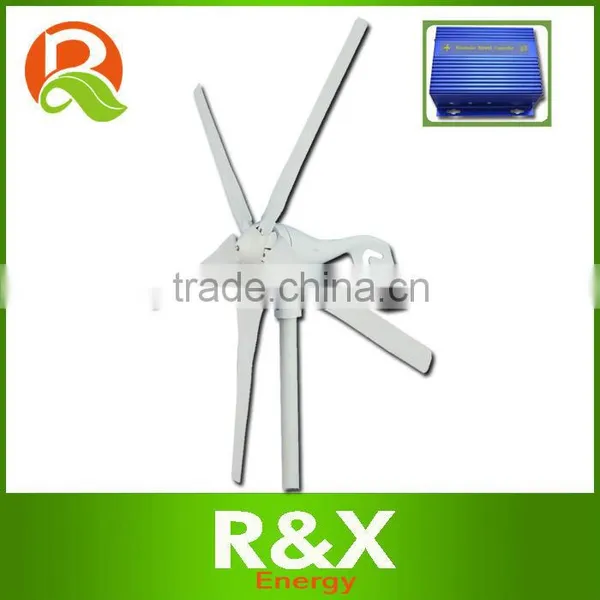

Micro Wind Generator, Combine With Wind/solar Hybrid Controller.

US$ 185 - 235 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

R&X

Model Number:

SF-600-5

Nantong R&X Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/SHENGZHN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name R&X

Model Number SF-600-5

Type Wind Power Generator

Specifications

Micro wind generator
1. Start in breeze 2.5m/s
2. Spinning then charging
3. High efficient output.
4. CE,ROHS,ISO9001

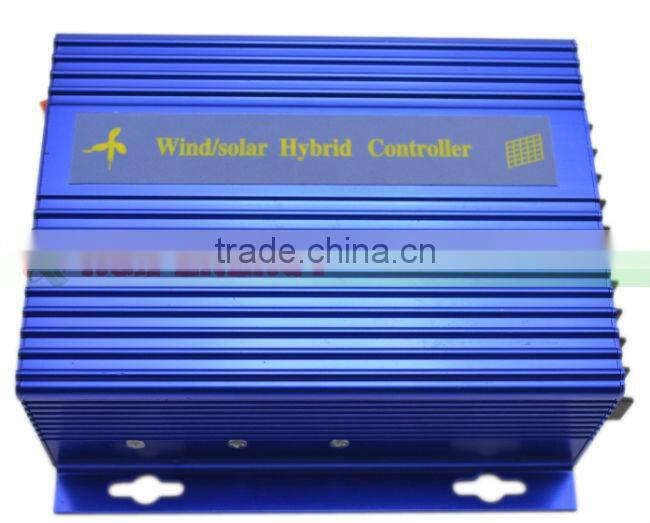

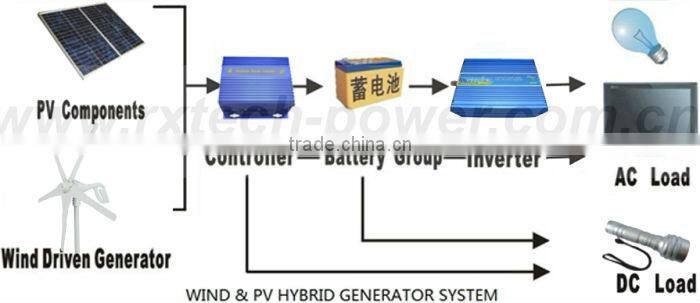

Micro wind generator, combine with wind/solar hybrid controller.

Sample Purchase online: Click here

Please leave a message about whether you need

12V or 24V.

Introduction

Wind is in nature inexhaustible energy, but also not pollute the environment is one of the energy.

Changing the wind energy to power energy is used in industry production and normal life,

which is human ideal energy acquisition modes.This Wind Turbine Generator includes a high

efficiency motor to get the most from the turbine.This turbine comes with one of the best

warranties in the industry.

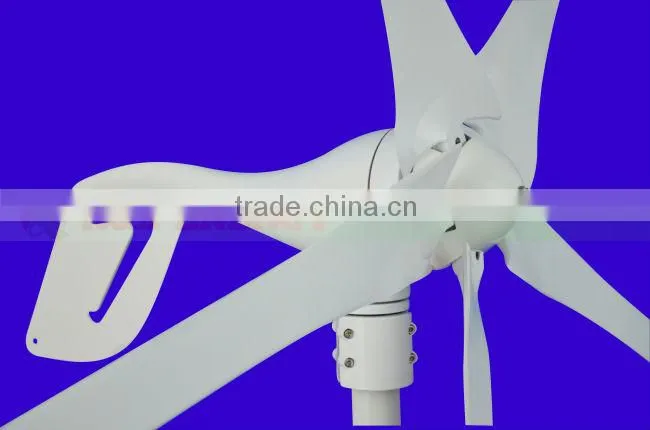

This wind generator turbine is small yet versatile turbine and can produce up to 600 Watts Max.

It features a special coating that protects the generator, making it suitable for locations.

The turbine begins to supply power in wind speeds as low as 2.5m/s

Technical Data

Model	SF-600-5
Rated Power	400W
Rated AC Voltage	AC12V/24V
Use voltage	DC12-24 AC110 220
Rated Current	33A/17A
Rated Speed	640r/min
Max Power	600W
Number of blade	5 PCS
Start-up wind speed	2.5m/s
Cut-in wind speed	3.5m/s
Cut-out wind speed	15m/s
Rated wind speed	12m/s
Engine	Three-phase permanent magnet generator
Rotor diameter	1230mm
Blade material	Carbon fiber with nylon
Tower diameter	50mm
Battery PCS	2
Battery Qty	12V 200AH
Output line anti-winding device	Overall three-phase commutator
Wind protection	Tip stall protection+turned protection+electromagnetic brake
Life span	20years
Equipment surface protection	Aluminum oxide+plastic coating
Working temperature	-40°C to 70°C
Weight	8.5kg
Package dimension	672mm350mm210mm
Power Curve
Monthly Power Generation Cure
Drawing
