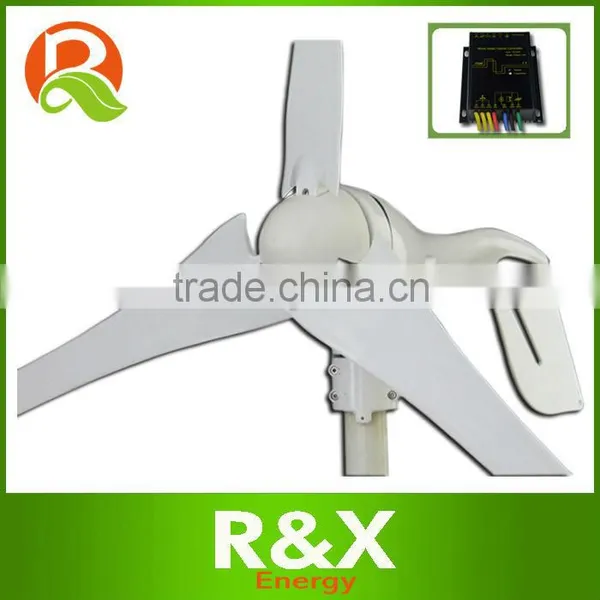

Low wind power generator, combine with wind/solar hybrid controller(LED display).

Specifications

Low wind power generator
1. Start in breeze 3.0m/s
2. Spinning then charging
3. High efficient output.
4. CE,ROHS,ISO9001

Low wind power generator, combine with wind/solar hybrid controller(LED display).







Sample Purchase online: Click here







Please leave a message about whether you need

12V or 24V.









Introduction





Wind is in nature inexhaustible energy, but also not pollute the environment is one of the energy.



Changing the wind energy to power energy is used in industry production and normal life,



which is human ideal energy acquisition modes.This Wind Turbine Generator includes a high



efficiency motor to get the most from the turbine.This turbine comes with one of the best



warranties in the industry.







This wind generator turbine is small yet versatile turbine and can produce up to 600 Watts Max.



It features a special coating that protects the generator, making it suitable for locations.



The turbine begins to supply power in wind speeds as low as 3m/s









Technical Data



Model	SF-600
Brand	R&X
Rated Power	400W
AC voltage	AC 12V/24V
Rated DC Voltage	DC12V/24V
Rated Current	33A/17A
Rated Speedy	640r/m
Max Power	600W
Number of blade	3 PCS
Start-up wind speed	3m/s
Cut-in wind speed	3.5m/s
Cut-out wind speed	15m/s
Rated wind speed	12m/s
Rotor diameter	1185mm
Blade material	Carbon fiber with nylon
Output line anti-winding device	Overall three-phase commutator
Wind protection	Tip stall protection+turned protection+electromagnetic brake
Life span	20years
Equipment surface protection	Aluminum oxide+plastic coating
Working temperature	-40°C to 70°C
Weight	8.5kg
Package dimension	672mm*350mm*210mm
Power Curve
Monthly Power Generation  Cure
Drawing











Packing list





1. Wind turbine



2. 3 PCS of blades



3. Wind turbine hub



4. Screw bolts and nose cone



5. Wind/solar hybrid controller with LED display







Description



1.simple structure,running stably,power supply for city lamp,monitoring and home.

2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.

3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.

4. Brand New in box

5. CE Certificate

6. ISO9001:2000 Quality Certification

7. ROHS Certification

8. Large power, low volume, high efficiency

9. Carbon fiber blades, high efficiency of anti-wind ability,move mutely and steadily

10. Blades with the ability of automatically stall protection under strong wind

11. 3 years free warranty






































Picture of controller

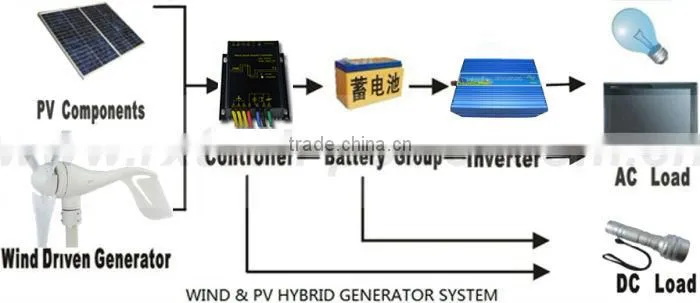

Application
