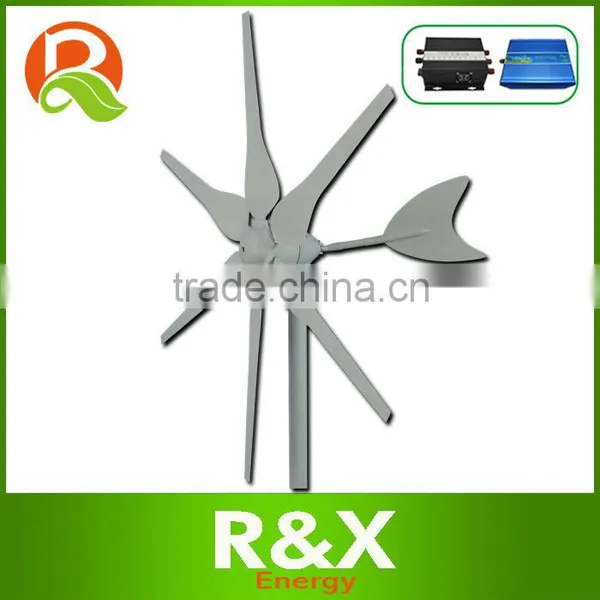

6 blades horizontal axis windmill+wind controller+600w off gird pure sine wave inverter. 3 years warranty.

Specifications

horizontal axis windmill
1.Start in breeze 2m/s
2.Spinning then charging
3.High efficient output.
4.CE,ROHS,ISO9001

6 blades horizontal axis windmill+wind controller+600w off gird pure sine wave inverter. 3 years warranty.







Sample Purchase online: Click here







Please leave a message about whether you need

12V or 24V.









Introduction





1. Which is using ultra-light composite materials and engineering
plastics.

2. The headpiece can be arbitrary rotated with anti-winding ability and automatically turned
protection when faced with strong winds.

3. As high efficiency, they can be made hybrids system with solar panel.





Technical Data



Model	Hyacinth-300
Rated Power	300W
Rated Voltage	DC/AC 12V/24V
Rated Current	25A/12.5A
Rated Speedy	900r/m
Max Power	350W
Number of blade	6 PCS
Start-up wind speed	2m/s
Cut-in wind speed	3.0m/s
Cut-out wind speed	15m/s
Security wind speed	40m/s
Rated wind speed	12.5m/s
Engine	Three-permanent magnet generator
Rotor diameter	1140mm
Blade material	Carbon fiber reinforced plastics
Output line anti-winding device	Overall three-phase commutator
Over-speed wind protection	Tip stall protection + turned protection + Electromagnetic brake
Life span	15years
Equipment surface protection	Aluminum oxide+plastic coating
Working temperature	-40°C to 70°C
N.W.	5.125kg
packing dimension	62cm*26cm*22cm
G.W.	6.5kg
Drawing
300W monthly power generation curve
Powe curve
Certification













Description



1.simple structure,running stably,power supply for city lamp,monitoring and home.



2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.



3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.



4. Brand New in box



5. CE Certificate



6. ISO9001:2000 Quality Certification



7. ROHS Certification



8. Large power, low volume, high efficiency



9. High efficiency of anti-wind ability,move mutely and steadily



10. Blades with the ability of automatically stall protection under strong wind



11. 3 years free warranty












































Picture of controller















Picture of inverter













Socket design for different country

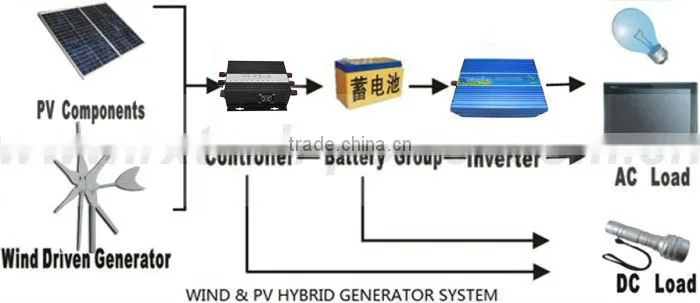

Application
