Specifications
300W wind generator1.Start in breeze 2m/s
2.Spinning then charging
3.High efficient output.
4.CE,ROHS,ISO9001
300w wind turbine generator 6 PCS blades for homes+wind/solar hybrid controller(LCD display)+600w off grid inverter
Sample Purchase online: Click here
Please leave a message about whether you need
12V or 24V.
Introduction
1. Which is using ultra-light composite materials and engineering
plastics.
2. The headpiece can be arbitrary rotated with anti-winding ability and automatically turned
protection when faced with strong winds.
3. As high efficiency, they can be made hybrids system with solar panel.
Technical Data
Model |
Hyacinth-300 |
Rated Power |
300W |
Rated Voltage |
DC/AC 12V/24V |
Rated Current |
25A/12.5A |
Rated Speedy |
900r/m |
Max Power |
350W |
Number of blade |
6 PCS |
Start-up wind speed |
2m/s |
Cut-in wind speed |
3.0m/s |
Cut-out wind speed |
15m/s |
Security wind speed |
40m/s |
Rated wind speed |
12.5m/s |
Engine |
Three-permanent magnet generator |
Rotor diameter |
1140mm |
Blade material |
Carbon fiber reinforced plastics |
Output line anti-winding device |
Overall three-phase commutator |
Over-speed wind protection |
Tip stall protection + turned protection + Electromagnetic brake |
Life span |
15years |
Equipment surface protection |
Aluminum oxide+plastic coating |
Working temperature |
-40°C to 70°C |
N.W. |
5.125kg |
packing dimension |
62cm*26cm*22cm |
G.W. |
6.5kg |

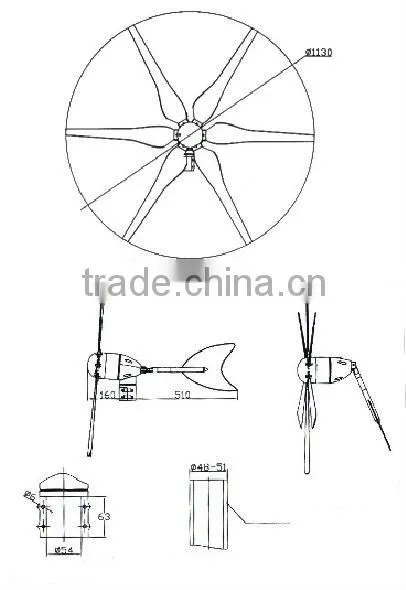

Drawing |
|
300W monthly power generation curve |
|
Powe curve |
|
Certification |
|
Description
1.simple structure,running stably,power supply for city lamp,monitoring and home.
2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.
3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.
4. Brand New in box
5. CE Certificate
6. ISO9001:2000 Quality Certification
7. ROHS Certification
8. Large power, low volume, high efficiency
9. High efficiency of anti-wind ability,move mutely and steadily
10. Blades with the ability of automatically stall protection under strong wind
11. 3 years free warranty
Picture of controller

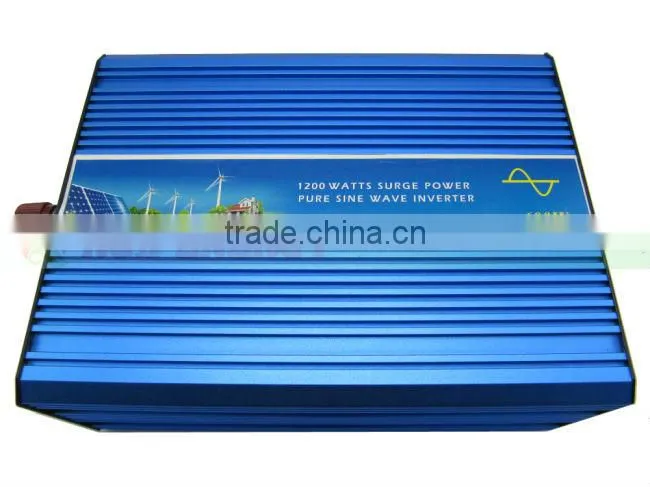

Picture of inverter

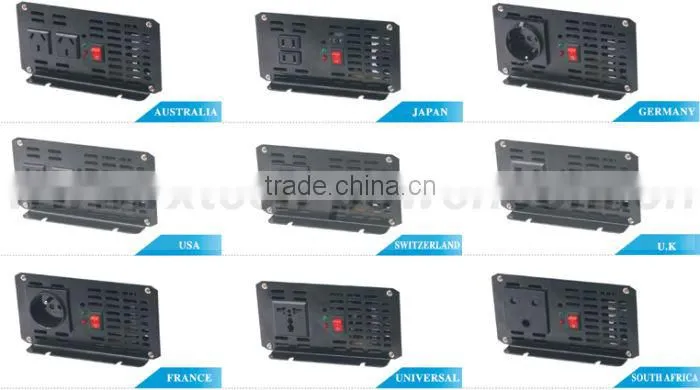

Socket design for different country
Application
