Help Center1000w Wind Charge Controller, Wind Controller for 1000w Wind Generator.
Related Products
-
Solar Charge Controller 12V/24V. Used for Solar and Wind System.US$ 60 - 85MOQ: 1 Piece -
MPPT Solar Charge Controller, Wind/solar Hybrid Controller, With LED Display.US$ 65 - 85MOQ: 1 Piece
-
Wind Generator Battery Charge Controller 1000w.US$ 140 - 180MOQ: 1 Piece
-
1000w Wind/solar Hybrid Controller, 24V/48V. For Solar and Wind Power System.US$ 200 - 250MOQ: 1 Piece
-
600w Mppt Charge Controller for Solar and Wind Power System. CE,ROHS,ISO9001 Certification.US$ 65 - 85MOQ: 1 Piece
Specifications
1000w wind charge controller1. Used for Wind turbine 1000w max
2. Used for wind system

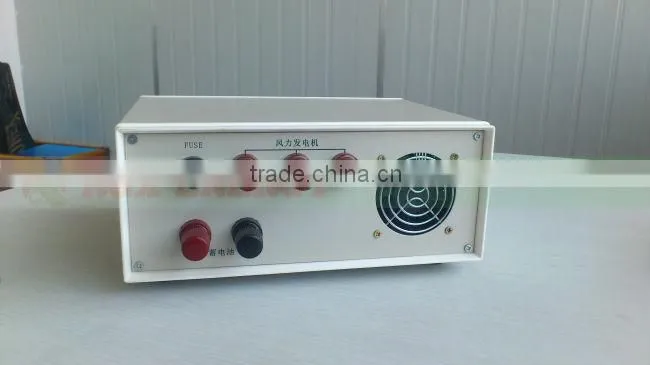

1000w wind charge controller, wind controller for 1000w wind generator.
Sample Purchase online: Click here
Technical Parameters
Model |
RX-1000CW |
|
Rated Battery Voltage(VDC) |
24V |
48V |
Unload Current(A) |
50A |
25A |
Wind Turbine Maximum Input Current(A) |
100A |
50A |
Rated Wind Turbine Power |
1000W |
|
Wind Turbine Maximum Input Power |
2000W |
|
Protection Function |
Battery over charge protection ,Battery reverse connection protection, Wind turbine automatic unloading and manual brake. |
|
Cool mode |
Fan cooling (temperature control system) |
|
Control mode |
PWM(optional) |
|
Dielectric strength VAC (input & output) |
2000V,1min |
|
Noise |
≤50dB |
|
Ambient temperature |
-30°C~80°C |
|
Humidity |
0~90%,no condensation |
|
Use of altitude(m) |
≤5000 |
|
Size (W*L*H mm) |
230*203*101 |
|
W.G |
1.5 kg |
|
Dump load W.G |
7.0 kg |
|
Total gross weight |
10.0kg |
|
Product feature Product feath er:
1. Pure analog circuit,anti-jamming,ability to adapt to the environment.
2. Pure wind controller to meet the different needs of customers.
3. Main circuit topology,high stability.
4. PWM step less unload mode, which burn the excess power, making the battery charging
in best status.
5. Connotation temperature control system,maximizing product life.
6. External fuse,easy to maintain.
Optional function
1. Mains switch module
2. Dry contact signal module (for variable pitch wind turbine)
Application areas
1. Stand alone wind power station
2. Stand alone domestic household wind power system
3. GSM base stations, expressway and other no-residential regions.
4. Coastal islands, remote mountainous, border posts for regions shortage
of or without electricity.
5. Government demonstration projects, landscape lighting project, street light project etc.
Warm prompts
Customers, who will order the wind/solar hybrid street light controllers,
need to provide the following information:
1. Rated battery voltage
2. Rated wind turbine power
3. Whether the wind turbine is three phase AC output, single phase DC output
or single phase AC output.
