Help CenterSolar Charge Controller 12V/24V. Used for Solar and Wind System.
Related Products
-
MPPT Solar Charge Controller, Wind/solar Hybrid Controller, With LED Display.US$ 65 - 85MOQ: 1 Piece -
Wind Generator Battery Charge Controller 1000w.US$ 140 - 180MOQ: 1 Piece
-
1000w Wind/solar Hybrid Controller, 24V/48V. For Solar and Wind Power System.US$ 200 - 250MOQ: 1 Piece
-
600w Mppt Charge Controller for Solar and Wind Power System. CE,ROHS,ISO9001 Certification.US$ 65 - 85MOQ: 1 Piece
-
Price Solar Charge Controller/Wind Charge Controller 1000w Rated, 1500w Max.US$ 200 - 250MOQ: 1 Piece
Specifications
Solar charge controller 12V/24V1. Wind turbine 600w max
2. Solar pane 12V/150W, 24V/300W
3. Used for solar/wind system

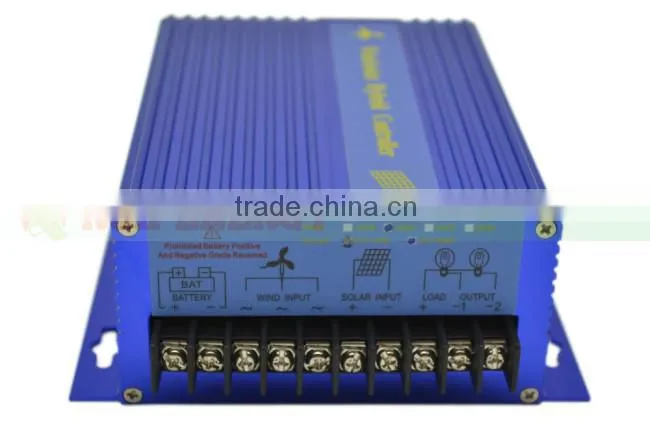

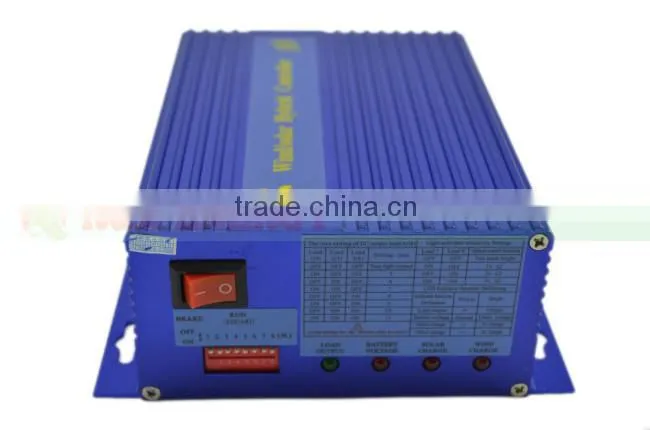

Solar charge controller 12V/24V. Used for solar and wind system.
Sample Purchase online:Click here
Technical Data
Wind/solar Hybrid power-supply system | |
parameter name |
Range of values |
The system rated voltage |
12V/24V |
Solar rated Power |
150W/12V; 300W/24V |
Wind turbine rated Power |
100W-600W/12V/24V |
Wind turbine brake recovery time |
30 minutes |
Overpressure protection voltage |
16.5V/12V; *2/24V |
Full charge voltage |
14.5V/12V; *2/24V |
Charge return voltage |
13.5V/12V; *2/24V |
Over-discharge recovery voltage |
12.1V/12V; *2/24V |
Over-discharge protection voltage |
11.0V/12V; *2/24V |
The coefficient of battery charging temperature compensation |
4mV/°C/2V |
The range of battery charging temperature compensation |
-30~65°C |
Type of load |
LED light, Low pressure sodium lamp, Promise Light, etc. |
Single road load maximum output current |
10A |
Load output mode |
Normally on, light control, time control |
Light control sensitivity threshold |
1~3V/12V *2/24V |
No-load loss |
≤25mA |
Working environment temperature |
-20~+55°C |
Storage environment temperature |
-30~+65°C |
The range of working humidity |
35~85%RH(no condensation) |
altitude in use |
≤5500 M |
Shell size |
160mm*147mm*60mm |
Shell material |
Blue of pure aluminum |
Heat-dissipating method |
Natural cooling |
Features

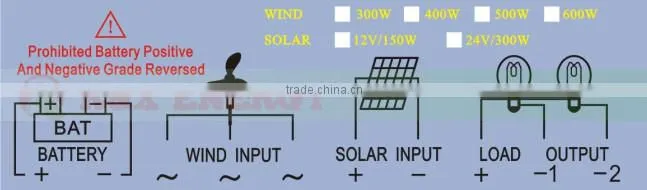

The Batteries
1. Battery over-voltage protection, under-voltage protection, anti-reverse protection, short circuit protection;
2. Battery voltage 12 V 24 V automatic identification;
3.The battery charging temperature compensation function, and automatic identification
whether sensors are online features;
4. The fuse short circuit protection, and the fuse is built-in but can be changed;
Solar panels
1. Anti-reverse function, and night-time anti-recoil function
2. Unique series connected type charging loop, compared with ordinary diode
reduces nearly half of the voltage drop , and effectively improves the efficiency of solar charging
3. Pulse modulation charging, according to the battery voltage automatically adjust the
charging pulse width, and effectively extend the service life of the battery
The Wind turbines
1. Manual braking and automatic braking function (can customize the wind turbines
speed protection function).
2. PWM brake design, so that when the wind turbine brakes, the current is very small,
avoiding large current impacting the generator;
3. The wind turbine brakes automatic recovery;
4. If the battery is off, the wind turbine will automatic brake, preventing
the wind turbine no-load
5. The wind turbine speed detection protection, automatic brake protection to
prevent the wind turbine speeding
Load outputs
1. Double roads DC outputs could work individually, without mutual interference
2. Multiple modes of operation: normally on, pure light control mode, light control
and time control;
3. The unique light control sensitivity in detecting, and lighting time early, middle and
late adjustable
4. when the battery is over-voltage, the battery will automatically close the load
The LED indicator function definition
|
Don't light |
flash |
normally on |
load output |
Without DC output |
/ |
DC output |
battery |
/ |
Normal /operation instructions |
Under voltage |
solar |
Not charge |
/ |
Charging |
wind turbine |
Not charge |
/ |
charging |
