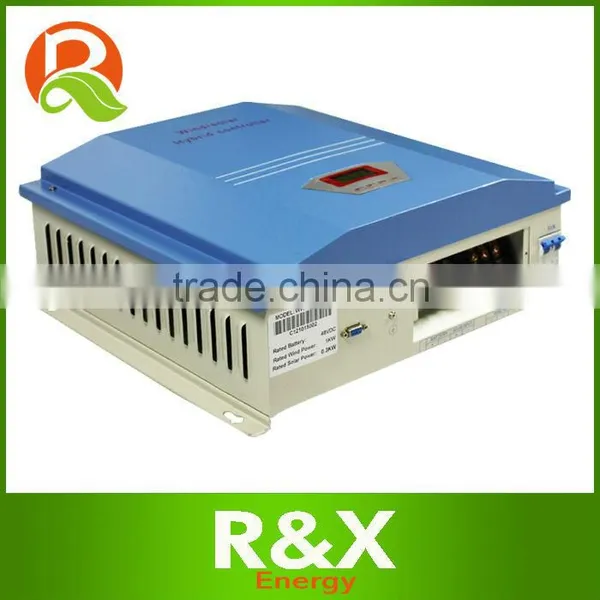

1000w wind/solar hybrid controller, 24V/48V. For solar and wind power system.

Specifications

1000w wind/solar hybrid controller
1. Used for Wind turbine and solar panel
2. Hybrid regulation
3.1500w max

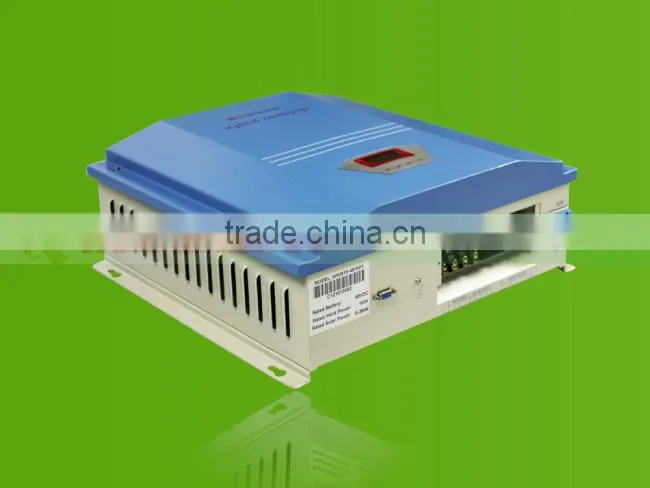

1000w wind/solar hybrid controller, 24V/48V. For solar and wind power system.



Sample Purchase online: Click here



General description

The wind/solar hybrid controller is an intelligent control device which can control

wind turbine and solar panel at the same time, specially designed for high-end

wind/solar hybrid system and also suitable for wind/solar hybrid power system and

wind/solar hybrid  monitoring system.  It is used to control the wind generator and

solar panel to charge the batteries safely and efficiently.







Technical Parameters



Product Model	RX-1000HCB
Rated Battery Voltage	24V	48V
Rated Wind Turbine Input Power	1kW	1kW
Maximum Wind Turbine Input     Power	1.5kW	1.5kW
Wind Turbine  Brake Current	42A	21A
Rated Solar Input Power	300W	300W
Floating Charging Voltage	29V	58V
Display Mode	LCD
Quiescent Current	≤20mA
Ambient Temperature & Humidity	-20~+55°C/35~85%RH(Without Condensation)
Communication Mode (Optional)	RS232,RS485,RJ45,GPRS (optional)
Temperature Compensation           Function (Optional)	-4mV/°C/2V ,–35°C--+80°C ,Precison:±1°C
Dimension (L x W x H)	445×425×170mm
Net Weight	11kg
Customized Products Available
