Specifications
600w wind charge controller1. Used for Wind turbine 600w max

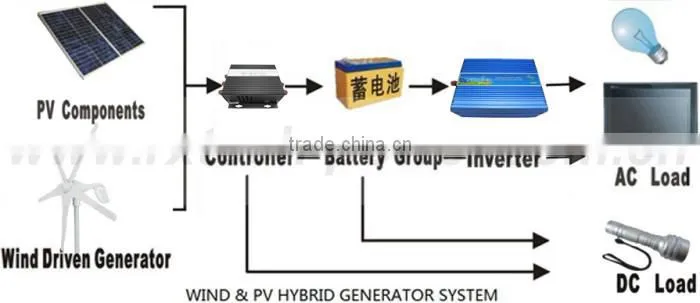

2. Used for wind system

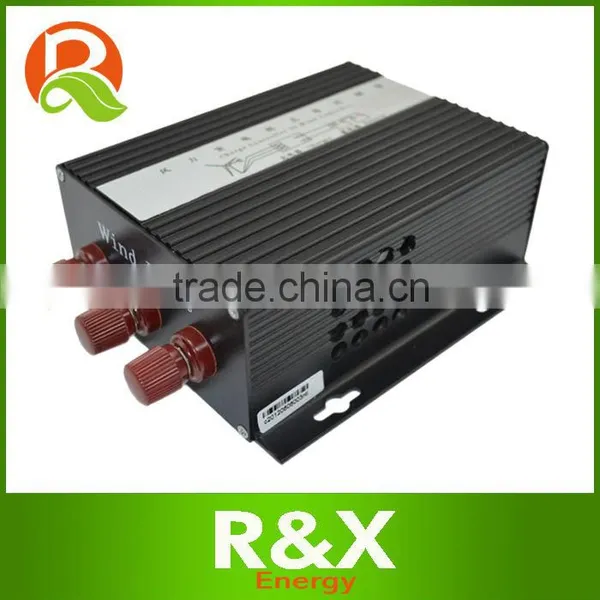

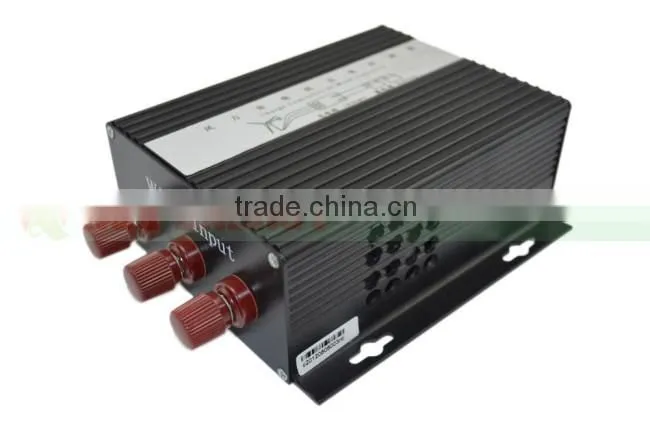

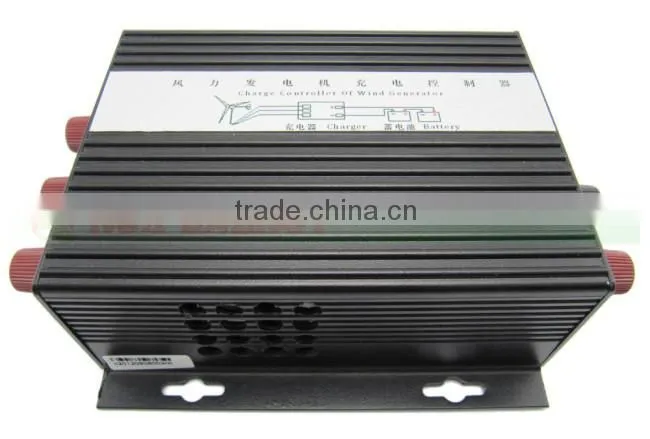

600w wind charge controller for 600w max wind turbine generator.
Sample Purchase online:Click here
Technical Data
Controller
DC IN |
Rated Input Voltage(VDC) |
12/24 |
Rated Input Current(A) |
25A |
|
AC INPUT |
Rated Capacity(KVA) |
0.3 |
Main Circuit Structure |
Full Bridge Converter |
|
Control Mode |
Mechanical Control |
|
Work Pattern |
continuation |
|
work environment |
insulating strength VAC (import and export) |
2000V,one minute |
noise |
≤50dB |
|
Working environment temperature |
-30°C~80°C |
|
humidity |
0~90%, No condensation |
|
Working altitude(m) |
≤5000 |
|
overall dimensions(wide, deep, high mm) |
60*114*160 |
|
RE weight(Kg) |
1 |
|
The wind generator of interface
The rated wind generators total power |
600W max |
Fan rated voltage |
less than 28V/56V |
Protection function
1. The controller has charge of over-current protection function
2. Battery reverse connect protection
3.Battery overcharge protection, firstly, used three-
phase soft brake technology in the industry. (Optional)
4.Includes temperature control system, the controller always runs at low temperatures,
to maximize the life of the controller. (Optional)
Application
1. Stand alone wind power station.
2. Stand alone domestic household wind power system.
3. GSM base stations, expressway and other no-residential regions.
4.Coastal islands, remote mountainous, border posts for regions shortage of or without electricity.
5. Government demonstration projects, landscape lighting project, street light project etc.
