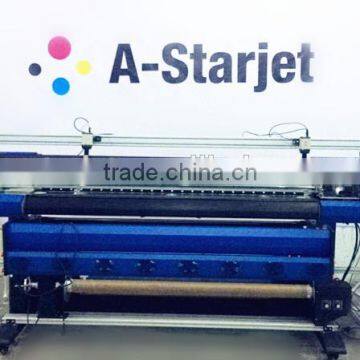

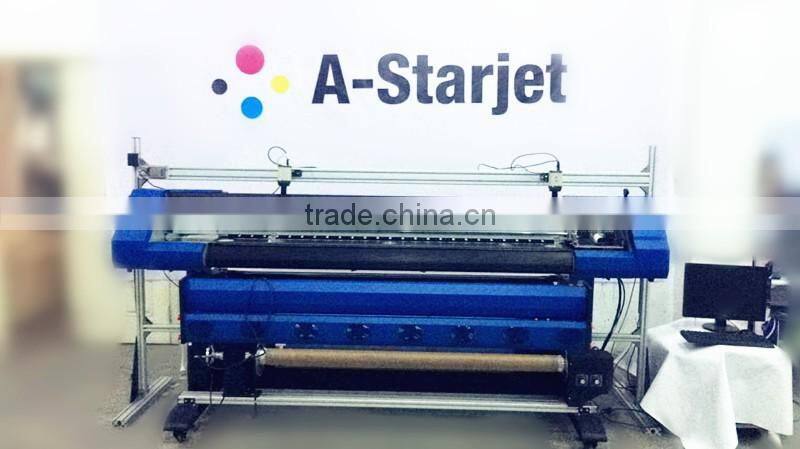

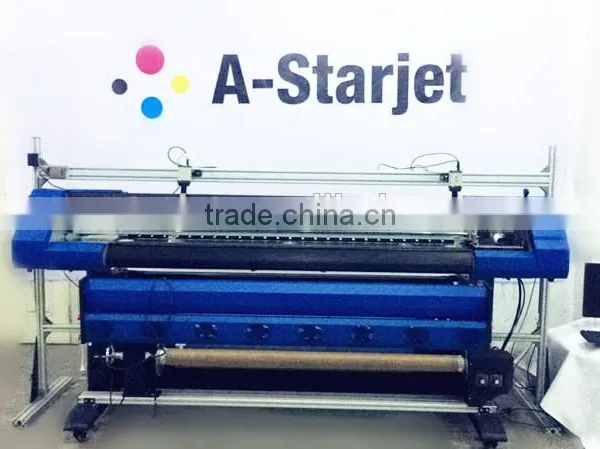

2nd Generation A-Starjet 1.8M Double Sided Printer 77802,
Inkjet Printing Machine
We have all been through the changes of technology, experienced the advantages brought by
technology. Technology makes our life more brilliant. As A-Starjet, we always call ourselves
R&D manufacturer. We ushered our brand new double sided printer, upgraded version which
can do automatic calibration when print on back side of media.
Strong Comparison with Single Side

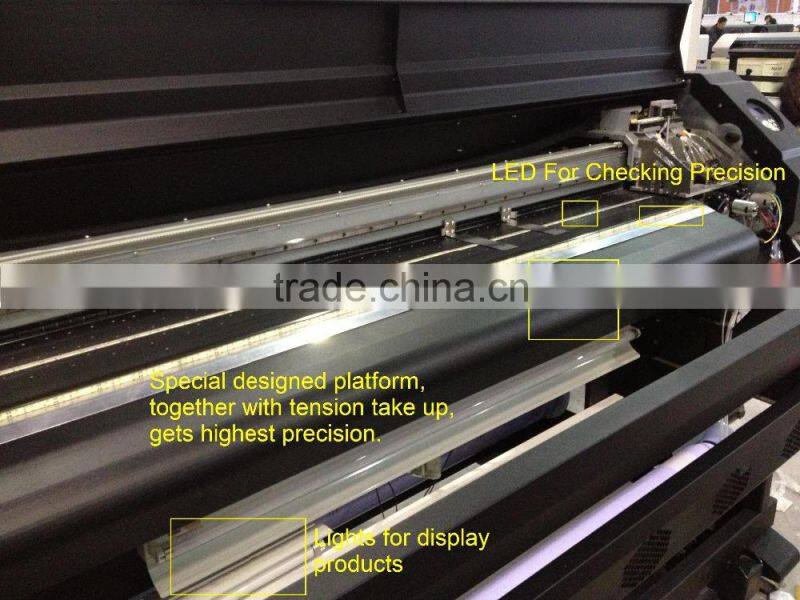

Briefing: A. 1.8m print width with two DX7 print heads. LED lights-- easy to check when print on back side.

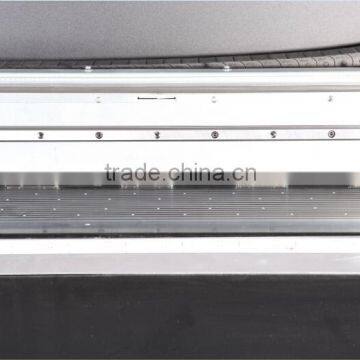

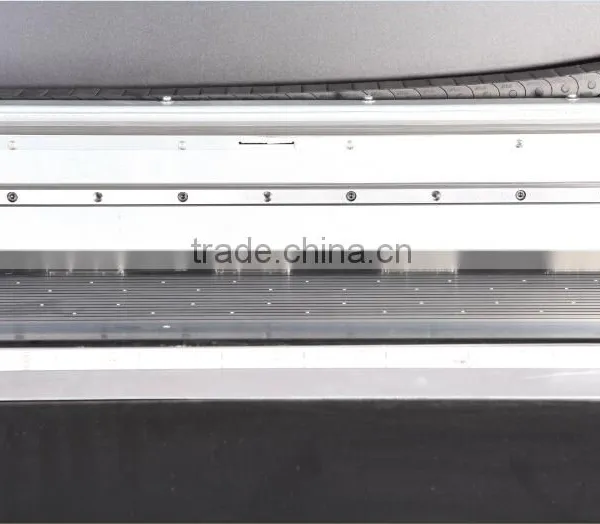

B. Smooth small front plate for easier 2nd sided printing.

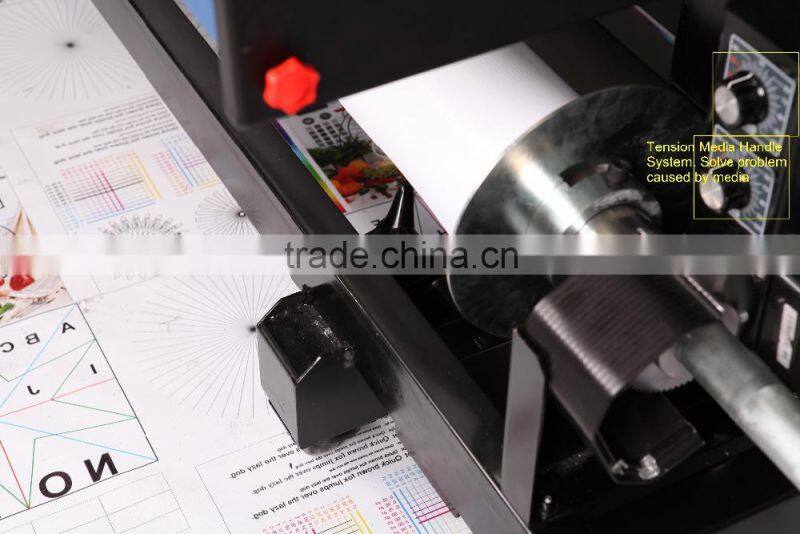

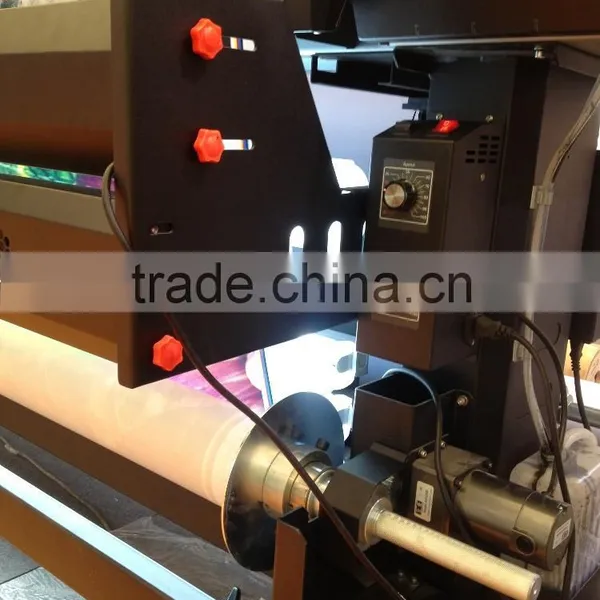

C. We also have modified tension and torque controllable take up system, make media take out more easily. and modified the feeder system to make it suits double sided printing.
Attention:
For 1.8M, the media size we accept is “152cm, 180cm”
Let us know if need special width setting.
Link: https://youtu.be/-pVOpzHL3CE
| Specifications of 77802 Double Sided Printer |
| Item | A-Starjet 77802 | ||||
| Print Head | Two DX7 Drop-on-demand Micro-Piezo Print Heads | ||||
| Number of Nozzles | 2880 nozzels(2 heads) | ||||
| Color | 4 Colors:CMYK | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of Head | 2-5mm | ||||
| Size of Ink Droplet | 1.5-21pl | ||||
| Printing Width | 1800mm | ||||
| Media Width | 1900mm | ||||

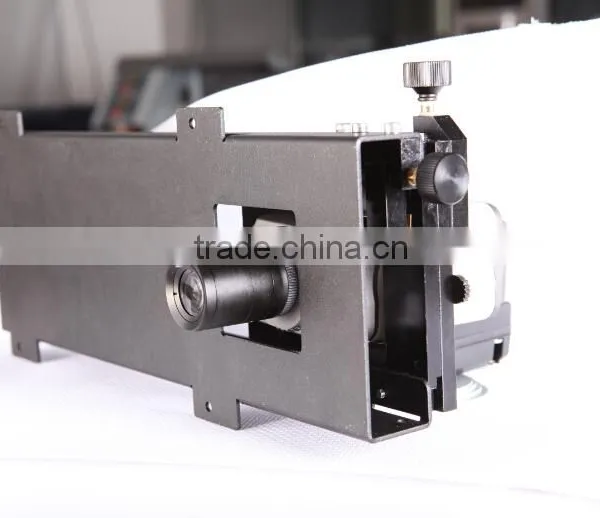

| Real Time Tracking | 2 cameras | ||||
| Print Speed | 2 pass: 49 sqm/hour/side | ||||
| 4 pass: 25 sqm/hour/side | |||||
| Media Feeder | Yes | ||||
| Media Take-up | Yes | ||||
| Payload | 70kgs | ||||
| Heating System | 3-section heaters with PID temperature control | ||||
| Ink | T5.5 eco-solvent ink | ||||
| Ink Cartridge | 8 cartridges | ||||
| RIP Software | Iprint 3.0 (Optional Photoprint, Wasatch) | ||||
| Control Software | iPrint console | ||||
| PC System | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-26℃ ,Humidity:40-60% | ||||
| Printer Dimension |
W2840× D900× H1250mm |
||||
| Packing Dimension |
W2920× D930× H730mm |
||||
| Gross Weight | 380Kgs | ||||
| Advantages of 77802 Double Sided Printer |
1. The most intelligent part of this printer is automatic calibration and correction, carlibration all done by itself. And another advantage of our self-developed software is that it can calculate the maximum print width of your media.
2. Media they all have tension, especial with ink, heating and soon. The seven calibration point on Iprint Console for pre-correction of different media ensure the ultimate fine tune in your very print jobs.
Advanced auto calibration system, it makes 1) print entire roll double side image
2) different image on both sides( hanging scroll)
3) simple and efficient
4) low passes can print at back side
3. Vivid color
It's more and more hard to get people's attraction in the sea of advertising signs. An ultimate weapon to provide the best print quality on indoor/ outdoor backlit sign making, without limitation on size, color and resolution, the last obstacle need to breakthrough to win people's attraction will be art designers' imagination.
A-Starjet 77802 inkjet printer can print vivid color in photo quality without size limitation on post-production by using relatively low cost flex banner to replace backlit film.
4. The replaceable media handle system makes double sided printing more convenient.
To make profits, the 77802 double side inkjet printer not only offers work of art, but also outputs with high efficiency and productivity. The detachable media handle system makes double side printing much easier to operate. Additional pole can be selected for efficiency. Unique tech. supports different pass printing for back side offers more flexibility.

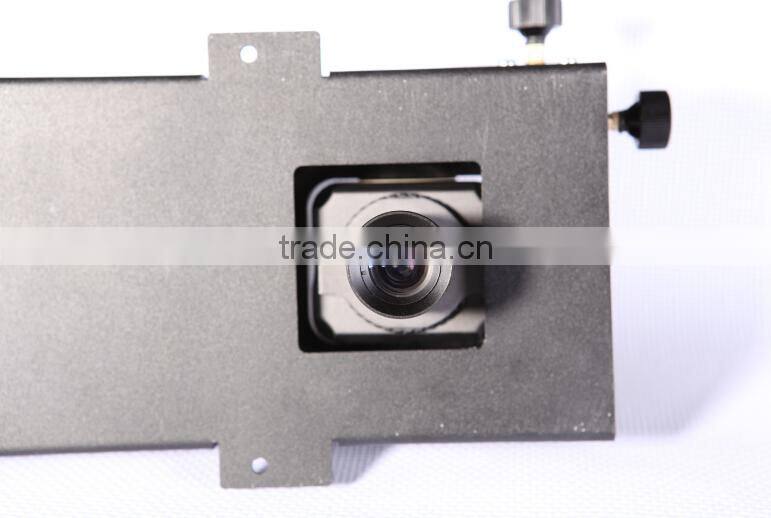

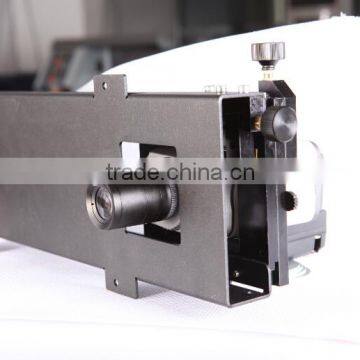

5. Mechanical precision is a critical part for double sided printing. We have done far more than just rely on that, a unique intelligent realtime tracking and correction system has been brought in to ensure the precision. A system which provides almost hand-free operation and even correct manmade error.
1.Why do we need double sided printing?
The end products are mainly for back lighting light box. The double sided light box is more vivid than single side.
Besides, the profit for double sided printing is much higher than single side. The are few affordable double sided printer in the market.
2. What the most important for double sided printing?
The double sided printing is print Image on front, and print mirrored image at back side. When light on, even a slight misalignment can be easily caught. Thus the most important thing is alignment for both side.
The common sense is use mechanical precision to enable double sided printing. It can be done by print both side at same time or print front side first and then refeed again by printer itself to reduce manmade error. This makes the printer more complicate and expensive.
Besides mechanical presion, we also need the characteristics of affordable, effective. We develop a unique system to compensate any potential printer-made or manmade mistake.
3. How we print?
1. Front side printing
It will print 8 marks at each side when print on front side.(Marks with square will be printed at beginning and ending).
It is for back side printing. Mirrored file name is useful when you get mutiple job to print. You can know which file to print back side.
2. Back Side Printing
3 scenario: First case, single sheet, cut it off when print out, flip it over and print mirrored image, start at beginning or at end, all ok.
Second case, several jobs in it. Take the paper core through backside, reload and it can print automatically. We mentioned file name in front side before. It is easy to know which file need be selected and printed.
Third case, after printing, use feeder to reverse the media back, flip paper core over and reload, then print.

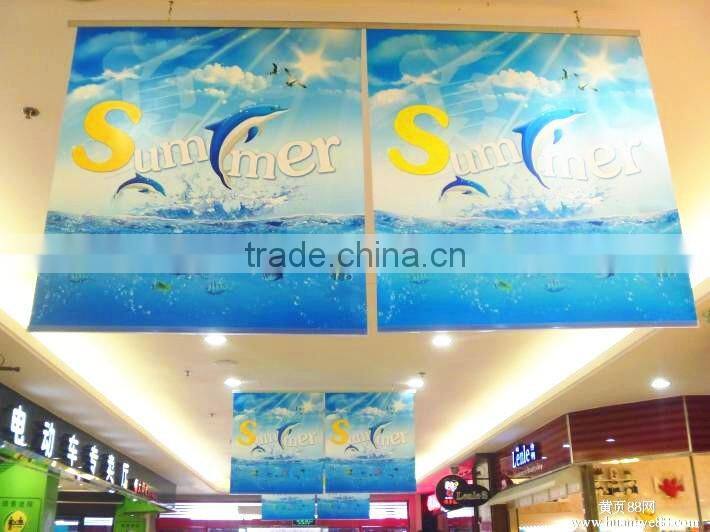

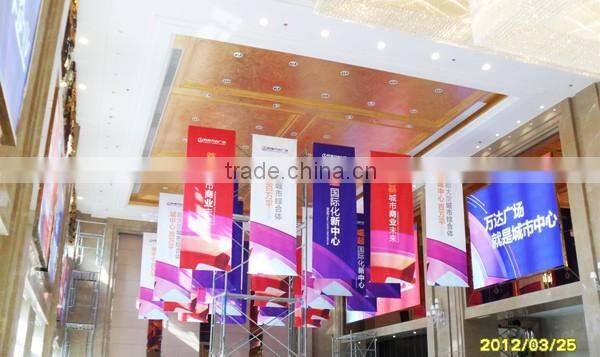

Since our double sided working method is more than simply relied on mechanical presicion, print different image on block-out media, such as super hanging-scroll in shopping mall, is piece of cake.

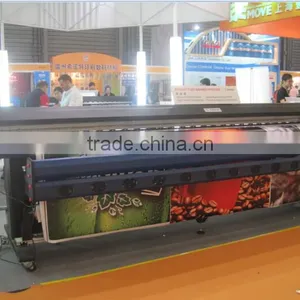

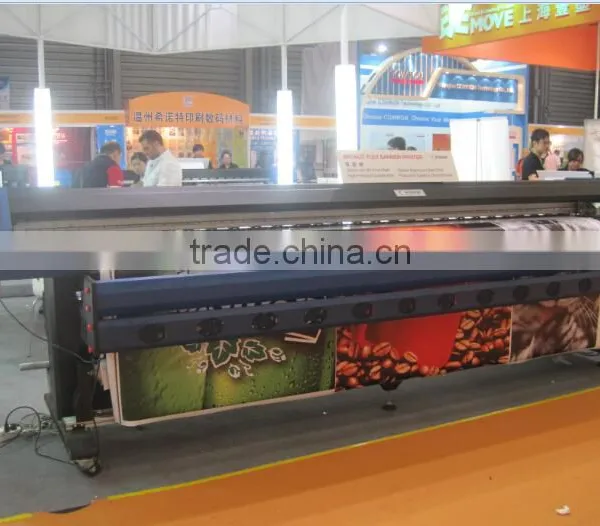

| Gallery of 77802 Double Sided Printer |
| Packing of 77802 Double Sided Printer |
Reasonable Price
- Directly cooperate with R&D factory.
Comprehensive Guatantee Term
- Print heads are guaranteed when A-Starjet ink being used
- Motors are guaranteed for 6 months
- Printer's boards are guranteed for 15 months
- Counting from the day printer leaves factory
- Within guarantee time, send spare parts in advance and we'll cover all the freight
- After guarantee time, repair fee will be charged
Comfortable After-Sale Service
We are a highly efficient and experienced team.
- Online support Skype, Whats app, TeamView, Youtube, etc.
-
Official Service time from Monday to Saturday:
8:30am to 5:30pm(GMT +8), by experienced Engineers/Sale - 24 hours self-service available by Arthur's Youtube channel.
- All printer, parts in stock, able to ship out on any workday.
- Life-time free technical support from A-Starjet factory by engineers who have worked for A-Starjet for 6-7 years.
- Onsite Service is acceptable
