Help CenterAStarjet DX7 Head Printing Machine 7702L Model For Wall Paper
Related Products
-
3.2m DX7 Head Printer AStarjet 7702L Model For Strech Ceiling FilmUS$ 13,000 - 14,000MOQ: 1 Set -
Large Format Printer, Digital Eco-solvent Printing Machine, DX5 Print Head, Advertising Printing MachineUS$ 9,100 - 9,200MOQ: 1 Set
-
Large Format DX5 Eco Solvent Printer A-Starjet, RIP Software for Printing, Photo-Paper, Vinyl Printing, CMYK 4 ColorUS$ 7,370 - 7,380MOQ: 1 Set
-
3.2M AStarjet Inkjet Printer DX5 Eco Solvent Printer With Solvent Inks Printer With Resolution 1440DPIUS$ 11,330 - 11,340MOQ: 1 Set
-
Photo Printer A-starjet 7703 1.8MUS$ 9,100 - 10,000MOQ: 1 Set
Specifications:
| Item | A-Starjet 7702L | ||||
| Print Head | two DX7 print heads | ||||
| Number of nozzles | 1440/Head | ||||
| Color | 4 Colors:KCMY | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of head | 2-5mm | ||||
| Size of ink droplet | 1.5-21pl | ||||
| Printing width | 3200mm | ||||
| Media width | 3300mm | ||||
| Speed | 3 pass | 40.5m2/hour | |||
| 4 pass | 32m2/hour | ||||
| 6 pass | 19m2/hour | ||||
| 8 pass | 13.8m2/hour | ||||
| Feeder/Take up | Yes | ||||
| Payload | 200kg | ||||
| Heating system | Print heater and Post heater with PID temperature control | ||||
| Ink | T5.5eco-solvent ink / ST5.5water-base dye ink / T7reactive printing ink | ||||
| Ink cartridge | Bulk ink supply | ||||
| RIP software | Iprint 3.8.2 Optional(Photoprint&Wastach) | ||||
| Control software | Print console | ||||
| PC system | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃ ,Humidity:40-60% | ||||
| Printer Dimension | W4300× D900× H1250 | ||||
| Packing Dimension | W4500× D980× H700 | ||||
| Gross weight | 550Kg | ||||

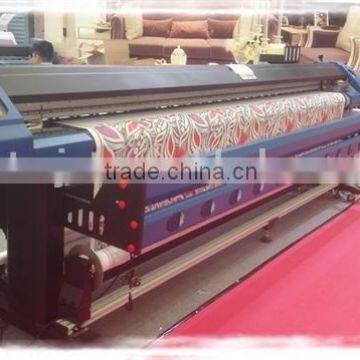

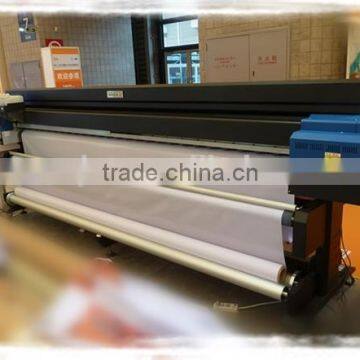

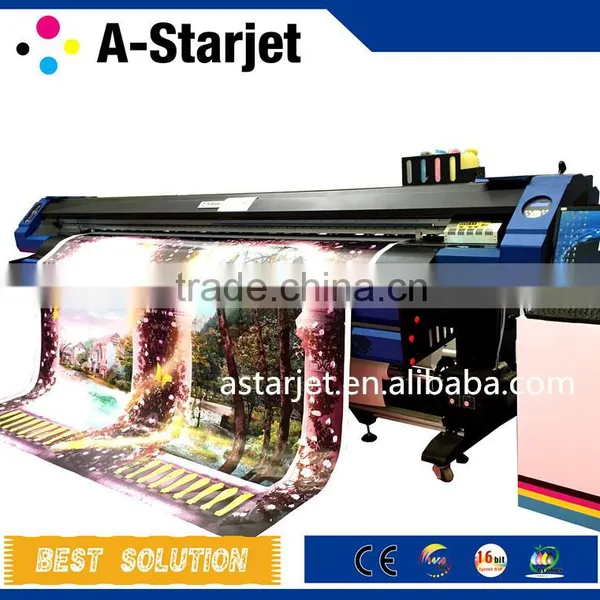

Details of AStarjet 3.2M DX7 Head Wide Format Printer

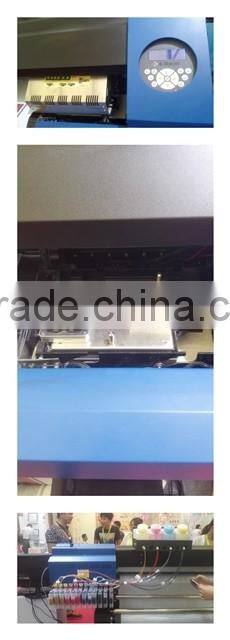

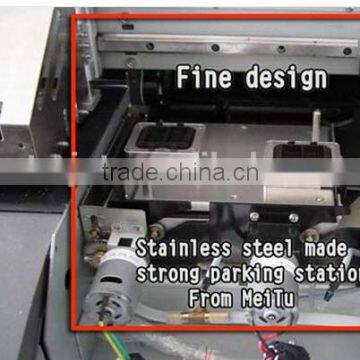

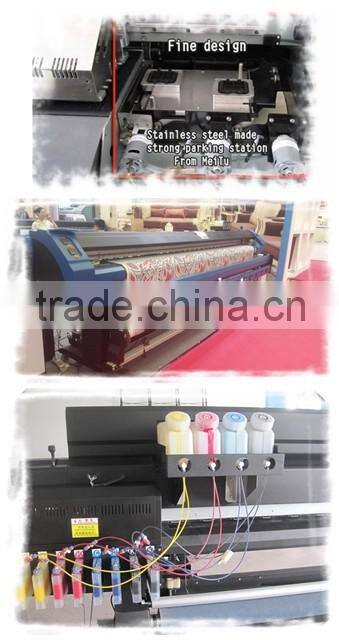

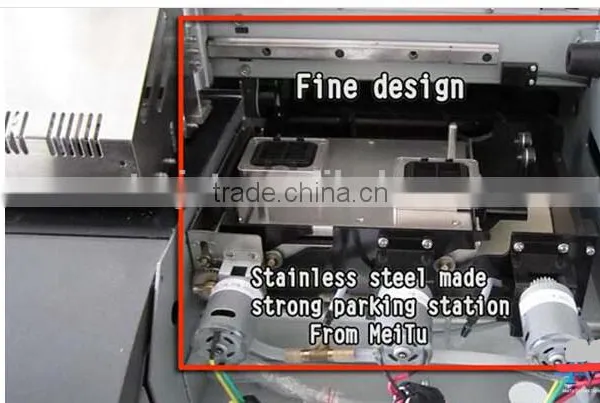

Serve Station Bulk Ink System Control Pad A-Starjet Printer
Samples Print Out By Digital Wall Paper Printer
Print at 4+4 Pass
Description of A-Starjet Printer
1) The DX7 Print Head (F189010) and Printing Technology
a.For DX7(F189010) printer
We are the first one in China who use the print head since four years ago. It’s guaranteed to be a good deal. We are the one you are looking for.
DX7 head can take voltage than DX5 head, faster than DX5 speed and smaller inkdrop. DX7 can take higher voltage which means the ink drop is relatively smaller, so the printing color is more vivid than DX5. Moreover, DX7 is about 15% faster than DX5.
While a lot of manufacturers only use DX5 head. And only R&D manufacturer can play with it. That is also a reason some distributors think DX5 is better, even they don’t use DX7 head.
(((A-Starjet 7 series are launched on 2011. The printer uses Epson DX7, as known as F189000.
After 3 years using Epson DX5 and as the first eco-solvent printer manufacturer in China, we
need to separate us from those copy cats.
That's also one of the reason why we are the first one who use DX7, F189000. The ironic part is
lots of resellers still sitck on DX7 while it's price is more than USD1,250(Oct, 2015) and claim
DX5 is better than DX7. Man, we can use DX5 and we can use DX7. We provide solution and it
is the client who make the call.)))
b.Dual Print Head Design
The technology of two print heads is one mature technology that we have brought out to the market in the early stage for years. Now the product with two DX7 print heads will definitely replace the previous printers which use DX5 print heads.
2) 3.2m Super-Wide Print Width
Not only can meet the demand of regular printing, but also accepts the special order of super-wide size to expand the business range. Super-wide inkjet printer can use in textile and other special fields, and the precision of micro piezo heads is much better than common solvent printers.
3) Expertise on High Precision Large Format Printer Manufacturing
We put high precision 3.2m super-wide photo printer in mass-production for years, and this series of printer is very mature and stable products of GENEX. Thus our company becomes one of the rare factories can manufacture 3.2m super-wide photo printer in the world. It is totally under- estimated if you think it can only print several rolls of media at the same time. This beast can meet various demand of special markets and far beyond your imagination, its uniqueness is the guarantee of your profit and fortune.

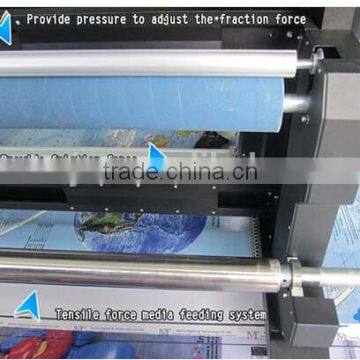

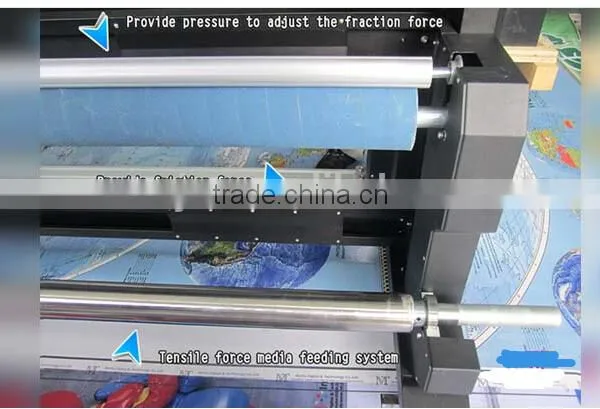

4) Comprehensive Media Handling
The standard media handling includes the automatic feeding & take-up system that can load up as heavy as 200kgs. The heating system and hot air drying system which can now easily print on flex banner and diversify media.
5) Software - our own Iprint RIP softeware is optional
We develop our own RIP system called Iprint.
Advantages of using Rip:
a.We have ability to creat own Rip according what we need.
b.We can upgrade Rip to fulfill clients’ requirement.
At the same time, there are optional photoprint, Onyx,Wasatch.Maintop.
c. We use dongle(sth like USB flash) to let user start the software.
Why Choose A-Starjet
a. Reasonable Price
l Directly cooperate with R&D factory.
b. Comprehensive Guarantee Term
l Print heads are guaranteed when A-Starjet ink being used
l Motors are guaranteed for 6 months
l Printer's boards are guranteed for 15 months
l Counting from the day printer leaves factory
l Within guarantee time, send spare parts in advance and we'll cover all the freight
l After guarantee time, repair fee will be charged
c. Comfortable After-Sale Service
l Online support such as Skype, Whats app, TeamView, Youtube, etc. Online Service is acceptable. Official Service time from Monday to Saturday:
8:30am to 5:30pm(GMT +8), by experienced Engineers/Sale
l 24 hours self-service available by Arthur's Youtube channel.
l All printer, parts in stock, able to ship out at any time.
l Life-time free technical support from A-Starjet factory by engineers who have worked for A-Starjet for 6-7 years.

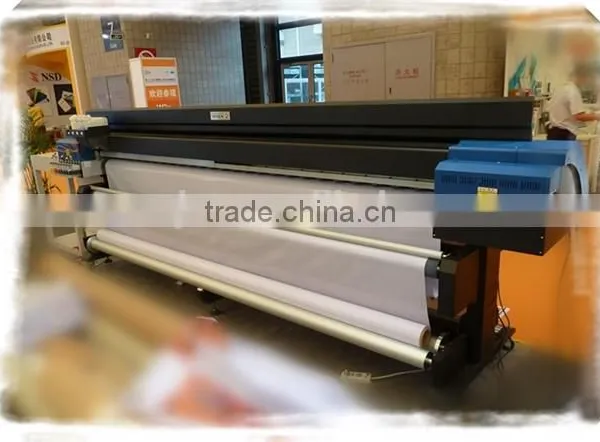

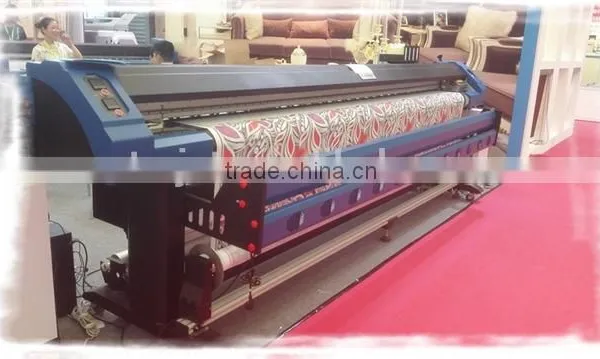

Exhibitions for our A-Starjet Printer
Packing of A-Starjet Printer
