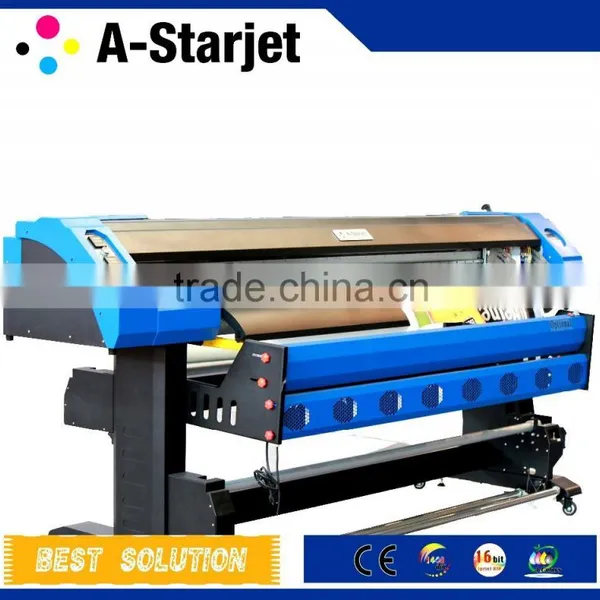

1.A-Starjet 5.0 Large Format Printing Machine:
High Performance, High Quality Eco-Solvent Printers
A-Starjet 5.0 inkjet printing machines go beyond extraordinary to deliver an awe-inspiring range of applications and versatility. Gamut-extending eco solvent inks enable you to accomplish anything from fine art reproduction,
wall décor and stunning backlits, to vehicle wraps and outdoor displays. Using the
A-Starjet 5.0 inkjet printing machines’ superb quality, color fidelity, throughput and flexibility you’ll
go beyond the expected to capture more wallet share and deliver whatever your customers can imagine.
2. A-Starjet 5.0 Eco-solvent Printing Machine
Go Beyond Conventional
§ Speeds up to 12 SqM per hour
§ High quality print resolution of up to 1,440 dpi
§ 1.8M printing width
§ Eco-solvent ink: it is ecofriendly, the smell of the ink is light which is suitable to
use the printing media in indoor and outdoor both.
§ Optional IR heater
Description of A-starjet DX5:
1. Micro Piezo Printing Technology
2. Variable Ink Droplets Technology
3. Progressive Pass Compensation Technology
4. Stochastic Ink-droplet Distribution
5. High printing precision,high stability with competitive price
6. New Mechanical Structure
7. USB 2.0, Bundled with RIP
8. Wide Range of Media Compatibility
9. Easy to Maintain & Easy to Use

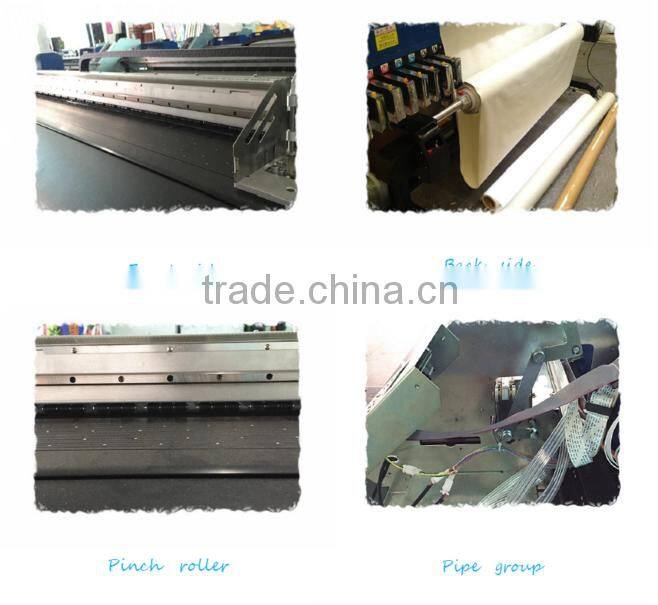

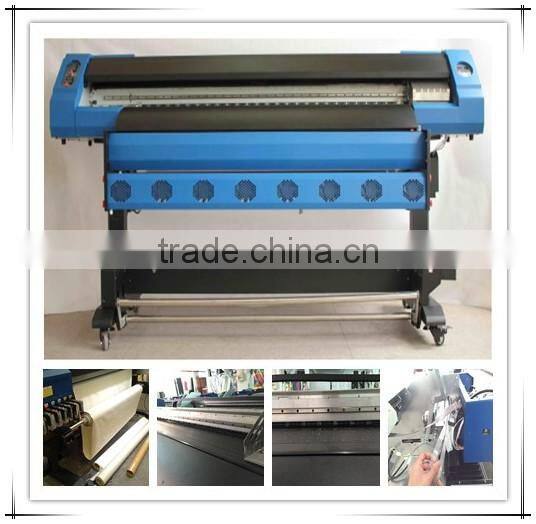

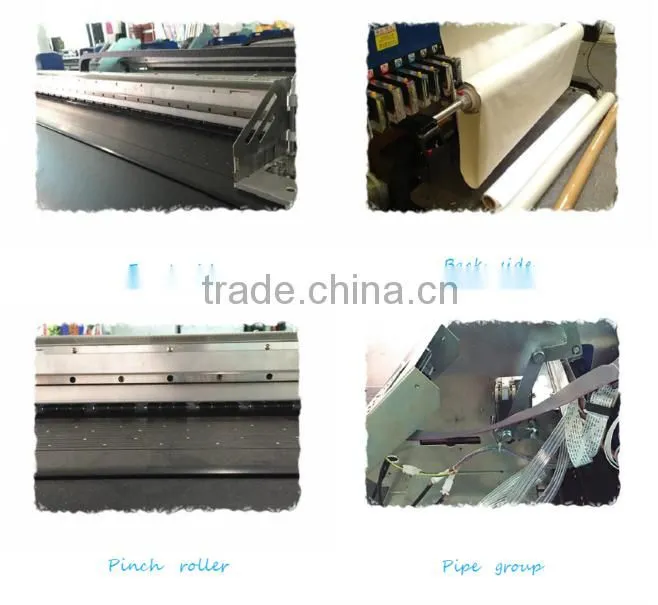

3. Details of 1.8m DX5 Eco-solvent Printing Machine
| Item | A-Starjet 5.0 Printing Machine |
| Printing Technology | DX5 micro piezo technology |
| Print Head | One DX5 drop-on-demande micro piezo print heads |
Number of Nozzles |
1440 Nozzles |
Ink Color |
4 Colors:Cyan, Magenta, Yellow, Black 8 Colors: Custom Defined (TBE) |
Resolution |
1440dpi(max) |
Height of Print Head |
2-5mm |
Size of Ink Droplet |
1.5-21pl |
Printing Width |
1.8m |
Media Width |
74.8"1900mm(max) |
Speed |
Production mode: 129 sq.ft.(12 sqm)per hour |
Standard mode: 83 sq.ft.(7.7 sqm)per hour | |
Photo mode: 61 sq.ft.(5.7 sqm)per hour | |
Media Take up |
Automatic Take-up System(optional) |
Media Feeder |
Automatic feeder |
Media Type |
Self-adhesive paper, PVC, mesh fabric, textile, PVC flex banner, adhesive vinyl, photo paper, PP, backlit film, canvas, non woven fabric, PU leather, micro fibre, leather, etc. |
Media Payload |
200kgs(max) |
Heating System |
The heaters for front and rear platform separately. PID temperature control Temperature range: room temperature to 80℃ |
Drying System |
External fans |
Ink Type |
Eco-solvent pigment ink, eco-solvent dye ink, water-based dye ink, sublimation ink |
Ink Cartridge |
8 × 350ml Cartridges |
RIP Software RIP |
IPrint 3.0(English version) |
Supported image format: TIFF, JPEG, and other common image formats | |
Postscript file process(optional) | |
Control Software |
A-Starjet control software(English version) |
Interface |
USB port ver2.0 |
Power Voltage |
AC 110-220V 50-60Hz or 220-240V 50-60Hz |
Printer Dimension |
W2840*D900*H1250mm( bracket included ) |
Packing Dimension |
W2920*D930*H730mm( bracket included ) |
Net Weight |
220KGS( bracket included ) |
Gross Weight |
300KGS( bracket included ) |
5. What you can do with the
1.8m DX5 Eco-solvent Printing Machine
With eco solvent inks:
- Signage
- Vehicle graphics
- Point-of-purchase displays
- Banners
- Posters
- Exhibition graphics
- Window clings
- and more…
6. Highlights of 1.8m DX5 Eco-solvent Printing Machine
- Print Head:1 pc Epson DX5 print head, each print head has 1440 nozzles. Currently we have decrypted encrypted DX5 print heads so we can guarantee the supply of DX5 print heads.
- Printing Width: the maximum width can be up to 1.8M / 60 Inch.
- The only step need for adjust the print heads is to insert the print head into the carriage. It doesn’t need to be adjusted for several times and dairy maintenance is quite easy and can be learned quickly.
- Eco-solvent ink: it is eco-friendly, the smell of the ink is light which is suitable to use the printing media in indoor and outdoor both.
- Competitive price can be available.
- Short lead metimes after about 7days we will arrange the shipment when order confirmed.
- After-sales service can be supported.our engineers are always online and willing to reply you any question about our printers,butalso they are available to go to your factory to teach you how to use our printers and keep our printers properly.

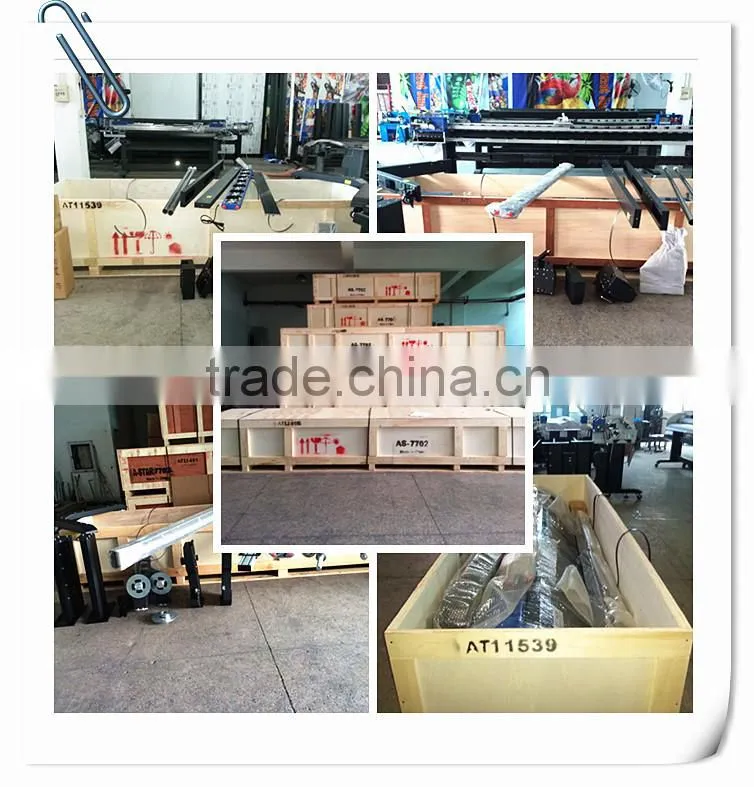

7. Packing of DX5 1.8m Eco-solvent Printing Machine
Reasonable Price
- Directly cooperate with R&D factory.
Comprehensive Guatantee Term
- Print heads are guaranteed when A-Starjet ink being used
- Motors are guaranteed for 6 months
- Printer's boards are guranteed for 15 months
- Counting from the day printer leaves factory
- Within guarantee time, send spare parts in advance and we'll cover all the freight
- After guarantee time, repair fee will be charged
Comfortable After-Sale Service
We are a highly efficient and experienced team.
- Online support Skype, Whats app, TeamView, Youtube, etc.
-
Official Service time from Monday to Saturday:
8:30am to 5:30pm(GMT +8), by experienced Engineers/Sale - 24 hours self-service available by Arthur's Youtube channel.
- All printer, parts in stock, able to ship out on any workday.
- Life-time free technical support from A-Starjet factory by engineers who have worked for A-Starjet for 6-7 years.
- Onsite Service is acceptable

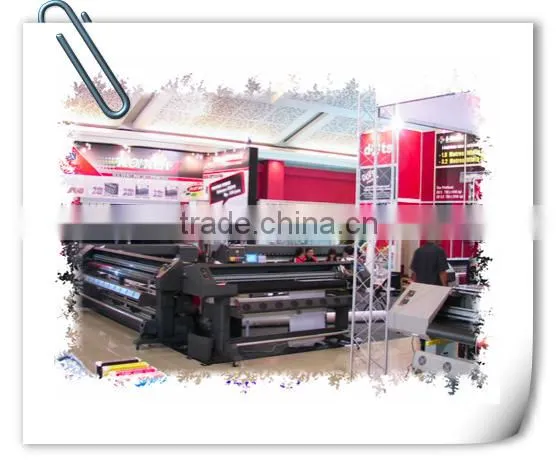

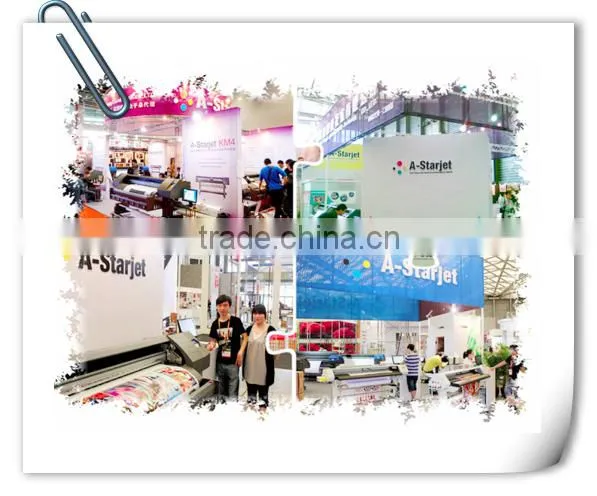

We have expos in Shanghai, Guangzhou, Dubai, Italy, Indonesia..............
Shanghai
Guangzhou
Indonesia
Great products with awesome quality!
You deserve it!
