Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > OMT Hydraulic Motor / M+S EPMT / Eaton 4K 6k Hydrualic Orbital Motor
OMT Hydraulic Motor / M+S EPMT / Eaton 4K 6k Hydrualic Orbital Motor
US$ 120 - 160
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Type:
Hydraulic Motors
Model Number:
OMT Hydraulic Motor
Brand Name:
tpf
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BGM Series Italy Hydraulic Motor for SAM HYDRAULICUS$ 50 - 70MOQ: 20 Pieces -
BMR Series Shaft Distribution Flow of Reliable Quality Gerolor Gear Set Orbital Hydraulic MotorUS$ 60 - 76MOQ: 20 Pieces
-
OMP Series With Needle Bearing and Low Leakage Gerotor Orbital Hydraulic MotorUS$ 50 - 80MOQ: 20 Pieces
-
BMR-BK01 Bulit-in Integrated Dynamic Holding Brake Hydraulic Motors Brake B/MRUS$ 60 - 76MOQ: 20 Pieces
-
MS Disc Valve Motor Compact in Design With Disc Valving and Roller Type Stator and Rotor Hydarulic MotorUS$ 95 - 145MOQ: 10 Pieces
Type
Hydraulic Motors
Model Number
OMT Hydraulic Motor
Brand Name
tpf
Place of Origin
Jiangsu, China

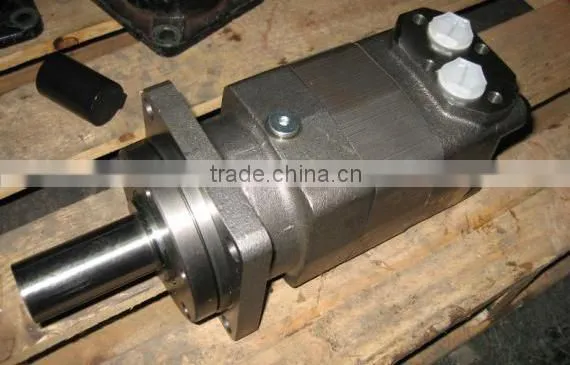

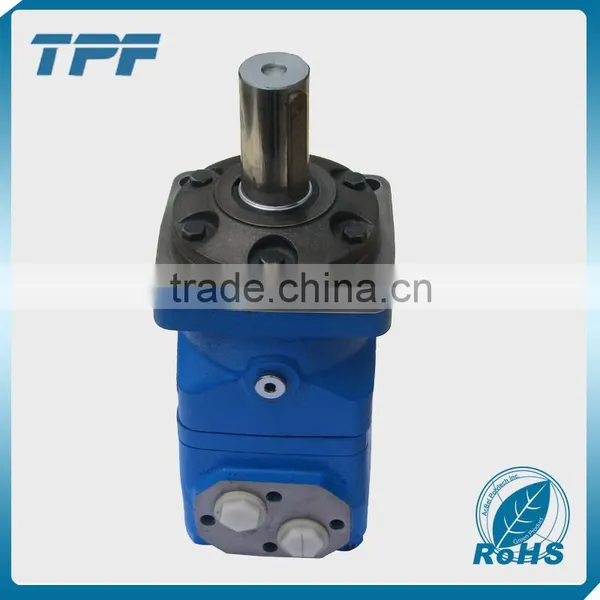

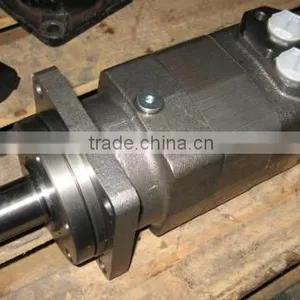

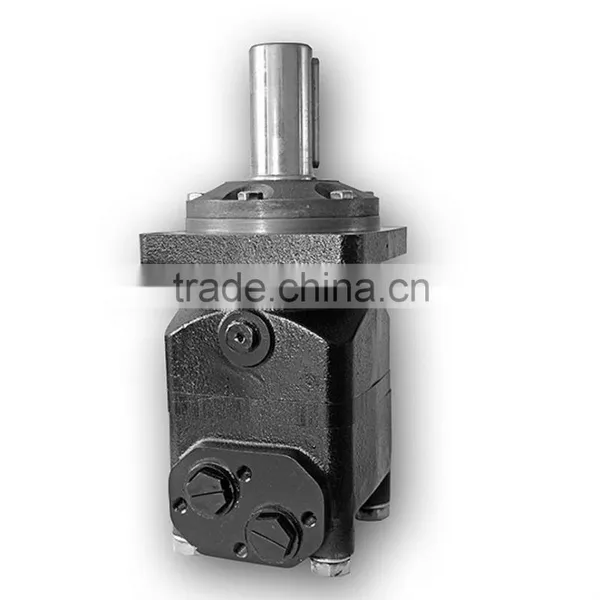

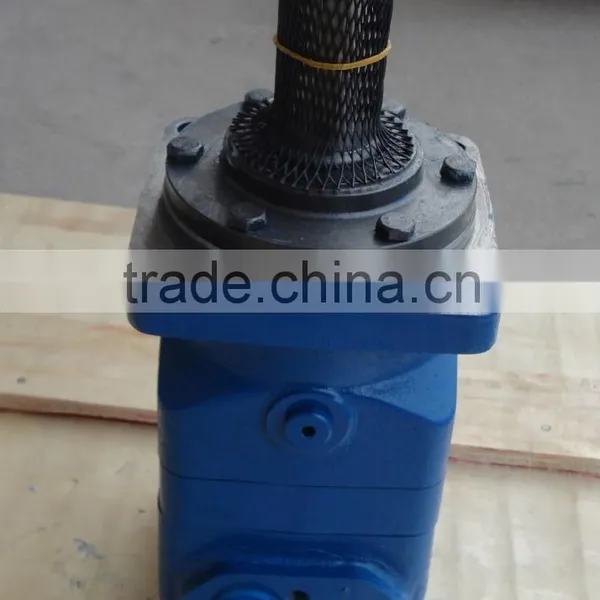

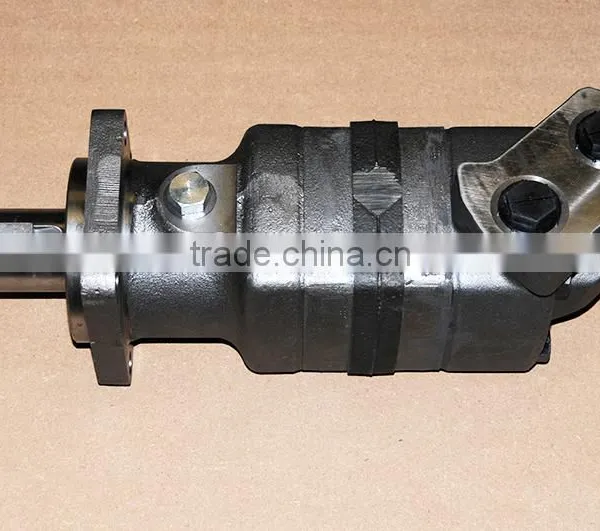

OMT Hydraulic Motor / M+S EPMT / Eaton 4K 6k hydrualic Orbital Motor
The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, provide smooth and reliable operation and high efficiency,it’s higher bearing capacity than BMS series .
One type of LSHT motor,which can replace Danfoss OMT hydraulic motor/M+S EPMT /Eaton4k 6k hydraulic orbital motor
| Type | BMT 160 |
BMT 200 |
BMT 230 |
BMT 250 |
BMT 315 |
BMT 400 |
BMT 500 |
BMT 630 |
BMT 800 |
||
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | ||
| Max. speed (rpm) |
cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 | |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | ||
| Max. torque (N• m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 | |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | ||
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | ||
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 | |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | ||
| ure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 | |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | ||
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | ||
|
rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | ||
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | ||
| Max. inlet pressure (Mpa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | ||
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | ||
