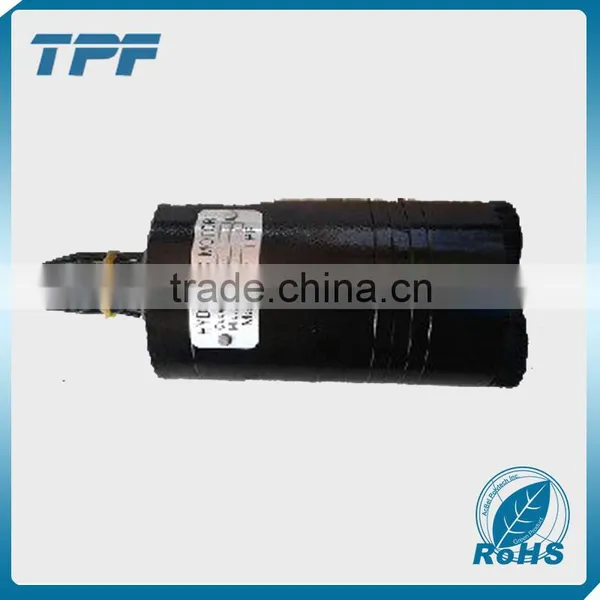

BGM Series Italy Hydraulic Motor for SAM HYDRAULIC
US$ 50 - 70
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Type:
Hydraulic Motors
Model Number:
BMM
Brand Name:
tpf
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BMR Series Shaft Distribution Flow of Reliable Quality Gerolor Gear Set Orbital Hydraulic MotorUS$ 60 - 76MOQ: 20 Pieces -
OMP Series With Needle Bearing and Low Leakage Gerotor Orbital Hydraulic MotorUS$ 50 - 80MOQ: 20 Pieces
-
BMR-BK01 Bulit-in Integrated Dynamic Holding Brake Hydraulic Motors Brake B/MRUS$ 60 - 76MOQ: 20 Pieces
-
MS Disc Valve Motor Compact in Design With Disc Valving and Roller Type Stator and Rotor Hydarulic MotorUS$ 95 - 145MOQ: 10 Pieces
-
BMSE Series Eaton 2000 Sereis 104-xxxx-xxx Geroler Orbit Hydraulic MotorUS$ 90 - 130MOQ: 10 Pieces
Type
Hydraulic Motors
Model Number
BMM
Brand Name
tpf
Place of Origin
Jiangsu, China
BGM series italy hydraulic motor for SAM HYDRAULIC
BMM series motor can replace BGM seires italy hydraulic motor for SAM hydraulic ,which are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.
| Type | BMM | BMM | BMM | BMM | BMM | BMM | |
| 8 | 12.5 | 20 | 32 | 40 | 50 | ||
| Displacement (cm3/rev.) | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max. speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| Max. torque (N•m) | int. | 15 | 23 | 35 | 57 | 70 | 88 |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
|
Max. output (k W) |
cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max. pressure drop (MPa) | cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max. flow (L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight (kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Option: | Application: | |
| - Model - Spool valve, gerotor; | *Conveyors | |
| - With or without flange; | *Textile machines | |
| - Side and rear ports; | *Machine tools | |
| - Shaft - straight and splined; | *Mining machinery | |
| - Flange-circle or Rhomb flange | *Construction plant equipment | |
| - Three ports - Metric /UNC and BSPP; | *Access platforms | |
| - Color-Blue, grey ,black ,yellow |
We can produce hydraulic motor which replace Danfoss OMM .
| OMM | ||||||
| Displacement (cc) | ||||||
| Code | 8 | 12.5 | 20 | 32 | 40 | 50 |
| 151G | 151G-0040 | 151G-0001 | 151G-0002 | 151G-0003 | 151G-0277 | 151G-0037 |
| 152G | 151G-0041 | 151G-0004 | 151G-0005 | 151G-0006 | 151G-0279 | 151G-0013 |
| 153G | 151G-0048 | 151G-0031 | 151G-0032 | 151G-0033 | - | 151G-5032 |
| 154G | 151G-0049 | 151G-0034 | 151G-0035 | 151G-0036 | - | 151G-0094 |
| 155G | 151G-0046 | 151G-0024 | 151G-0025 | 151G-0026 | - | - |
| 156G | 151G-0047 | 151G-0027 | 151G-0028 | 151G-0029 | 151G-0294 | - |
All of above code ,our BMM series motor can replace them .Welcom to enquiry .
