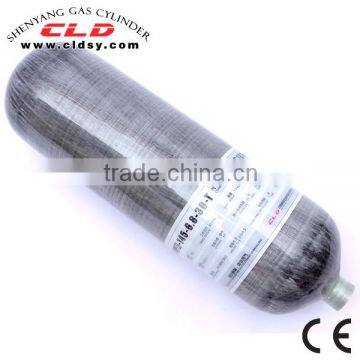

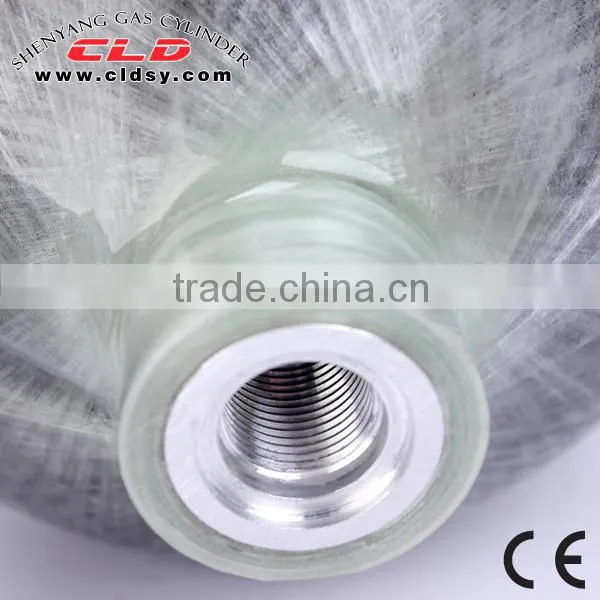

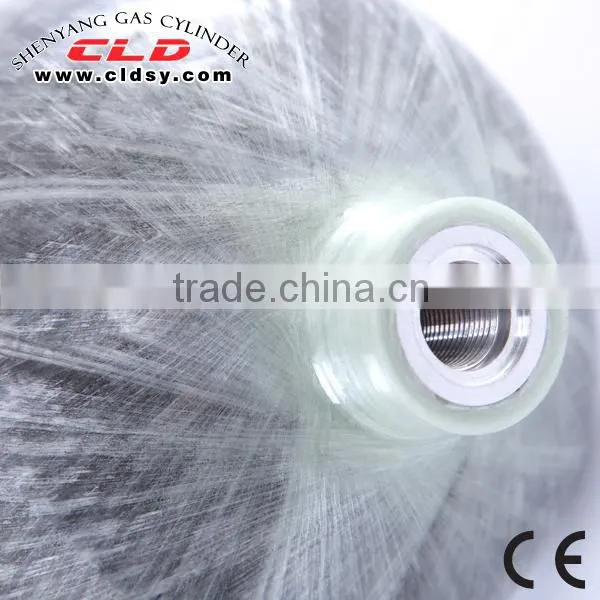

gas cylinder,CNG cylinder,Cylinder,Oxygen Cylinder,seamless cylinder,filament winding machine

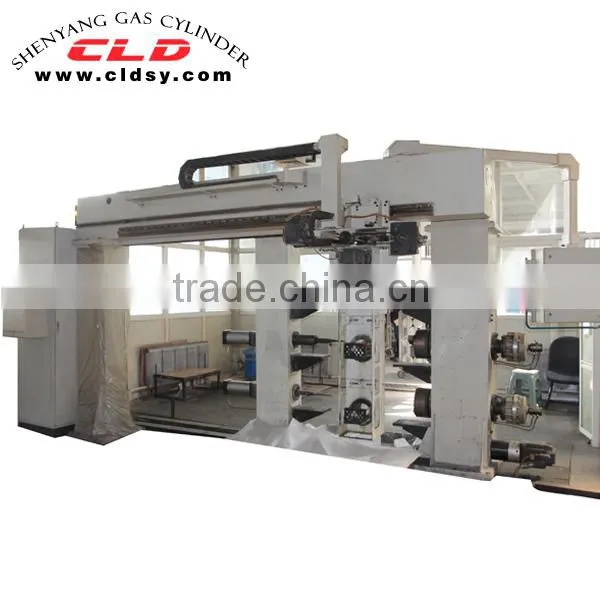

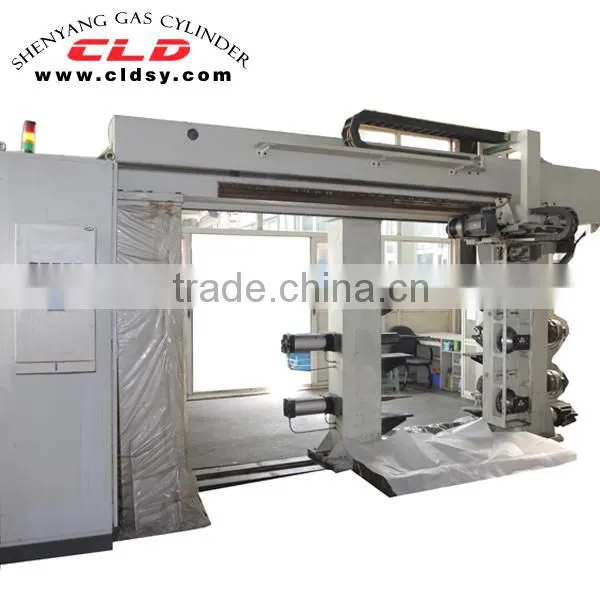

CRJ06 Numerical Control Four-Dimensional
Three Working-Position Dragon-Door Type Winding Machine
A1. FILAMENT WINDING MACHINE TECHNICAL SPECIFICATION
1. Type filament winding machine
2. Number of Spindle Three
3. (a) Maximum winding diameter 420mm
(b) Minimum winding diameter 50mm
(c) Maximum winding length 2000mm
(d) Maximum weight per mandrel 200kgs
4. No. of Control axes Four
5. Winging angle 0-90°
6. Yarn volume 30
7. Winding speed Spindle X: 0-250 rpm
Trolley Y: 0-50 meters/minute
Arm thrust Z: 0-30 meters/minute
Swinging head U: 0-100 rpm
8. Fiber Delivery Speed 60 meters/minute
9. Control System Siemens 840D
X axis motor 27 Nm, reducer 1:12
Y axis motor: 16 Nm, reducer 1:10
Z axis motor: 8 Nm,
U axis motor: 6 Nm, reducer 1:10
* With air-conditioned sealed electric control cabinets
* All motors & drives including spindle drive will be of SIEMENS make
10. Control panel
11. Mechanical Transmission X-axis toothed belt pair's transmission
Y-axis Linear Motion Ball Guide, rack drive
Z-axis Linear Motion Ball Guide, Ball screw drive
U-axis toothed belt pair's transmission
12. Clamping technique Pneumatic Clamping
13. Winding software Windsoft

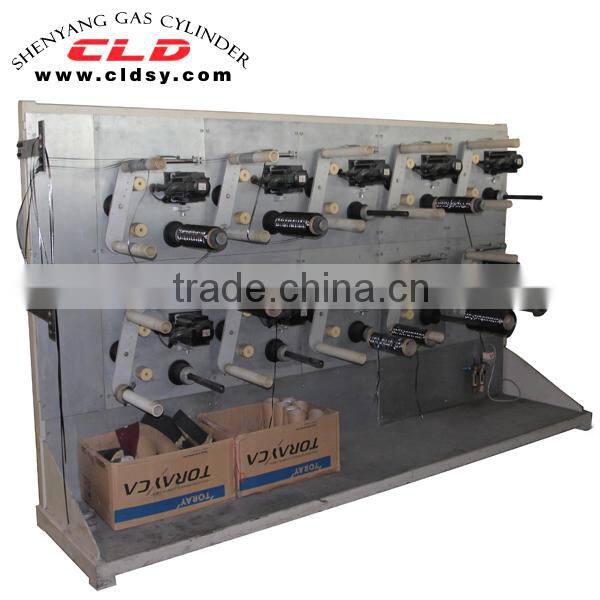

13. Number of Electronic Tensioner 30 pcs (10 per Spindle)
a) Tensioner Control system by PLC
b) Servo Motor Control (Dasen)
c) Air-conditioned sealed electric control cabinets
d) Low frictions cylinders structure, toothed belt pair's transmission
14. Drum Type Roller Reisin Bath 60 rovings
a) Heating device, the temperature ranges from 30 - 60 digital display
b) Stainless steel dipping groove
