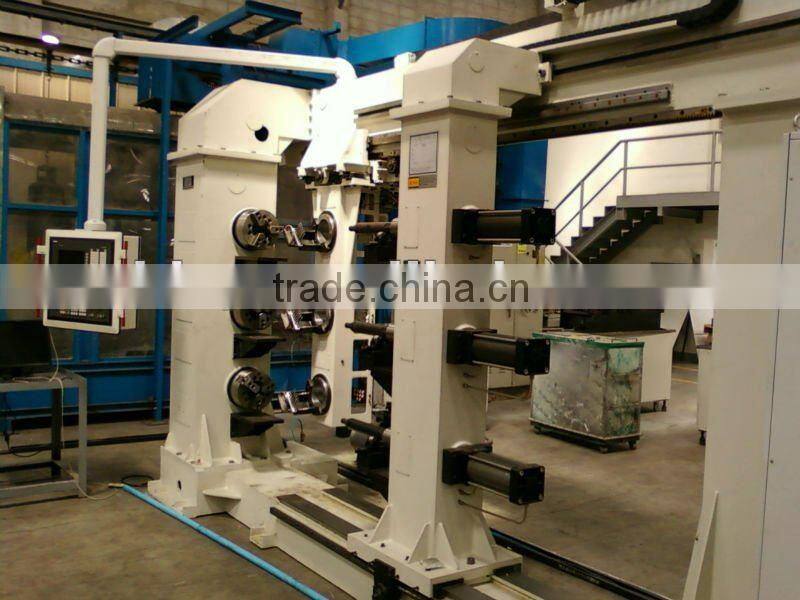

Automatic Composite Filament Winding Machine 2015Model
US$ 200,000 - 400,000
MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
CLD
Model Number:
CRJ06
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Composite Filament Winding Machine 2015 ModelUS$ 200,000 - 400,000MOQ: 1 Unit -
Winding Machine 2015 ModelUS$ 217,741 - 217,741MOQ: 1 Set
-
Four-dimensionalilament Winding MachineUS$ 200,000 - 300,000MOQ: 1 Unit
-
Winding MachineUS$ 200,000 - 240,000MOQ: 1 Set
-
Winding Machine 2016 New ModelUS$ 200,000 - 240,000MOQ: 1 Set
Place of Origin
Liaoning, China
Brand Name
CLD
Model Number
CRJ06
Condition
New
The four-dimensional multi-positioned automatic winding machine is developed, designed and manufactured by our company. The winding machine has a multiple alternative tension control system. It provides high stability and reliability. The high-precision and high-speed winding process is controlled automatically by software and the four shafts work together. The winding line types include helical line, hoop line, dwelling line, polar line and zero line. This machine employs advanced technology to provide a high degree of automation. Yet, it is easy to operate and convenient to service and maintain. The level of technology in this machine is the most advanced among the same type of products.
| Winding diameter | 300mm-700mm | Resolving power of main shaft and winding head | 0.3’/pulse |
| Winding length | 2000mm | Location precision | 0.03mm/300mm |
| Winding angle | 0°~90° | Repeated location precision | ≤0.01mm |
| Winding precision | ±0.2mm | Control system: adopt Siemens CNC system, digital AC servo motor | |
| Tension control | 3-50N | Coordinate control: four coordinates work together , main shaft and other feed coordinate are controlled by velocity and location | |
| Range of winding head swinging angle | 180° | Winding line types: helical, hoop, dwelling, polar and zero line | |
| Winding head rotate speed | 0-100r/min | Winding core formwork: cylindrical, orbicular and tapered core formwork, and combined core formwork | |
| Main shaft rotate speed | 0-120r/min | Tension control: user can choose mechanical, electrical or computer control | |
| Max yarn speed | 100m/min | Type of fiber: carbon fiber, glass fiber, etc | |
