High Quality 2G 3G 4G LTE Wifi Module Price
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Newsky/OEM
Model Number:
LM111C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable 100Mbps Download Speed Sim Card Slot LTE RouterUS$ 28 - 40MOQ: 1 Piece -
Wireless WiFi Router Repeater WLAN 300Mbps 802.11Network Range Extender BoosterUS$ 10 - 15MOQ: 1 Piece
-
300Mbps Network Router Range Expander EU Plug Wireless-n/g/b Wifi Repeater 802.11NUS$ 10 - 15MOQ: 1 Piece
-
802.11n/g/b 300M EU Plug Router Network Wireless-N Wifi RepeaterUS$ 10 - 15MOQ: 1 Piece
-
Wireless Dual Sim Card Slot Home/soho Wifi Router no PasswordUS$ 45 - 70MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Newsky/OEM
Model Number
LM111C

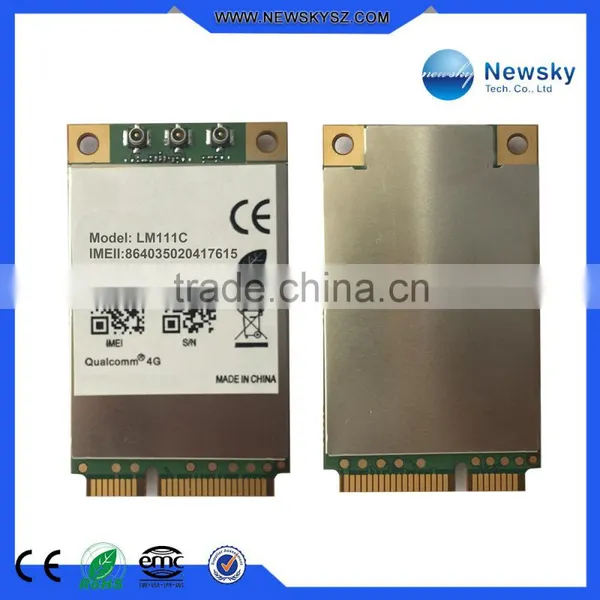

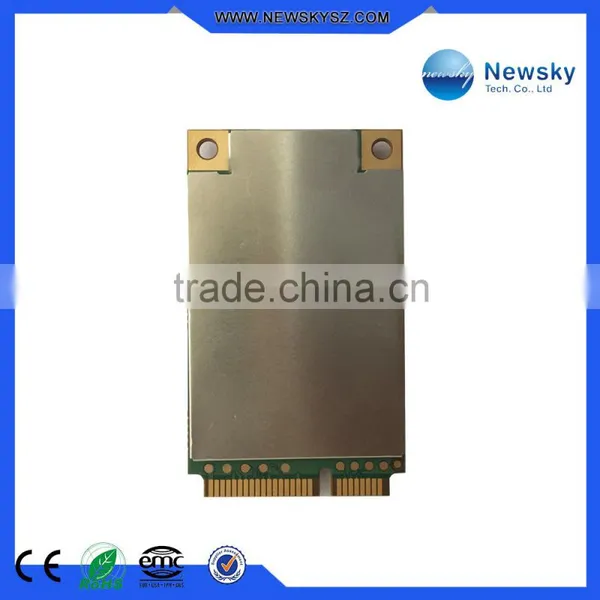

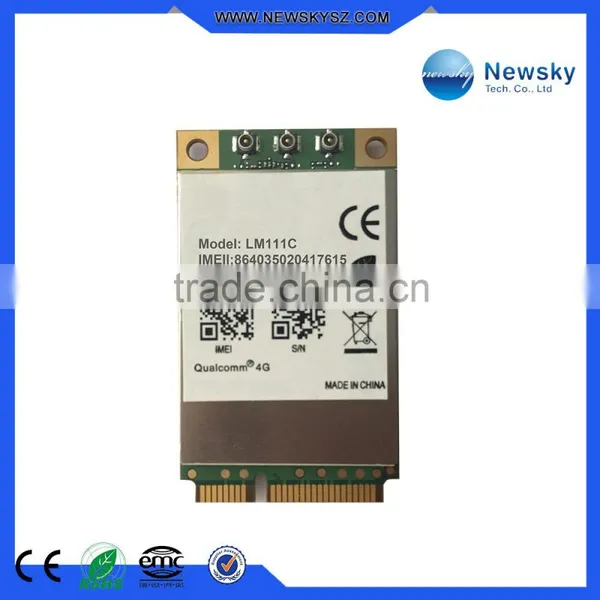

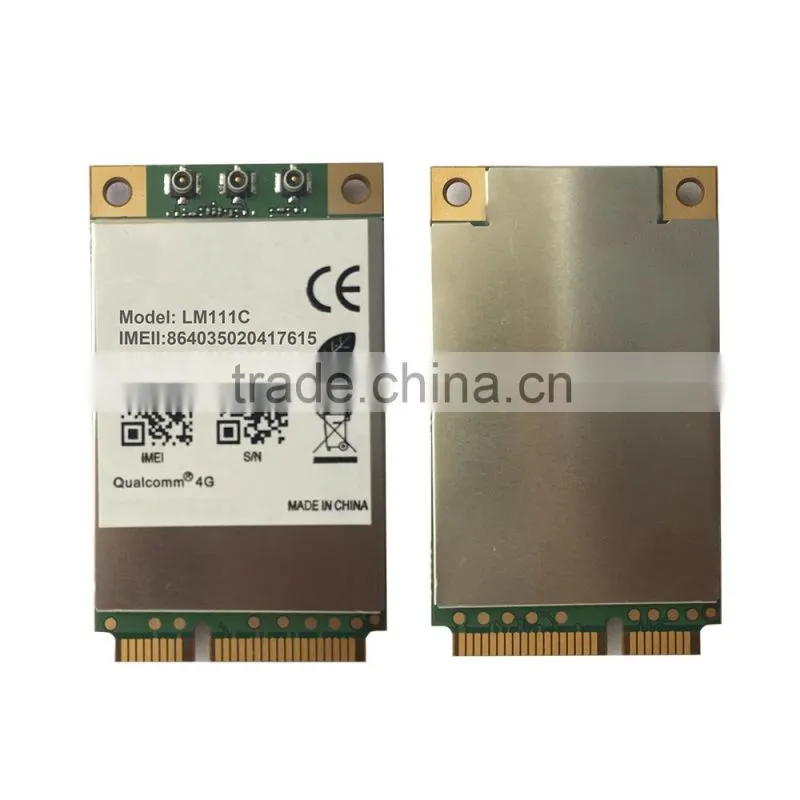

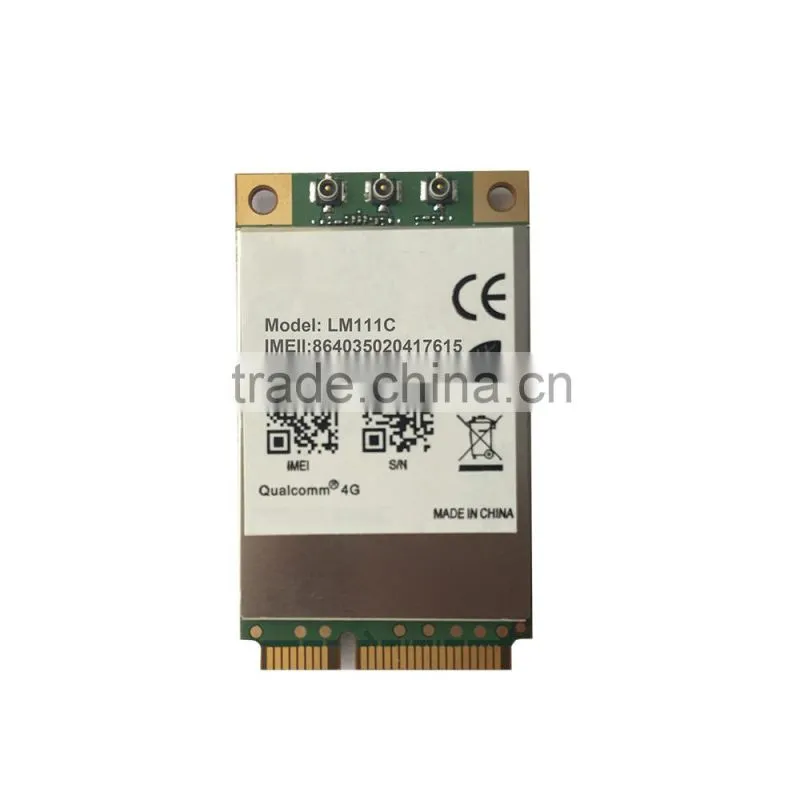

High quality 2G 3G 4G LTE wifi module price
Model Number : LM111C
Product Description
General Features for 3g modem module
- TDD LTE:Band38/ Band39/Band40/ Band41
- FDD LTE: Band1/ Band3/Band7/Band8
- Penta-band : DC-HSPA+/HSPA+/HSPA/UMTSB1/B2/B5/B8
- Quad-band: EDGE/ GPRS/GSM1900/1800/900/850 CDMA/EVDO BC0
- Receive diversity: LTE/DC-HSPA+/HSPA+/HSPA/UMTSB1/B2/B5/B8/ EVDO
- MIMO LTE: DL 2*2 MIMO
- Transmitter power
- WCDMA/HSPA+ : +24dBm (PowerClass 3)
- GSM/GPRS 1900MHz/1800MHz: +30dBm (PowerClass 1) GSM/GPRS900M/850MHz: +33dBm (Power Class 4) EDGE 1900MHz/1800MHz: +26dBm (PowerClass E2) EDGE 900M/850MHz:+27dBm (Power Class E2)
- LTE:Accorded with 3GPPTS 36.101R8+23dBm(Power Class 3) CDMABC0: +23 dBm(Power Class 3)
- Control via AT commands: 3GPP TS 27.007and TS 27.005;WOSIN extendedAT command
- SIM card supply voltage: 1.8V to 3.0 V UICC (SIM/UICC/UIM), ISIM supported
- Supply voltage range: Normal: 3.2 to 4.2V (typical:3.6 V)
- Temperature range: Normal operation: -10°C to+60°C
- Extended operation: -20°C to +70°C Storage: -40°C to+85°C
- Humidity: 5% - 95%
- Dimensions: 50 mm x 31 mm x 4.2 mm
- Weight: <15g
- OS: Win2000/ XP/VISTA,VISTA32/64,Windows 7,Windows 8 Linux2.4/Linux2.6/Android2.3 above

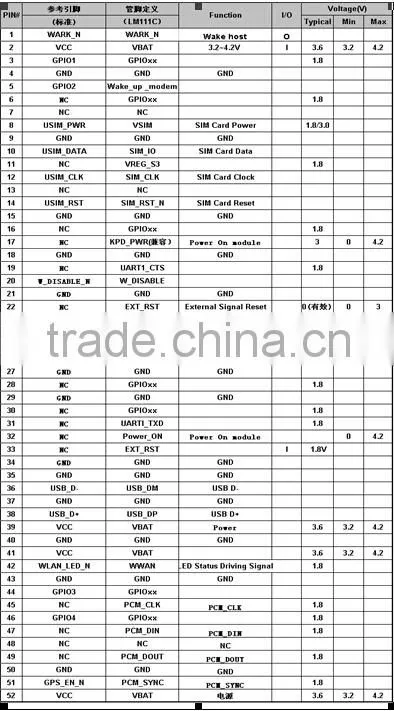

Interfaces for 3g modem module
- Antenna interfaces x 2
- PCI ExpressMini Card InterfaceUSB 2.0 interface highspeed Power supply
- UICC interface
- UART
- I2C
AdditionalFeatures for 3g modem module
Sleep wake-up
IPV4
PCM
SIM Hotswap
BodySAR
DataFeatures for 3g modem module
- 1x: UL (153.6 kbps)/DL (153.6 kbps)
- EVDO Rev.A: UL (1.8 Mbps) /DL(3.1 Mbps)
- GPRS/EDGE: Multi-slot Class 12
- WCDMA PS: UL (384 kbps)/ DL (384 kbps)
- DC-HSPA+ :UL (5.76 Mbps)/ DL (42 Mbps)
- LTE TDD: UL 17 Mbps/ DL 68Mbps @Bandwidth 20M cat3
- LTE FDD: UL 50 Mbps/ DL100Mbps @Bandwidth 20M cat3
SMSFeatures for 3g modem module
- Supporting MO and MT
- Supporting formats ofPDU
- Point-to-point andcell broadcast
Approvals for 3g modem module
- CCC
- FCC
- CE
- RoHS
Attention for 3g modem module
Please refer to the latest version of Hardware Guide about the that serves the right to make changes or improvements to any to the products without prior notice
| Packaging & shipping | ||
| Packing details: | Netural Packing Box or customize design (MOQ:1pcs) | |
| Delivery details: | 30- 45 days ,According to customer quantity | |
