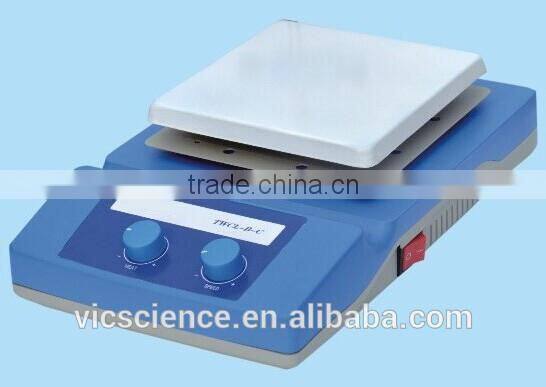

Temperature adjustable magnetic stirring hot plate stirrer
We can product standard heating inner sleeve,also,we can provide barrel type,cylindrical type and strip type and so on non-standard heater.
♣ Hot plate magnetic stirrers features:
1.Adopt the square TU2 red copper plate which is processed by Vacuum coating to heat ,with beautiful appearance and anticorrosion ,without deformation when get heated.
2.Special heating mode(that has applied for patent),the surface maximum temperature can be up to 350°C.
3.Have electronic voltage regulator circuit inside and the thyristor control the temperature.
4.Can heat the standard and off-standard 50-1000ml reaction –bulbs and other canisters which contain no magnetic metal .
5.Using DC brushless speed regulation motor , stable performance , low noise , long service life , no spark.
6.The shell adopts one-time forming flame retardant strengthen PBT injection molding shell, with thermostability,anti-corrosion and good insulation property.
7.30 ° cant control panel is suitable for standing and sitting viewing angle .
8.Stepless speed adjustment,low speed-stable , high speed-strong.
♣ Hot plate magnetic stirrers detailed parameters:

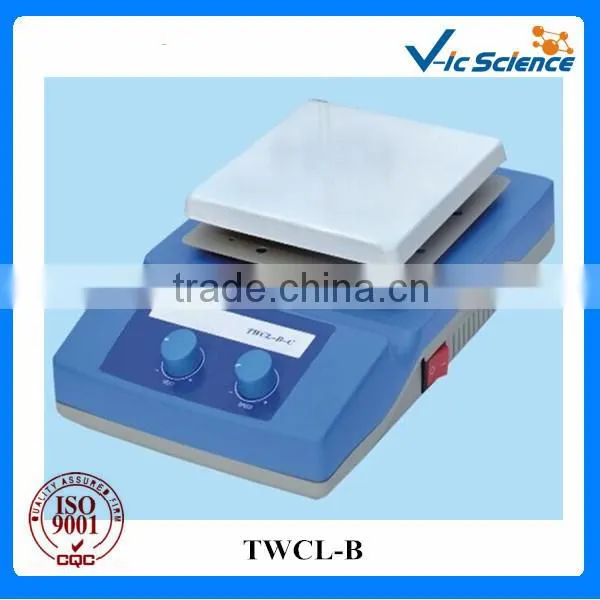

| Model | TWCL-B-C Hot plate magnetic stirrers | |||
| Area of heating plate(mm) |
140x140 | 180x180 | 230x230 | 280x280 |
| Voltage | 220V 50HZ |
|||
| Range of Speed | 50-2000r / min Non-polar speed regulating digital display |
|||
| Motor Power | 40W,DC14-24V | |||
| Heating power | 350W | 500W | 800W | 1200W |
| The highest surface temperature |
350°C | |||
| The way of temperature control |
adjust temperature control |
|||
| Accuracy |
±2°C |
|||
| Capacity of mixing(ml) | 50-500ml | 50-2000ml | 50-5000ml | 50-10000ml |
| Working time | continuous | |||
| Package Size(mm) | 300x170x100 | 370x235x100 | 420x280x105 | 480x330x105 |
| Net weight(g) | 3000±200g | 4000±200g | 5000±200g | 7000±200g |
♣ Don’t hesitate to choose us:
Being a specialized heating mantle manufacturer, we are proud to have experienced technical experts, advanced equipments, complete quality control systems and after-sales service system to fully ensure the quality of our products. we ensure best services to our customers based on service, quality and reasonable price.
