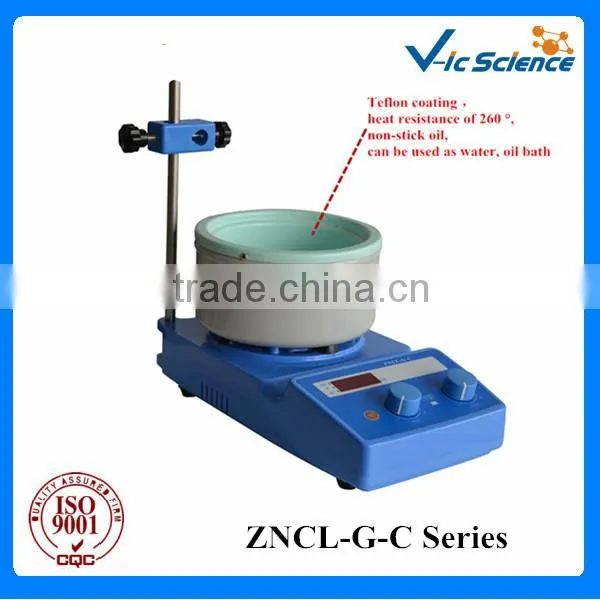

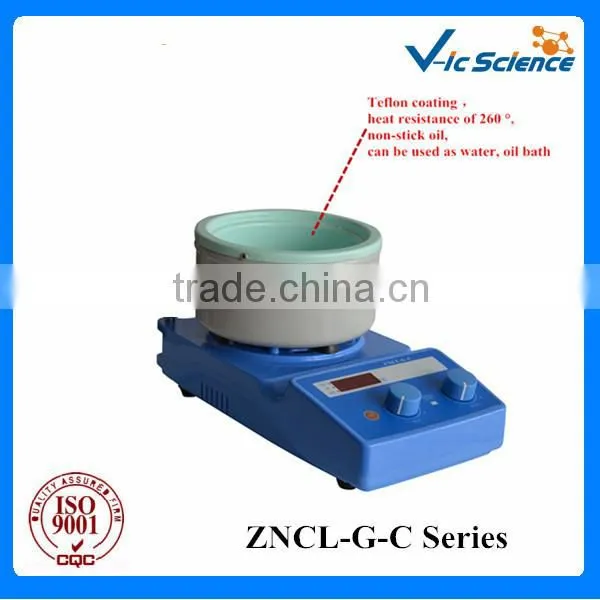

Magnetic Stirring Laboratory magnetic oil bath or water bathing Kettle
♣ Product features:
| 1. | Use the heating units to heat,have the characteristics of large heating area ,heating uniform and heating fast ,and the maximum temperature can be 380°C. |
| 2. | Adopt the fuzzy PID control algorithm to control temperature,have the functions of double screen digital display and self adjustment ,have high measure precision,small temperature impact and single key for soft-touch operation and use the inner and outer thermocouple to measure temperature.Use the controllable silicon to control the output ,160-240V voltage power supply can be used and thermocouple break protection is available. |
| 3. | can heat and stir 50-20000ml standard and non-standard reaction flask. |
| 4. | Adopt brushless DC motor,have stable performance ,low noise ,long service life and have no spark. |
| 5. | digital display the speed. |
| 6. | The shell adopts one time forming flame retardant strengthen PBT plastic injection shell,which is high-temperature resistant,anti-corrosion and has good insulation property. |
| 7. | Equipped with over-temperature protection function. |
| 8. | 30°cant control panel suits for sitting and standing position angle. |
| 9. | Stepless speed,low stable,high strength. |
♣ Product detailed parameters:
| Technical parameters | 50ml | 100ml | 250ml | 500ml | 1000ml | 2000ml | 3000ml | 5000ml |
| Power supply | 220V/50HZ For your requirement | |||||||
| Power of the motor | 40W,DC14V | |||||||
| Rotational speed range | 50-2000r/min | |||||||
| Heating power | 110W | 130W | 216W | 220W | 530W | 650W | 730W | 1100W |
| Temperature controlling accuracy | ±1℃,inner and outer sensors, self-tuning function | |||||||
| Heating temperature | The surface temperature can be up to 380℃ | |||||||
| Boilling time | Water for 7 to 12 minutes |
Water for 10 to 15 minutes | ||||||
| Furnace wire | Cr20Ni80 | |||||||
| Insulation layer | alkali-free glass fiber,can bare 450℃ | |||||||
| Insulating coefficient | relative humidity ≤35%,the coefficient≥500M | |||||||
| Heat preservation layer | Exclusive with aluminum silicate cotton vacuum calibrating environmental protection heat preservation body | |||||||
| Stirring capacity | 50ml | 100ml | 250ml | 500ml | 1000ml | 2000ml | 3000ml | 5000ml |
| Inner sleeve diameter |
58mm | 75mm | 95mm | 115mm | 145mm | 180mm | 212mm | 253mm |
| Inner sleeve depth | 30mm | 40mm | 60mm | 70mm | 85mm | 105mm | 125mm | 145mm |
| Outline dimension | 300×170×170mm | 370×325×200mm | 420×285×250mm | 480×330×260mm | ||||
| Working time | continuous | |||||||
♣ Don’t hesitate to choose us:
Being a specialized heating mantle manufacturer, we are proud to have experienced technical experts, advanced equipments, complete quality control systems and after-sales service system to fully ensure the quality of our products. we ensure best services to our customers based on service, quality and reasonable price.
♣ Maybe you are interested ?
1.Heating Mantle: ZNHW,ZNQ,PTHW,TYHW.
2.Magnetic Heating Mantle:TWCL-T,ZNCL-TS.TWJR-B,ZNJR-B.
3.Magnetic Stirring Heating Mantle:TWCL-B,ZNCL-B,ZNCL-BS.
4.Mutil-point Magnetic Stirring Heating Plate:TWCL-D,ZNCL-D,ZNCL-DS.
5.Magnetic Stirring Heating Kettle:TWCL-G,ZNCL-G,ZNCL-GS.
♣ Carton case and Wooden case
♣ Our Services
1.Warm service ,proffesional reply .we will give you best choice reply base pon our 30 years international export experience.
2.100% Direct factory .
3.We specialize in Human anatomical model manufacture .
4.We could make from raw material to finished product(including the model upper parts ,base ,the metal parts ).
5.OEM &ODM is our strong point .
6.Sample policy :Not free ,sample fee will be refund when the decent order received by us .
7.Our Certificate :PONY ,SGS ,ISO ,EN71.
♣ Our team:
Expand training,is our ability and unity show.
We have Professional classes every Saturday and keep ourselves modern and make progress.
♣ Q&A:(The questions you may like)
1:How long you can fulfill the order normally?
Usually we will take 3-15 days to produce the new slides,which is all based on the quality first..
2:What is your minimum order quantity?
Our MOQ is 4 as usual,price will be higher if you only order 1.
3:How long the transportation take?
The time depends on the delivery method.which depends on the transportation,almost 3-7 working days.
4:What is the transportation?
Usually We send the goods by air,small order is best to choose international express,such as DHL,FEDEX,EMS,UPS,TNT,Aramex is better for middle east etc.Big orders are suitable for the delivery by sea.
5:What is the payment terms and payment method you can accept?
30% T/T in advance,Balance payment before delivery.
T/T,Western union,Money gram,Master card,Escrow,Paypal,etc..
6:Where is your company?
Our company is located in Xinxiang City,Henan,Province,China,near to Zhengzhou city and yellow river,that is our mother river,we can show you when we meet you from the Zhengzhou airport.(surely, we can drive to meet you when you plan to visit factory, welcome!)
7:Can you do OEM&ODM for me?
Yes, we offer OEM&ODM, we can do special service on the slides details and box,may your logo, may the color, may the different design,all is up to you.
8:Can you supply other products to me?
No problem,Our main products are prepared slides, microscope glass slides,coverslips,heating mantle,microtomes,microscope accessories,biological specimens, teaching models, experiment materials.
9:OK, last one,do you have after-sale service?
Sure, we do have, and we do very well during the ordering time,many urgent reply and calling;we can supply 1 year after sale service. And do contact us if you have any question.
♣ Personal show: Vic Science,your best choice! Sophy is here waitting for you!
