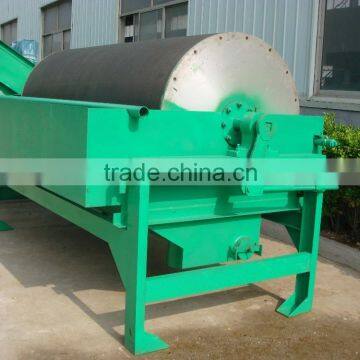

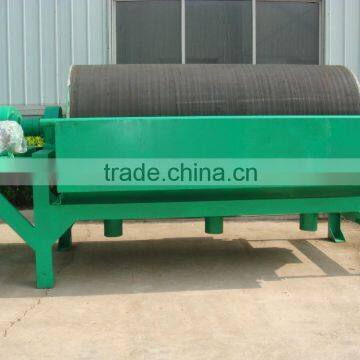

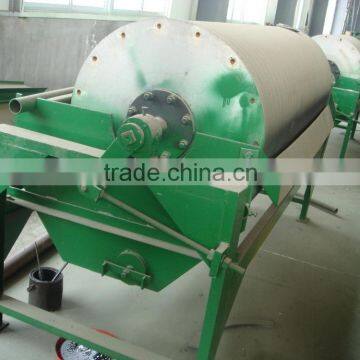

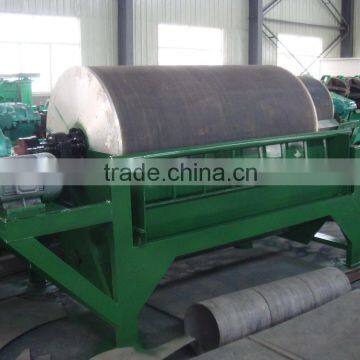

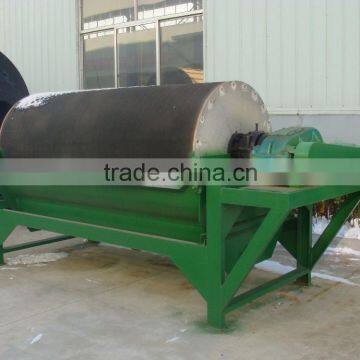

Low Price Wet High-intensity Magnetic Separator
Features of magnetic separator
1. CTB magnetic separator is a wet type weak magnetic field permanent magnetic cylinder magnetic separator.
2. energy saving, high magnetic induction, simple structure, low price, easy operation and maintenance, small floor space required, and large processing capacity, etc.
3. The structure of tank has can be classified into downstream, counter stream and semi-counter stream, with separation grain size of 66-0, 0.6-0, and 1-0mm respectively.
Application of magnetic separator
Magnetic Separator mining machine high efficiency low price of china :
This machine is widely used in mineral processing, coal washing and chemical industries for strong magnetic minerals that wet classification size ranges from 0 to 6 mm, and divides the minerals into magnetic and non-magnetic materials. It often processes strongly magnetic materials such as magnetite, magnetic pyrite etc..
Technical parameter of magnetic separator
| Model | Standard | Size of supplying minerals | productive capacity | Motor | weight | |
| mm | t/h | mobel | PowerKW | kg | ||
| CTB-69 | Φ600×900 | 0-0.2 | 8-15 | Y90L-4 | 1.5 | 780 |
| CTB-618 | Φ600×1800 | 0-0.6 | 8-15 | Y90L-4 | 1.5 | 830 |
| CTB-712 | Φ750×1200 | 0-0.6 | 8-15 | Y90L-4 | 1.5 | 1050 |
| CTB-718 | Φ750×1800 | 0-0.6 | 8-15 | Y100L2-4 | 3 | 4050 |
| CTB-1018 | Φ1050×1800 | 0-0.3 | 10-20 | Y100L2-4 | 3 | 4050 |
| CTB-1021 | Φ1050×2100 | 0-0.3 | 15-30 | Y100L2-4 | 3 | 4700 |
| CTB-1024 | Φ1050×2400 | 0-0.3 | 15-30 | Y100L2-4 | 3 | 5400 |
Safe shipment of magnetic separator
Before sales:
Guide customer to choose the most suitable type of equipments;provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sales:
Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection: Organize to delivery according to the contract.
After sales:
Company can send engineers overseas for guiding to install, debug and train the workers.We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Our workshop
Welcome to visit our factory!!
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our products, please feel free to contact us.
