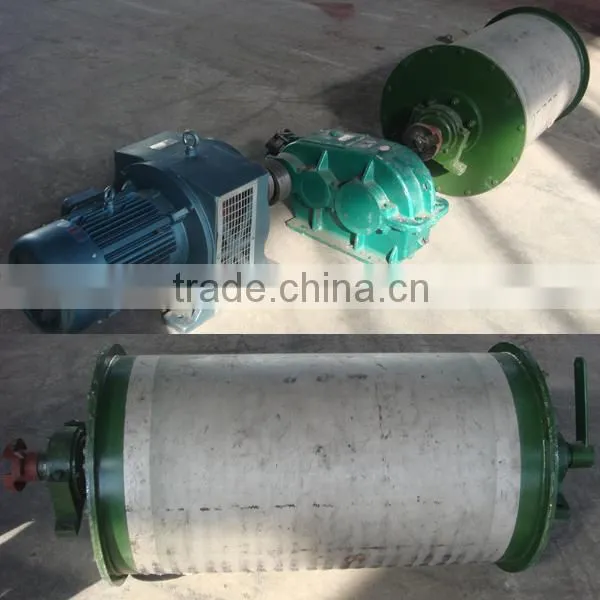

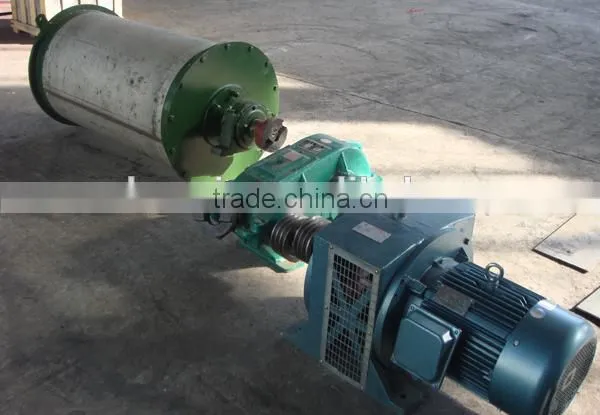

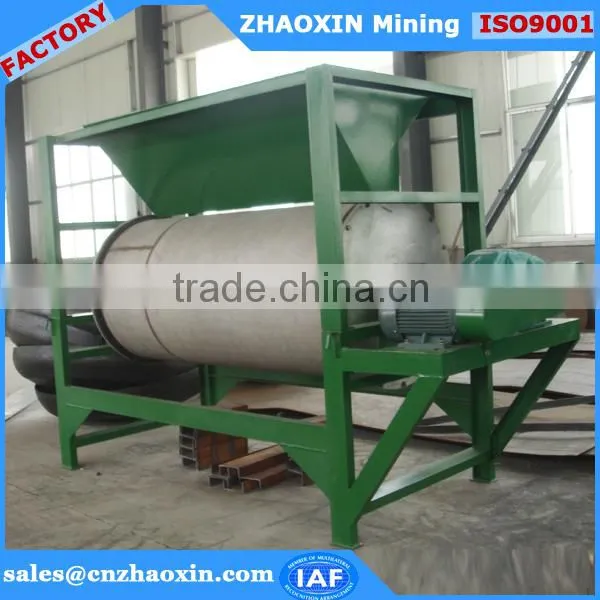

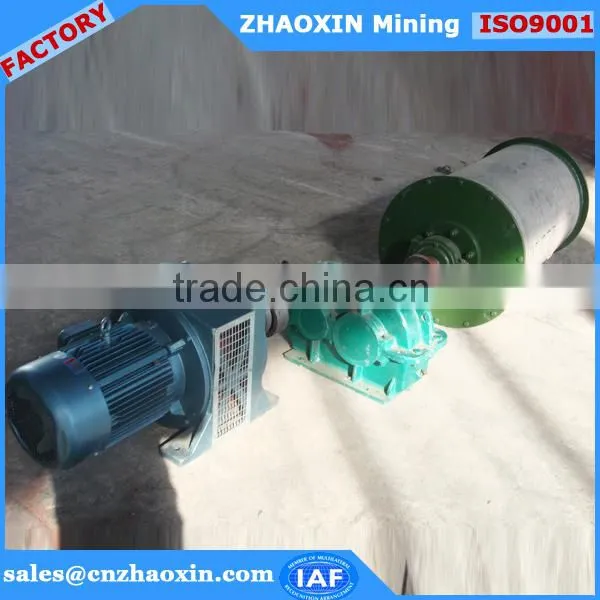

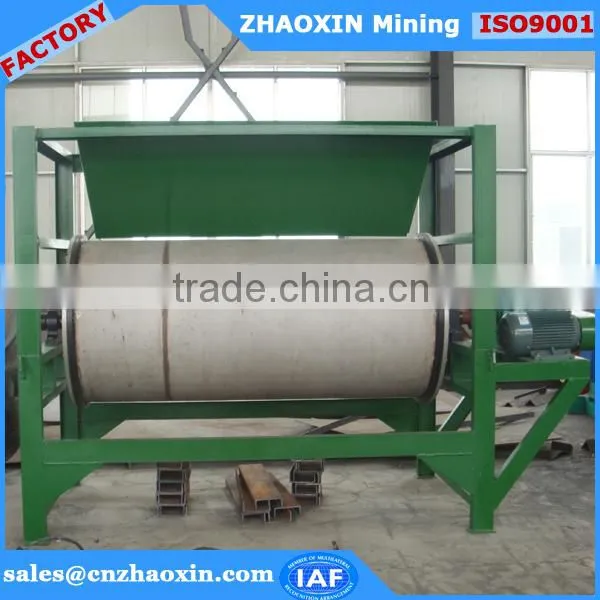

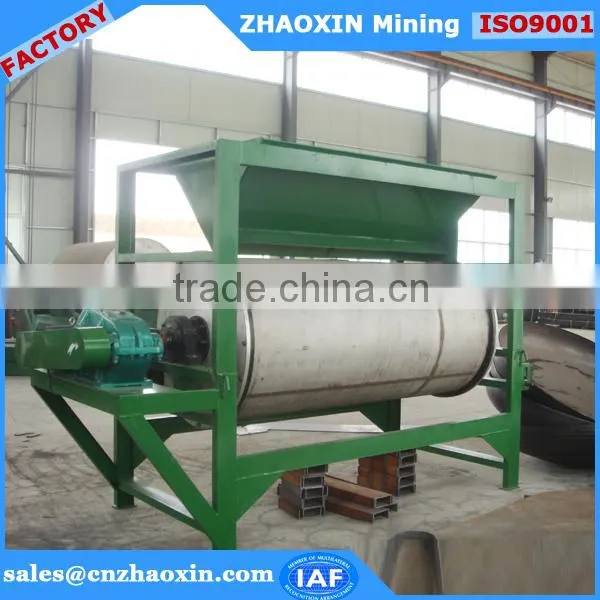

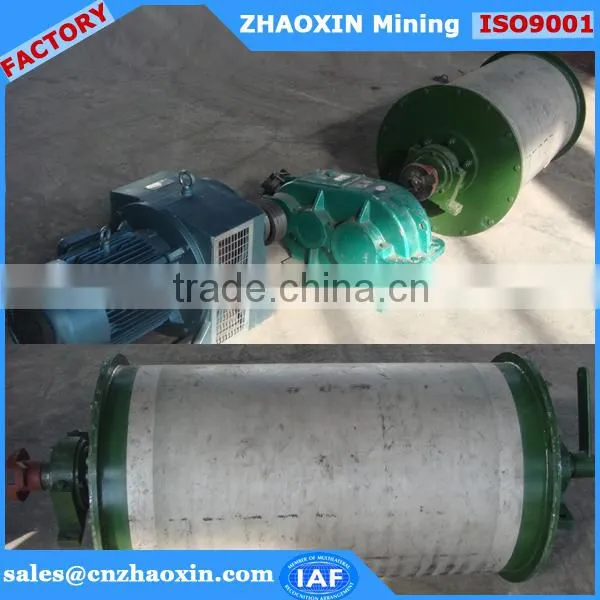

Iron Ore Dry Magnetic Drum Separator
Dry Magnetic Drum Separator
The surface of cylinder can be packed with ultra anti-abrasive rubber.
Technical parameter of Dry Magnetic Drum Separator
| Model | Drum dia(mm) | Drum length (mm) | Belt width (mm) | Average magnetic field intensity on the surface of the cylinder(MT) | Allowed torque moment(N.m) | Particle size of separated materials(mm) | Capacity (t/h) | Weight(kg) |
| CT-0404 | 410 | 465 | 400 | 150~160 | 1300 | 10~40 | 0~30 | 250 |
| CT-0505 | 520 | 500 | 400 | 150 | 1300 | 10~40 | 20~40 | 500 |
| CT-0506 | 520 | 600 | 500 | 150 | 2100 | 10~40 | 40~60 | 600 |
| CT-0507 | 520 | 750 | 650 | 150 | 2120 | 10~40 | 60~80 | 700 |
| CT-0707 | 750 | 750 | 650 | >160 | 2860 | 10~60 | 80~100 | 1200 |
| CT-0709 | 750 | 950 | 800 | >160 | 5500 | 10~60 | 90~110 | 1620 |
| CT-0816 | 800 | 1600 | 1400 | >160 | 9760 | 10~60 | 100~150 | 2850 |
| CT-1010 | 1000 | 970 | 800 | 200~210 | 5590 | 10~100 | 150~200 | 3410 |
| CT-1012 | 1000 | 1170 | 1000 | >200 | 10680 | ≤100 | 200 | 4010 |
| CT-1014 | 1000 | 1400 | 1200 | >200 | 12810 | ≤100 | 200 | 4600 |
| CT-1016 | 1000 | 1600 | 1400 | 160~210 | 14920 | 10~100 | 150~200 | 5200 |
| CT-1210 | 1200 | 970 | 800 | 160~210 | 8380 | 10~100 | 150~200 | 4380 |
| CT-1212 | 1200 | 1170 | 1000 | >160 | 10470 | ≤100 | 200 | 5280 |
| CT-1214 | 1200 | 1400 | 1200 | >160 | 12570 | ≤100 | 200 | 6070 |
| CT-1216 | 1200 | 1600 | 1400 | >160 | 14580 | ≤100 | 200 | 6670 |
| CT-1218 | 1200 | 1800 | 1600 | >160 | 16620 | ≤100 | 200 | 7260 |
| CT-1412 | 1400 | 1200 | 1000 | >160 | 16000 | ≤100 | 200 | 6000 |
| CT-1414 | 1400 | 1400 | 1200 | >160 | 20000 | ≤100 | 200 | 7100 |
| CT-1416 | 1400 | 1600 | 1400 | 400 | 25000 | ≈400 | 300 | 9800 |
| CT-1518 | 1500 | 1800 | 1600 | ≥450 | 30000 | ≈400 | 600 | 14000 |
Dry Magnetic Drum Separator application
dry magnetic drum separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum—niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephrite. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.
Safe shipment of Dry Magnetic Drum Separator
Before sales:
Guide customer to choose the most suitable type of equipments;provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sales:
Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection: Organize to delivery according to the contract.
After sales:
Company can send engineers overseas for guiding to install, debug and train the workers.We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Our workshop
Welcome to visit our factory!!
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our products, please feel free to contact us.
