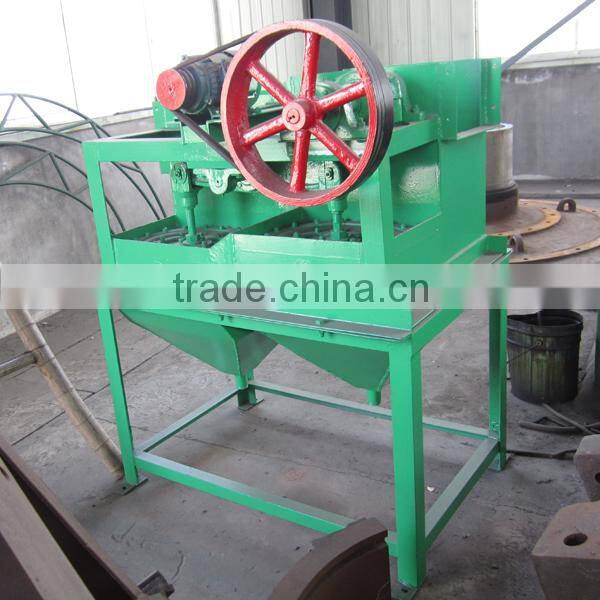

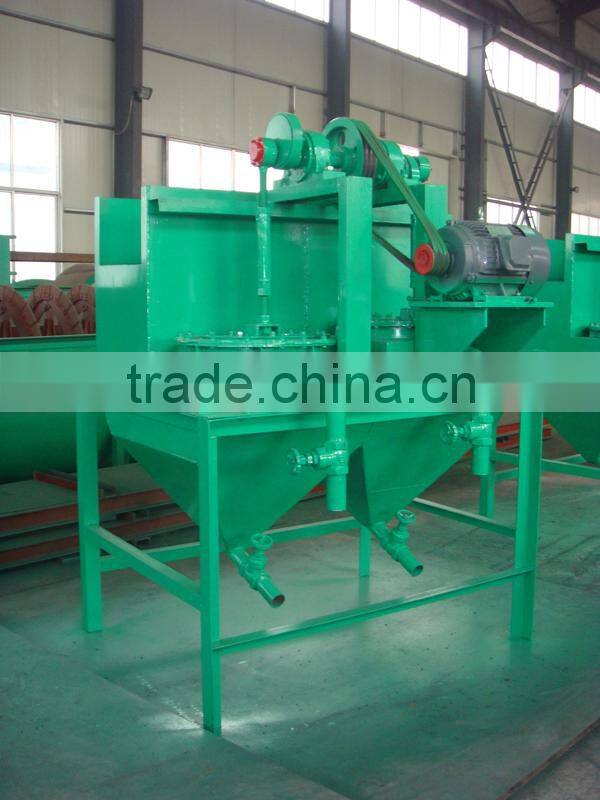

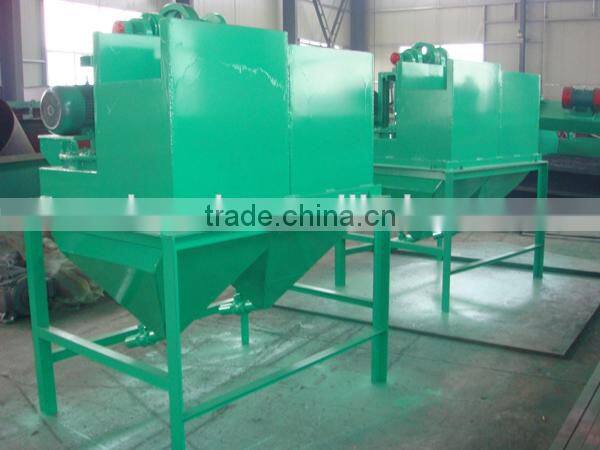

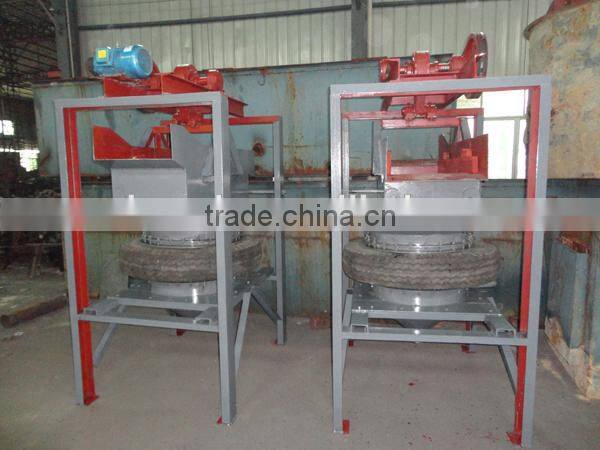

Gravity Separation Machine Side Movable Diaphragm Jig

Name: Gravity Separation Machine Side Movable Diaphragm Jig
Brand: ZHAOXIN
Availability: InStock

FOB Price

US$ 1,000 - 5,000 / Set

1 Set(Min. Order)

Port Qingdao Shanghai or any other China port
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	ZHAOXIN
Model Number	side movable diaphragm jig	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Standard packaging or as per customer's requests.

Product Description

Gravity separation machine lower movable diaphragm jig

Product Description

Overview of diaphragm jig

1. This diaphragm jig is side moving type rectangular jig, with the diaphragm and drive unit mounted at a side of the jigging chamber.

2. Stable slice, good separation result, convenient maintenance.

3. It is widely used for collecting valuable ore with fine grain size in the gold separation plant, separating rough concentrate in the gold placer, and recovering the monomer coarse gold in advance by being aranged in the grinding classification loop in the gold-bearing rock mine.

4. The improved type A adopted design of water diversion valve. The drive mechanism interlocks, distributes and feeds the water. With unique and advanced structure, rational water compensation is achieved.

Notes for selection of diaphragm jig

1. Please specify the model and quantity, as well as the size of screen aperture upon placing order. If no special requirement, 2mm screen aperture will be supplied.

2. Jig with left drive will be supplied if no special request.

3. Jigging chamber is made with single hopper or double hopper for customer's choice.

Technical parameter of diaphragm jig

Standard		Double dippers		Single dippers
Standard		300×450	300×450A	300×450	400×600A	400×600
Size of supplying minerals (mm)		1-12	1-12	≤10	≤10	≤10
Output(t/h)		2.1-6.1	2.1-6.1	2-5	2-5	2-5
Washing limits of route (times/min)		322-420	322-420	300	300	76.7-767
Washing limits of route (mm)		0-25.3	0-25.3	0-18	0-18	0-18
Density of supplying mineral (%)		15-50	15-50	15-50	15-50	15-50
Up water (t/h)		2.1-3.8	2.1-3.8	1-2	2.1-5.4	2.1-5.4
Motor	Model	Y90S-4	Y90S-4	Y90L-6	Y90L-6	TZT222-4
Motor	Power (KW)	1.1	1.1	1.1	1.1	1.5
Dimension (mm) (L×W×H)		1290×1270×1750	1230×1270×1740	650×1030×1588	792×1237×1894	996×1263×1789
Weight (kg)		745	550	320	400	500

diaphragm jig

Packaging & Shipping

Safe shipment of diaphragm jig
