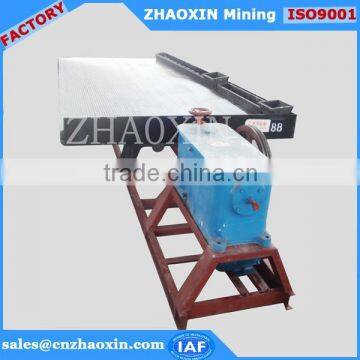

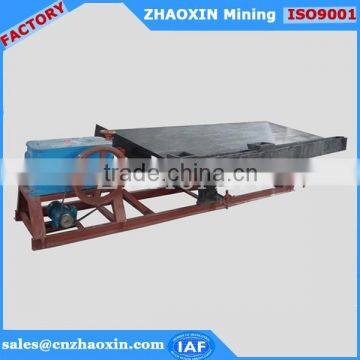

Hot sale gold shaking table
Introduction of shaking table
1. Shaking table is one of the major gravity ore dressing machines, it is designed to concentrate the fine-grinding or micro-grinding rare metal & precious material. The deck is made of fiberglass.
2. The shaking table separate the mineral granular based on the gravity differences.
3. When the pulp reached the table surface from the feeding channel, the granular in it will be effected by the gravity force, water flow force, the inertial force and friction force which comes from the reciprocating movement of the table surface.
4. Under the effect of these four forces, the granular inside the pulp will be classified and moved to different direction: the high density one will go front and drop from the concentration end, the gangue will go to the tailing side, and the middles will be re-concentrated on the shaking table.
Technical parameter of 6-S shaking table
|
Model Parameters |
LY-4.08m2 LY3000×1320 |
LY-1.95m2 LY2100×1050 |
LY-0.5m2 LY1100×500 |
|
Bed surface size(mm) |
3000×1620×1360 |
2100×1050×850 |
1100×500×430 |
|
Stroke(mm) |
6-30 |
12-28 |
9-17 |
|
Wash time(beats/min) |
210-320 |
250-450 |
280-460 |
|
Transverse gradient |
0-10 |
0-8 |
0-10 |
|
Feed size(mm) |
Ore sand bed surface |
<2 |
<2 |
<2 |
Slurry ore surface |
<0.1 |
<0.074 |
<0.074 |
|
Feed density |
10-30 |
10-30 |
10-30 |
|
|
Handing capacity (t/set.h) |
Ore sand |
0.7-1.5 |
0.4-0.8 |
0.1-0.2 |
Slurry |
0.4-1 |
0.3-0.5 |
0.05-0.1 |
|
Water consumption(t/set.h) |
0.3-1.5 |
0.2-1 |
0.1-0.8 |
|
Motor |
Model |
Y100L-4 |
Y90L-4 |
Y80L-4 |
Power (KW) |
1.1 |
1.1 |
0.55 |
|
Rotate speed |
1400 |
1400 |
1400 |
|
Dimensions(mm) |
4075×1320×780 |
3040×1050×1020 |
1530×500×800 |
|
Belt |
A-1033 |
B-2007 |
A-1245 |
|
Shaker surface weight(kg) |
270 |
180 |
50 |
|
Detailed parts of shaking table
Our packaging of shaking table
Before sales: Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the whole schem.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection:Organize to delivery according to the contract.
After sales: Company can send technical persons for guiding to install ,debugg and train the workers.
We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Our workshop
Welcome to visit our factory!!
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our products, please feel free to contact us.
