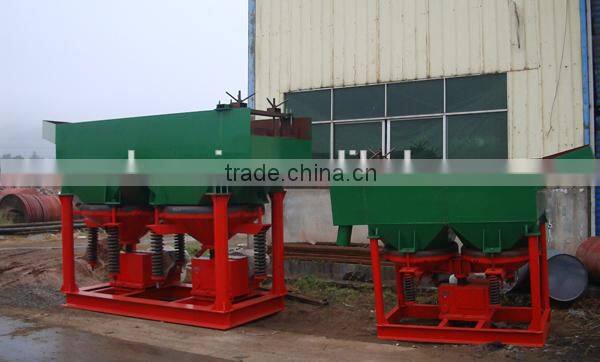

Gold Mining Machinery Diaphragm Jig With Best Quality

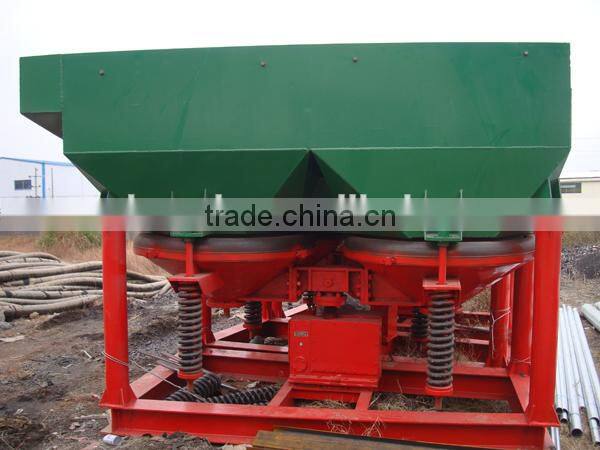

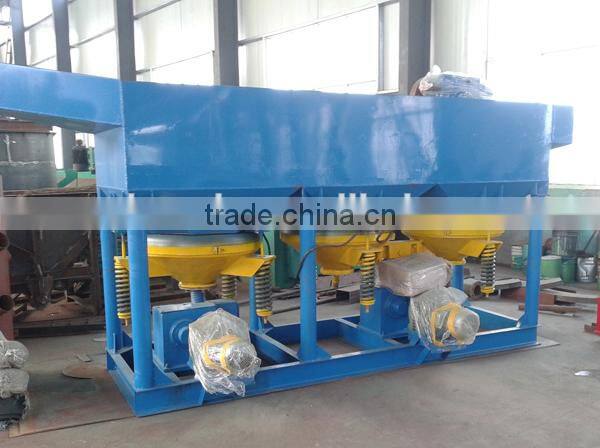

 Overview of gold mining machinery diaphragm jig

1. Jig gear installed in the below of the jigging chamber, storage is conical, cirular rubber membrane is used to connect with jigging chamber.

2. Motor and pulley set at one end of the machine, via eccentric ratation turned to push the diaphragm movement up and down.

3. Jig has no separate diaphragm chamber, so engage small area.

4. The below conical storage and the diaphragm movement direct the jigging chamber, water velocity distribution is uniform.

5. Suitable for fine grain size within 6mm.

Notes for selection of gold mining machinery diaphragm jig

Please specify the model and quantity, as well as the size of screen aperture upon placing order. If no special requirement, 2mm screen aperture will be supplied.

Technical parameter of gold mining machinery diaphragm jig

gold mining machinery diaphragm jig

Safe shipment of gold mining machinery diaphragm jig

Certificate and honor

Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.

With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.

Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.

If any question about our products, please feel free to contact us.
