Home > Products > Flotation equipment > Good quality reasonable price BF Flotation Machine High with reliable quality

Good quality reasonable price BF Flotation Machine High with reliable quality

Name: Good quality reasonable price BF Flotation Machine High with reliable quality
Brand: Zhaoxin
Availability: InStock

FOB Price

USD $2,000 - $500,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port qingdao/yantai/dalian/shanghai/shenzhen/guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Zhaoxin
Model Number	BF-1.2	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Standard Export Pakage

Product Description

Specifications

1.Used for iron ore and the proportion of larger don't chosen.
2.Foaming plate, using centrifugal impeller.
3.Mixing strength.

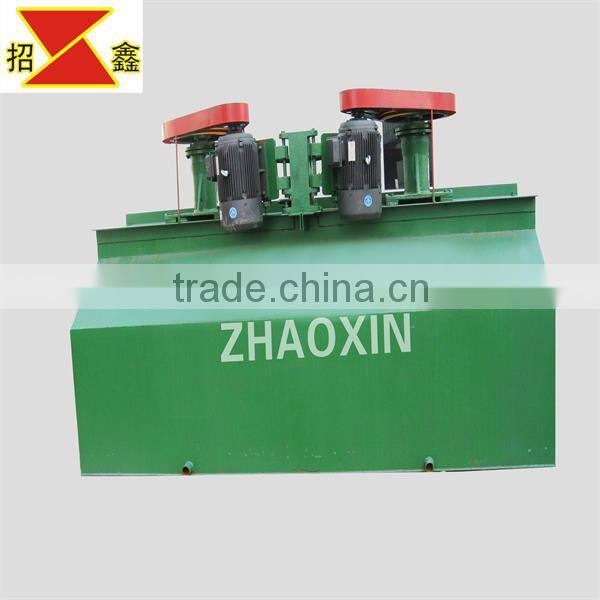

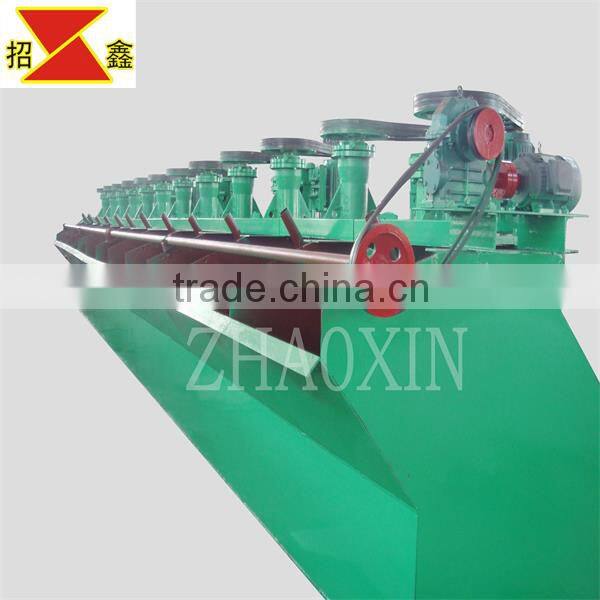

BF type flotation machine

1 Product Features

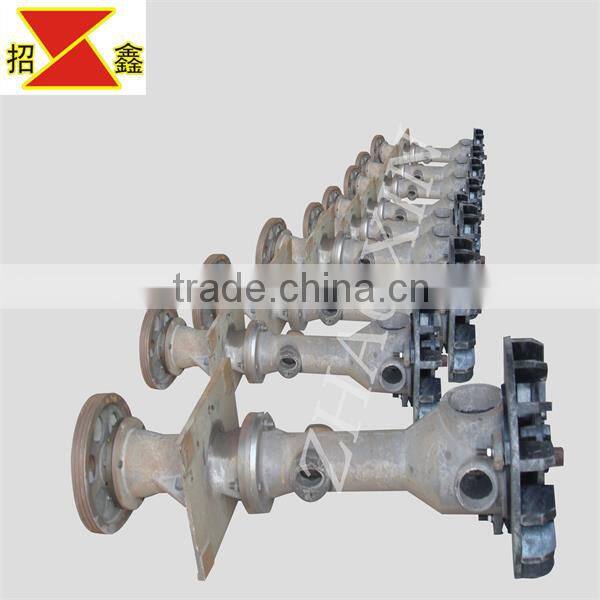

This product is a kind of flotation machine with powerful agitating force improved on the basis of SF flotation machine, suitable for the separation of minerals with larger specific gravity like iron ore, with the following features: a frothing plate is added on the basis of SF flotation machine; centrifugal impeller is adopted, which has enormous agitating force.

2 Notes for Selection

2.1 While placing your order, in addition to specifying the model and quantity, make sure to provide the flotation circuit and the followings:

Configuration scheme and the feeding mode;

quantity of the scrapers and mode of drive (right drive or left drive);

quantities of feeding chambers, intermediate chambers, and crude ore chambers

other special requirements

2.2 No electric control cabinet will be supplied.

2.3 The flashboard will be made according to the manufacturer’s drawings. And the electric driven flashboard will be adopted for large-scale flotation machine.

BF type flotation machine technical parameter table

Model	Effective volume(m³)	(L×W×H) (mm)	Impeller diameter(mm)	Impeller rotational speed(m/s)	Air suction volume (m³/ min)	Motor model	Motor power(kw)	capacity(m³/min)	Single tank weight (kg)
BF-1.2	1.2	1050×1150×1100	450	7.02	0.9~1.10	Y132 M₂-6	5.5	0.6~1.2	1370
BF-2.0	2	1400×1450×1120	500	7.5	0.9~1.10	Y160M-6	7.5	1.0~2.0	1750
BF-4.0	4	1900×2000×1200	650	8	0.9~1.10	Y200L-8	15	2.4~4.0	2585
BF-6.0	6	2200×2350×1300	700	7.5	0.9~1.10	Y225S-8	18.5	3.0~6.0	3300
BF-8.0	8	2250×2850×1400	760	7.5	0.9~1.10	Y225M-8	22	4.0~8.0	4130
BF-10	10	2250×2850×1700	760	7.52	0.9~1.10	Y225M-8	22	5.0~10	4500
BF-16	16	2250×3800×1700	850	8.7	0.9~1.10	Y280S-8	37	8.0~16	8320
BF-20	20	2850×3800×2000	850	8.7	0.9~1.10	Y280M-8	45	10.0~20	8670
BF-24	24	3150×4150×2000	920	8.7	0.9~1.10	Y280M-8	45	12.0~24	8970

Our Services

Service Commitment

Before sales: Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the whole schem.

On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection:Organize to delivery according to the contract.

After sales: Company can send technical persons for guiding to install ,debugg and train the workers.

We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.

Company Profile

Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd.

Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd is located at No.66 Jinlong Road, Zhaoyuan Economic & Technological Development Zone which is a national economic development zone in China. With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area. Zhaoxin machinery has exported to more than 20 countries. The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, floatation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training. The company has occupied a good reputation in this industry by fist class of quality, reasonable price and durable operation life. The company is ISO9001:2008 certificated. Mr. Luan Wanxin, chairman and general manager of the company, greet all friends from home and abroad. We are sure that our service from heart and soul will make all customers satisfied from head to toe.
