XBT elevated agitating tank for ore beneficiation
- Qingdao Shanghai or any other China port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
HOT SALE high efficiency RJ series single impeller agitating tank from China
-
Mining machniery RJ single impeller agitating tank with high efficiency from China
-
Mining machine RJ series single impeller agitating tank with high efficiency from China
-
High quality mining machine RJ series single impeller agitating tank
-
NEW HOT Ore mining machinery RJ series single impeller agitating tank
-
High efficiency ore mining machinery RJ series single impeller agitating tank
Product Details
Condition | New | Mixer Type | Agitator | |
Product Type | Detergent Powder | Application | Liquid | |
Additional Capabilities | Milling | Place of Origin | Shandong, China | |
Brand Name | ZHAOXIN | Model Number | XBT | |
Max. Loading Capacity | 0.42m³ | Voltage | 380V | |
Power(W) | 3KW | Dimension(L*W*H) | 1250x750x1738 | |
Certification | ISO9001&IAF | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Standard packaging for agitating tank for ore beneficiation
Product Description

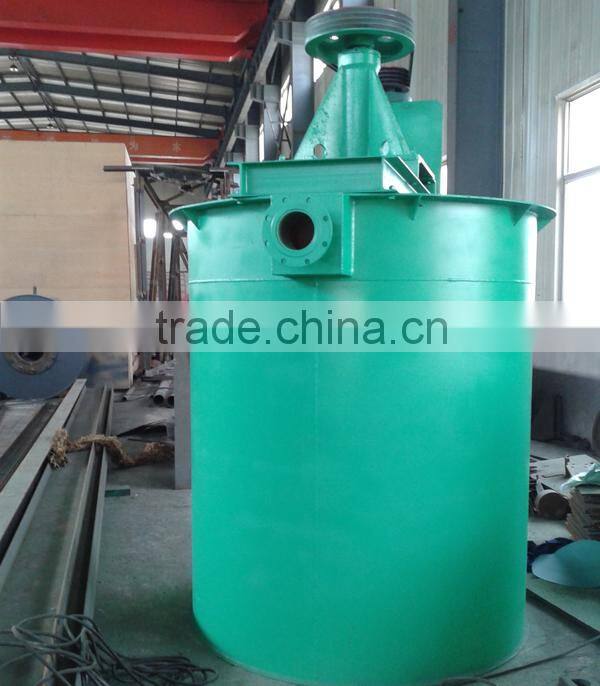

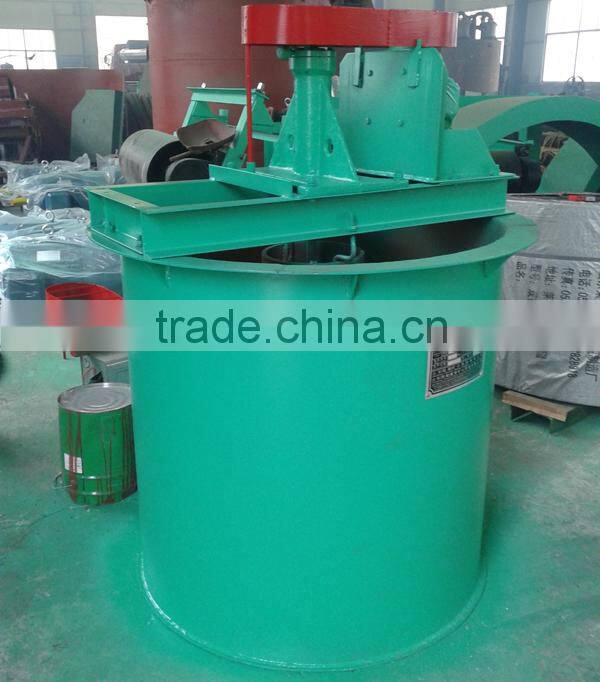

XBT elevated agitating tank for ore beneficiation
Features of agitating tank for ore beneficiation
1. This agitating tank for ore beneficiation is designed for solving the problem of insufficient elevation difference of gravity flow of ore pulp in the equipment configuration under the condition of setting up the plant at the level ground, and with less supplement.
2. This agitating tank for ore beneficiation can promote the height of ore pulp by more than 1m.
3. The water slurry ore pulp at the lower part enters into the agitating tank under pumping action of centrifugal impeller, so as to achieve the elevation.
Technical parameter of agitating tank for ore beneficiation
Model | Effective volume(m³) | Rotating speed | Diameter of impeller(mm) | Motor model | Motor power(kw) | Weight(kg) |
XBT-750X1000 | 0.42 | 572 | 300 | Y100L2-4 | 3 | 681 |
XBT-1500X1800 | 2.8 | 480 | 450 | Y160L-6 | 11 | 1022 |
XBT-2000X2500 | 6 | 362 | 550 | Y280S-6 | 15 | 2400 |
XBT-2500X3000 | 12 | 305 | 650 | Y225M-8 | 22 | 4700 |

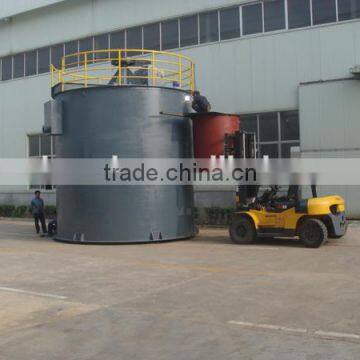

Parts of agitating tank for ore beneficiation
Safe shipment of agitating tank for ore beneficiation
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our product, please feel free to contact us.
Company Profile

Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd is located at No.66 Jinlong Road, Zhaoyuan Economic & Technological Development Zone which is a national economic development zone in China. With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area. Zhaoxin machinery has exported to more than 20 countries. The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, floatation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training. The company has occupied a good reputation in this industry by fist class of quality, reasonable price and durable operation life. The company is ISO9001:2008 certificated. Mr. Luan Wanxin, chairman and general manager of the company, greet all friends from home and abroad. We are sure that our service from heart and soul will make all customers satisfied from head to toe.
