Specifications
Powder Packing Machine1.PLC controller, screw auger as filler
2.Filling capacity: 1-50g
3.OEM acceptable
4.CE certificate
Automatic Powder Packing Machine
Full automatic weighing+filling+bagging+sealing+cutting+counting+date printing.
Application:
The machine is designed and manufactured specially for packing powdery and soft pouch in medical, food and chemical industries etc. Such as pepper, coffee, medical powder, pollen, milk powder, tea powder, flour, bean flour etc.
You are welcomed to send us the products and packing film for testing our machine, we will show you video and sample. Just email me for our address.
Technical Parameters:
| Model | DXDF-80 | ||
| Power supply | 220V, 50Hz, single phase | ||
| Power | 1.1KW | ||
| Speed | 30-70 bags/min | ||
| Filling capacity | 1-20g, 20-50g | ||
| Film width | Maximum 200mm | ||
| Bag size | Length:40-120mm, Width:20-90mm | ||
| Style of bag sealing | 3-side sealing, 4 side sealing, back sealing | ||
| Measuring method | screw auger | ||
| N.W./G.W. | Approx. 185kg/280kg | ||
| Dimension | L1000*W800*H1800mm | ||
Why our machine better than other similar machines?
1. The operation facility is controlled by Mitsubishi PLC controller, all the functions are displayed with digital screen.
2. Step motor is applied to pull the packing film, the error is less than 1 mm.
3. The photocell tracking is easy to fix position.
4. The intelligent temperature controller to make sure the tolerance of sealing temperature by ± 2 °C.
5. Advanced sealing system design makes the bag sealing more firmly, good airtightness.
6. Special screw design make the filling more convenient without appeared blocking/jaming phenomenon.
7. Humanized and hidden knife design are adopted by the cutting system with the machine to make sure the safety of the operators and make the using life of the cutter longer.
8. OEM is acceptable.
There is more item information in our databases, welcome to inquire us anytime, we will reply you within 24 hours.
Packing materials: Several kinds of heat-seal lamination, such as PET/Plated AL/PE, PET/PE,Nylon etc.
Option: -- Screw elevator.
-- Ribbon code printer.
-- 10 or 15 bags packed in roll.
How to use: Please see the User Manual to see how to set up and use this machine(Shipped with machine together).

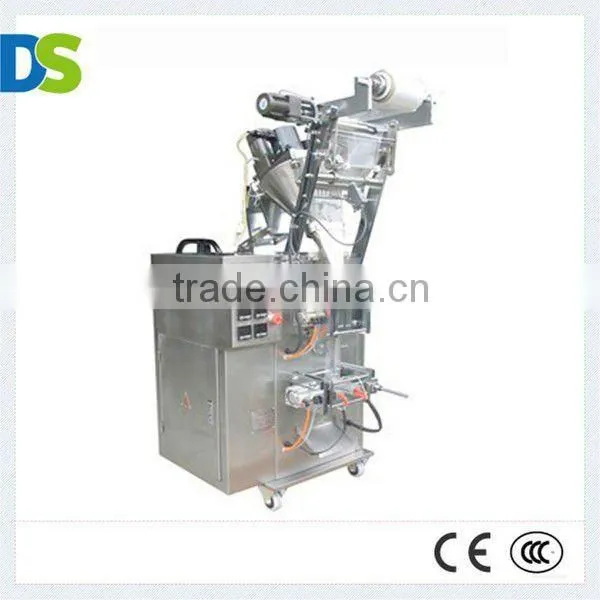

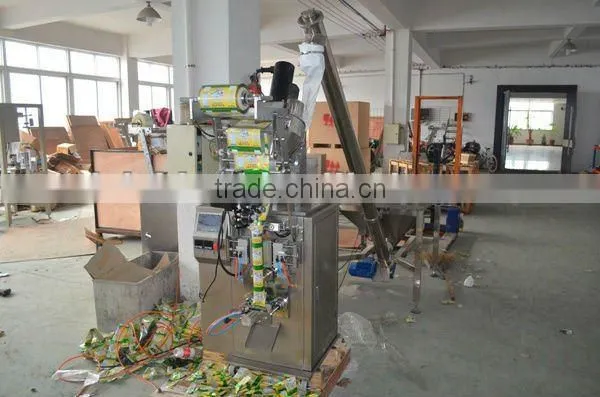

Machine picture:

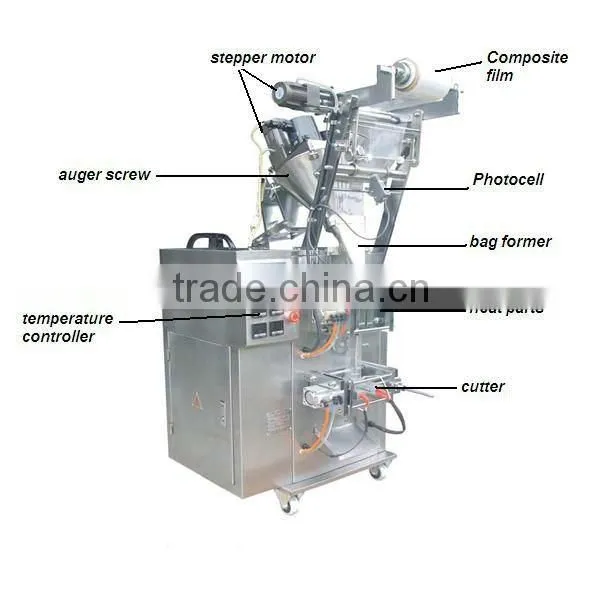

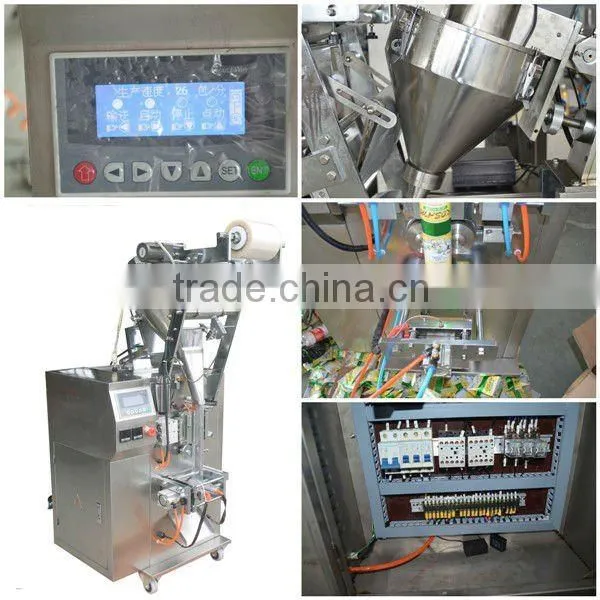

Machine Parts:

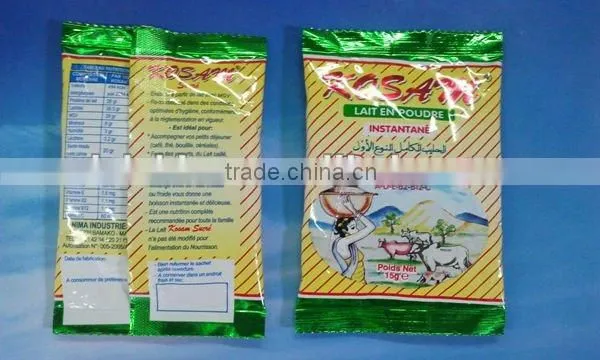

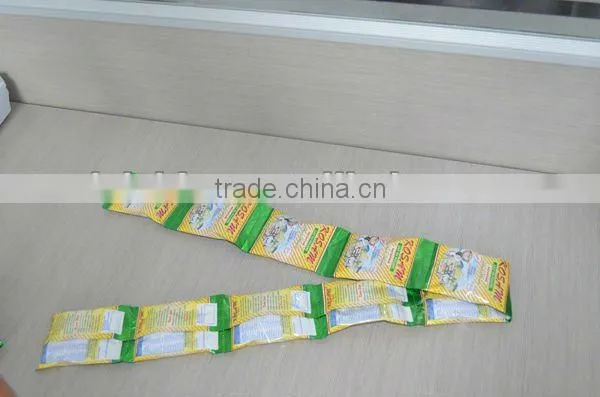

Sample bags:
