Specifications
Hardware Packing Machine1.Vibration disk as counting machine.
2.PLC
3.High quality with best price
4.8 years experience
Fully-Automatic Screw Packing Machine
It is widely applicable to the mixed packing of the accessary mounting screws, nuts and small plastic parts for the electric appliance, the decorative lamps and the decorative hardware. It replaced the the shape forming manner of the pre-made bags, greatly increased the work efficiency, so as to be widely adopted by many screw application enterprises.
The Parts with special shapes can also be customed according to the clients' requirements. This machine is controlled by microcomputer, and the packing process can be realized automatically.
Main Technical data:
Measuring range: It is determined based on the actual situation of the parts.
| Model | DXDS-80 | ||
| Power supply | 220V, 50Hz, single phase | ||
| Filling range | adjustable within a certain range | ||
| Power | 1.1KW | ||
| Speed | 20-70bags/min | ||
| Film width | maximum 200mm | ||
| Bag size | length: 40-160mm / width: 30-100mm | ||
| Bag sealing style | 3 side sealing, 4 side sealing or back sealing | ||
| N.W./G.W. | Approx. 185kg/280kg | ||
| Dimension | L1450*W800*H1650mm | ||
Packing materials: several kinds of heat-seal lamination, such as PET/Plated AL/PE, PET/PE, Nelon etc.
Features:
1. The vibrating disk, the linear vibrating collocating unit and the accurate counting control unit which are specially made for the screw sample can ensure the accuracy of each bag.
2. When packing the packing materials with logo, the advanced stepping control and photocell control can be used together, to acquire the perfect pattern of the logo.
3. It is a single chip controlling system,with automatic halt, automatic alarm and diagnose when error occurs. And it is safe and conveniently count the workload of the machine.
4. It can automatically display the packing amount and conveniently count the workload of the machine.
5. The machine adopts full-automatic operation to fulfill measuring, counting, bag making, filling, sealing and date printing etc.
6. This machine is a combined type and includes vibrating disk, raster count, discharging part and bag making and packing part, the standard configuration for this machine is two vibrating disks, it is optional to add more so as to fulfill the variety of the packing product.
7. Ribbon code printer, finished product conveyor is for option.
There is more item information in our databases, welcome to inquire us, we will reply you within 24 hours.

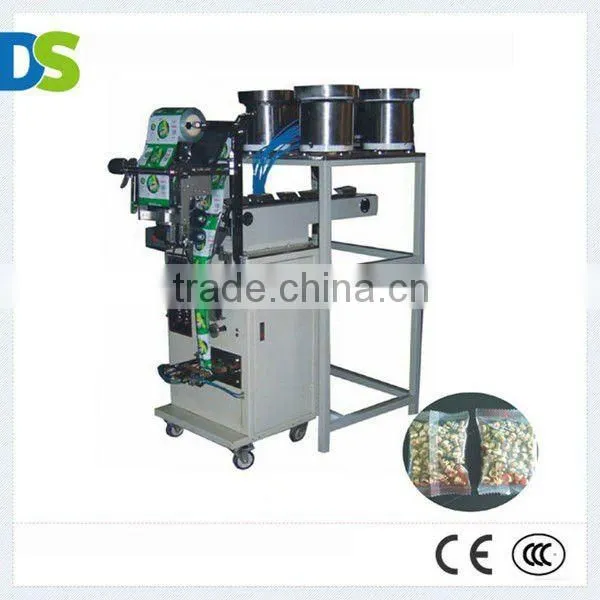

Machine Pictures:
