Specifications
Granule Packing Machine1.PLC controller
2.Filling capacity: 1-25g, 25-50g
3.OEM acceptable
4.CE certificate
Spices Packing Machine
Full automatic weighing+filling+bagging+sealing+cutting+counting+date printing.
Application:
Granule kind: The thin grain material such as sugar, rice, coffee, fruit grain, monosodium glutamate, salt, desiccant, seed etc.
If you want to make sure this packing machine will pack the item, you are welcome to send me samples of that item and I will test it for you. Just email me for the details.
Technical Parameters:
| Model | DXDK-80 | ||
| Power supply | 220V, 50Hz, single phase | ||
| Power | 1.1KW | ||
| Speed | 30-60 bags/min | ||
| Filling capacity | 1-25g, 25-50g | ||
| Film width | Maximum 200mm | ||
| Bag size | Length:40-120mm / Width:30-100mm | ||
| Style of bag sealing | 3 side sealing, 4 side sealing, back sealing | ||
| Measuring method | Volumetric cup | ||
| N.W./G.W. | Approx. 185kg/280kg | ||
| Dimension | L1000*W800*H1800mm | ||
Why our machine better than other similar machines?
1. Control system: The operation facility is controlled by Mitsubishi PLC, all functions are displayed on English digital screen.
2. Raw material: All stainless steel cover meets to international GMP standard.
3. Dosing system: Adjustable measuring cup.
4. Photocell controller is easy to fix location, step motor to pull the packing film.
5. Adjustment: Automatic adjustment of pouch size and filling range, no need to change any machine parts.
6. Intelligent temperature controller is used in sealing and the error of sealing temperature is at plus or minus 2 degrees.
7. Outstanding sealing system: Air cylinder and high-powered heat sealing structure ensure sealing of the bag firm, neat and with good airtightness.
8. OEM is acceptable and the machine that has special bag-size or requirements can be designed and produced specially.
9. Ribbon code printer, elevator, conveyor are as an option.
There is more item information in our databases, welcome to inquiry us anytime, we will reply you withi 24 hours.
How to use: Please see the User Manual to see how to set up and use this machine.

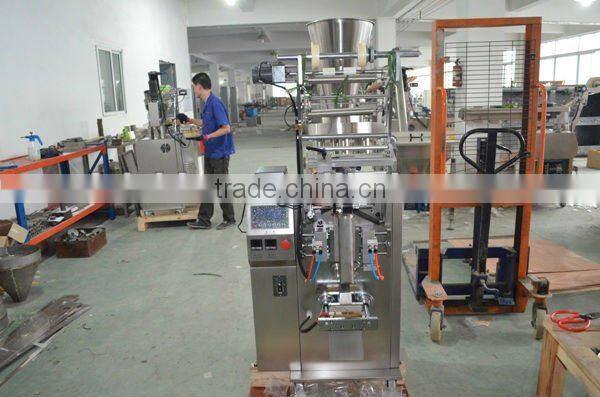

Machine picture:
Machine Parts:

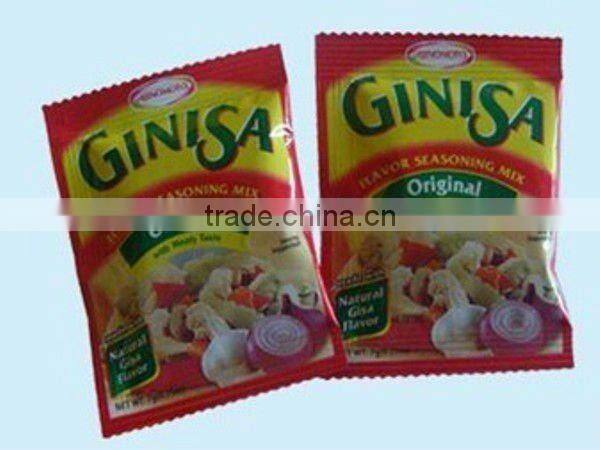

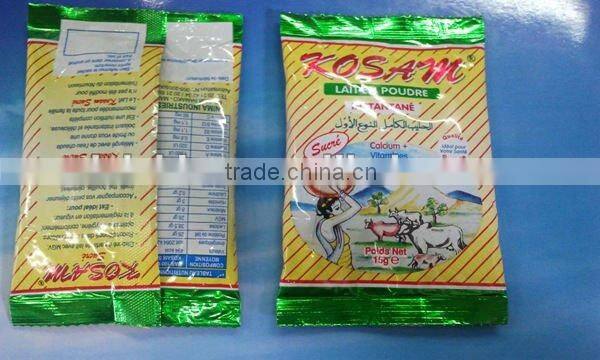

Sample bags:
