Specifications
1.Shaking-plate for counting2.PLC control
3.All stainless steel cover
4.OEM acceptable

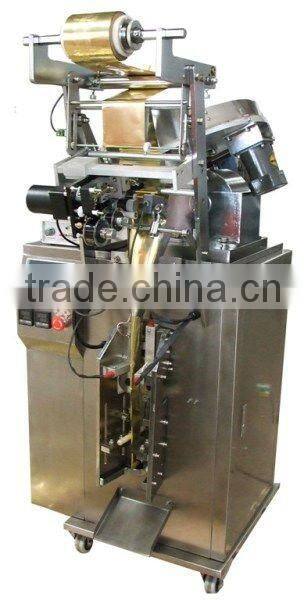

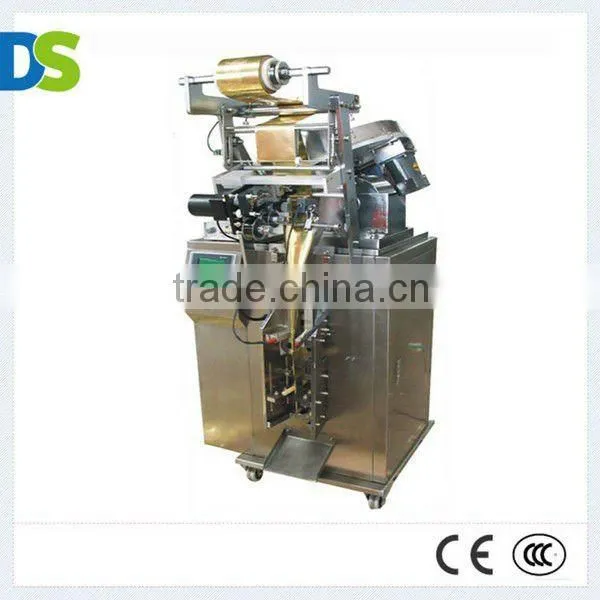

Tablet Packing Machine
The processes of bag making, measuring, filling, sealing, cutting, counting and hot pressing codes can be done automatically.
Applications:

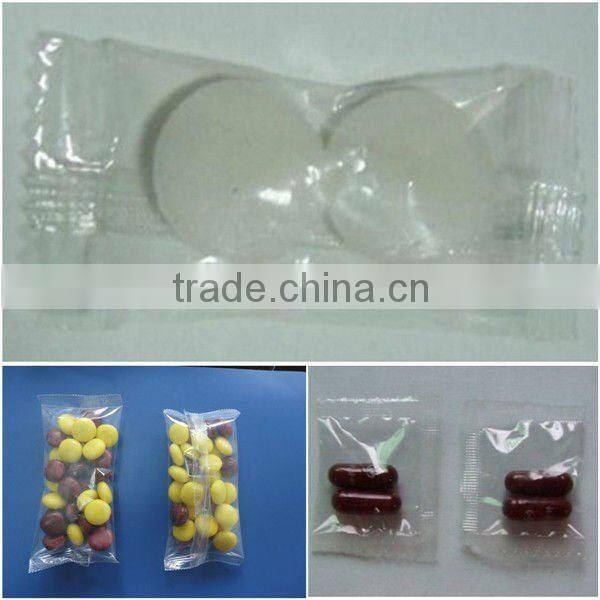

It is suitable for automatically packaging of medicines, foodstuffs, such as round sugar balls, tablets, pills... etc. Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE, PET/PE, NYLON ...etc.
If you want to make sure if it can pack for our machine, send us the packing film and product, we will test them on our machine and take video and sample bag for you, just email me for the address.
Technical Data:
| Model | DXDP-80 | ||
| Power supply | 220V, 50Hz, single phase | ||
| Power | 1.1KW | ||
| Speed | 30-60bags/min(depend on the material and specification) | ||
| Filling capacity | 1-5 pcs, 5-20 pcs, 20-50 pcs etc. | ||
| Film width | Maximum 200mm | ||
| Bag size | Length:40-120mm, Width:30-100mm | ||
| Style of bag sealing | 3 side sealing, 4 side sealing, back sealing | ||
| N.W./G.W. | Approx. 185kg/250kg | ||
| Dimension | L1050*W700*H1650mm | ||
Why our machine better than other similar machines?
1. Control system: The operation facility is controlled by Mitsubishi PLC, all functions are displayed on English digital screen.
2. Raw material: All stainless steel cover meets to international GMP standard.

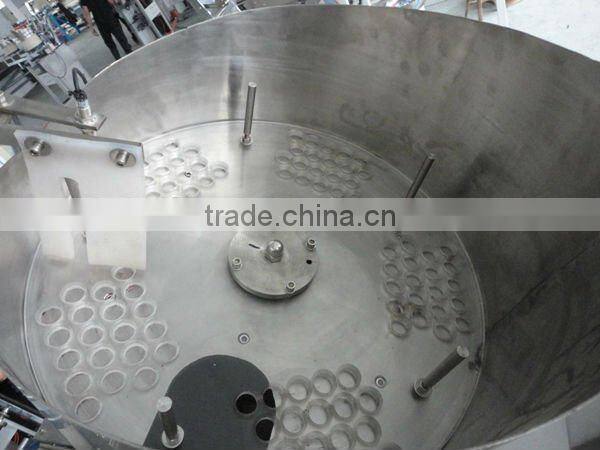

3. Dosing system: Shaking-plate for counting, which will shake the pills or capsule while packing, this makes the packing more swift and accurate.
4. Photocell controller is easy to fix location, step motor to pull the packing film.
5. Adjustment: Automatic adjustment of pouch size and filling range, no need to change any machine parts.
6. Intelligent temperature controller is used in sealing and the error of sealing temperature is at plus or minus 2 degrees.
7. Outstanding sealing system: Air cylinder and high-powered heat sealing structure ensure sealing of the bag firm, neat and with good airtightness.
8. OEM is acceptable.
9. Ribbon code printer, elevator, conveyor are as an option.
There is more item information in our databases, welcome to inquire us anything. We will reply you within 24 hours.
How to use: please see the User Manual to see how to set up and use this machine.
After-sale service:
1. One year quality warranty and spare parts will be shipped with machine together.
2. 24 hours/365 days online technical service.
3. Training offered.
Pictures:
