VFL6504 fiber optic visual fault locator
- 300 Piece / Pieces per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Sinomor | |
| Model Number | VFL6504 |
Product Description
VFL6504 fiber optic visual fault locator is an ecomomic mental case solution
It adopts the aluminum alloy case, which could be painted to different colors. The aluminum alloy material makes touching more confortable and smooth.

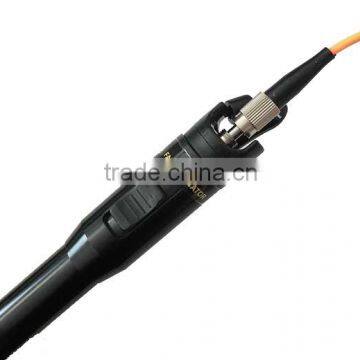

VFL6504 series fiber optic visual fault locator provides a stable visible red light for users to easily locate fiber faults, broken or micro-bend in installation or maintenance of optical network.
With the modulation function, it is also applicable for end to end fiber identification.
Features
- Fiber optic visual fault locator
- Aluminum alloy body and light weight
- Removable ferrule
- Multi output power available

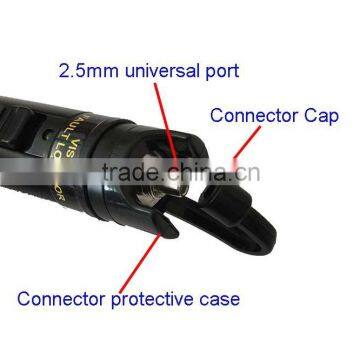

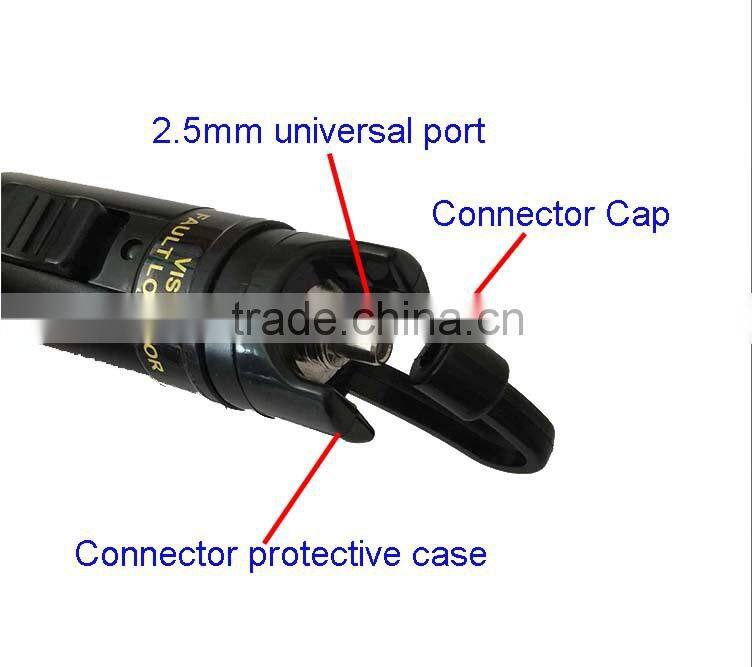

- 2.5 mm universal connector
- Constant and stable output power
- CW or 2Hz modulated signal
- Low battery warning
- Up to 60 hours battery life
Specification
Model | VFL6504 |
Central Wavelength (nm) | 650±10 |
Emitter | FP-LD |
Output Power (mw) | 1/3/5/10…. |
Optical Connector | 2.5mm universal |
Modulation (Hz) | 2~3 |
Battery | AA (2pcs) |
Operating Time (h) | >65@650nm&1mw |
Operating Temperature (°C) | -10~+45 |
Storage Temperature (°C) | -40~+70 |
Dimension (mm) | 15*160 |
Weight (g) | 110 (excluding battery) |
Standard Accessories
1) Main Unit
2) Battery
3) Cleaning Stick
4) Carrying Bag
Ordering Information
VFL6504-OP
1) OP=Output Power
OP1: 1mw
OP2: 3mw
OP3: 5mw
OP4: 10mw
OP5: 15mw
OP6: 20mw
1. Standard warranty is 18 months.
2. Extended warranty is also available as per your request.
1) Fiber opticl visual fault locator +battery+replacement ferrule+carrying pouch+battery+box
