Specifications
1. Fiber Optic Visual Fault Locator2. 2.5mm universal connector
4. Different output available
5. Up to 40 working hours

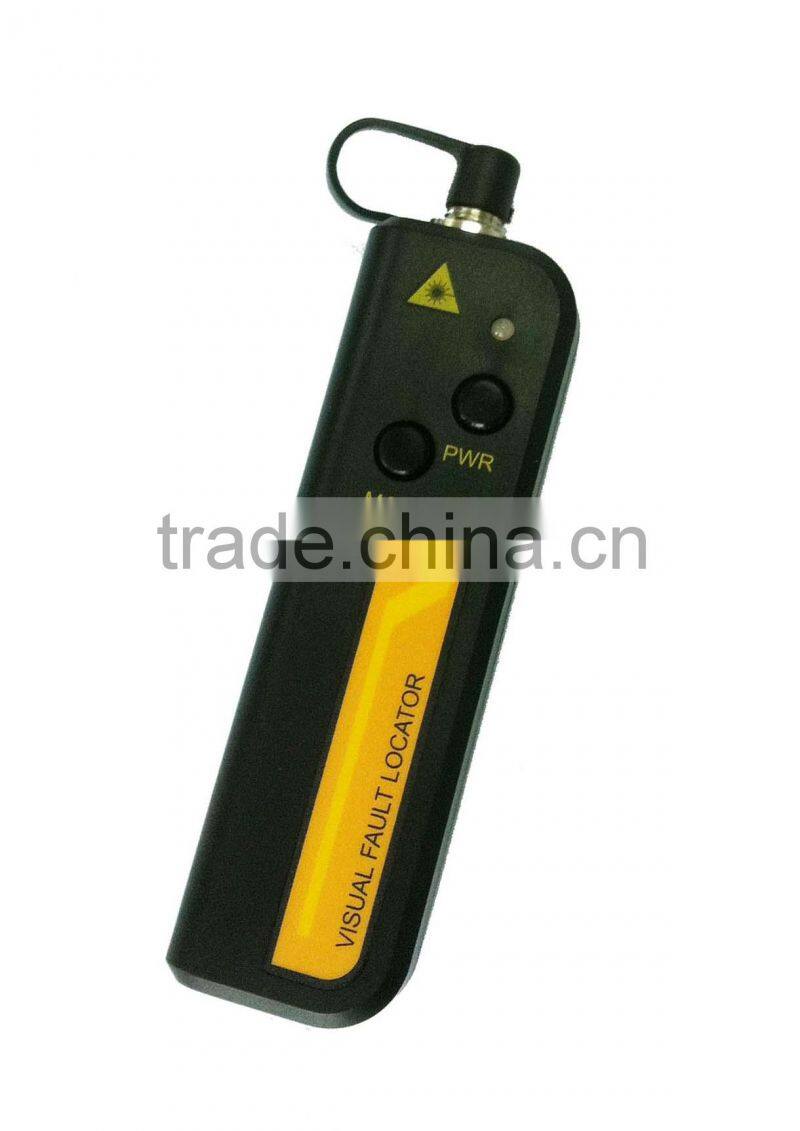

VFL6500 Series Fiber Optic Visual Fault Locator is the best selling model. It provides a stable visible
red light for users to easily locate fiber faults, broken or micro-bend in installation or maintenance of
optical network.
With the modulation function, VFL6500 Series Fiber Optic Visual Fault Locator is also applicable for end to end fiber identification.
Features
- Fiber Optic Visual Fault Locator
- Pocket size and light weight
- Constant and stable output power
- CW or 2Hz modulated signal
- Low battery warning.
- Up to 40 hours battery life
Specification
Model | VFL6500 |
Central Wavelength (nm) | 650nm±10nm |
Emitter | FP-LD |
Output Power (mw) | 1/10/15/20 |
Connector | 2.5mm universal |
Modulation (Hz) | 2 |
Battery | AAA (2pcs) |
Operating Time (hrs) | 40 |
Operating Temperature (°C) | -10~+60 (°C) |
Storage Temperature (°C) | -25~+70 (°C) |
Dimension (mm) | 100*30*18 |
Weight (g) | 60 |
Standard Accessories
1) Main Unit
2) Battery
3) Cleaning Stick
4) Carrying Bag
Ordering Information
VFL6500-OP
1) OP=Output Power
OP1: 1mw
OP2: 10mw
OP3: 15mw
0P4: 20mw
1. Standard warranty is 18 months.
2. Extended warranty is also available with addtional and reasonable cost.
3. Different output power is also available at your request.
1. Fiber Optic Visual Fault Locator + cleaning stick+carrying pouch+batter+box.
