Help CenterLS6202 Optical Laser Source
Related Products
-
BRI3300 Optical Insertion Loss & Return Loss TesterUS$ 1,000 - 3,000MOQ: 1 Set -
BLS3201 Benchtop PLC Light SourceUS$ 1,000 - 2,000MOQ: 1 Set
-
BVA3400 Benchtop Variable Optical AttenuatorUS$ 500 - 3,000MOQ: 1 Set
-
BPM3100 Benchtop Optical Power MeterUS$ 500 - 3,000MOQ: 1 Set
-
BVA3400 Programmable Variable Optical Attenuator,Bench-top ModelUS$ 500 - 3,000MOQ: 1 Set
Specifications
1. Handheld optical laser source2. High stability
3. Max 4 wavelength
4. 10 minutes auto-off function
Overview

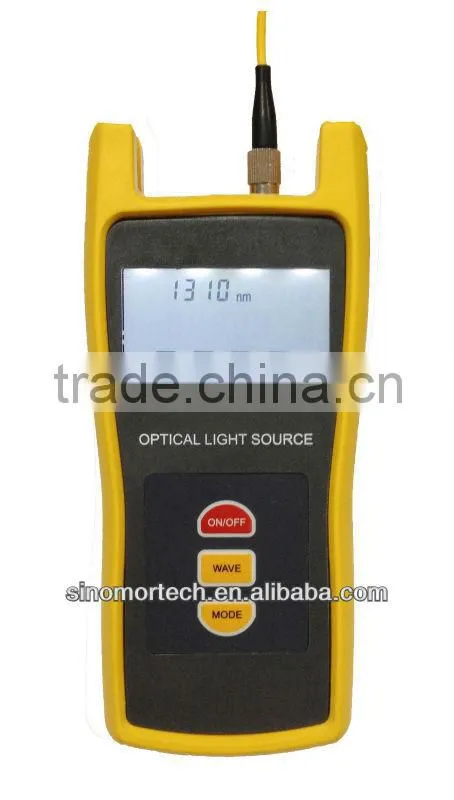

LS6202 series optical laser source is designed to work with PM6102 series optical power meter.
LS6202 series optialc laser source have Max quad-wavelegnth output, large LCD screen,10 minutes auto-off function, low battery indication, and 3 types of modulation.

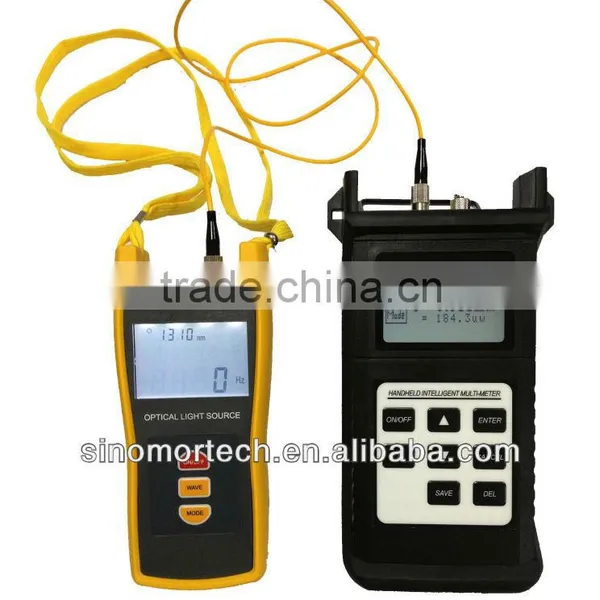

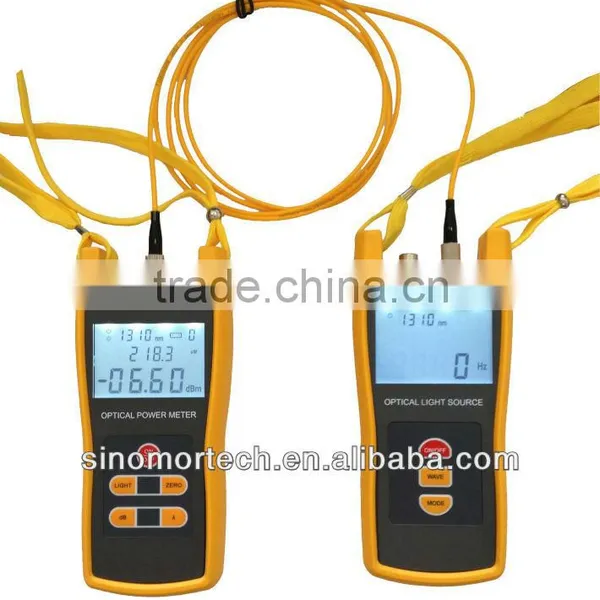

Together with PM6102 optical power meter,they combine a fast,stable and cost effective test solution.
Features
- Large LCD screen
- Max 4 wavelength output
- Stable output power
- 10 minutes auto-off function
Specifications
Type |
LS6202 |
||
Wavelengths (nm) |
1310/1550 |
850/1300 |
850/1300/1310/1550 |
Emitter Type |
FP-LD (optional LED for MM) |
||
Typical Output Power (dBm) |
-6~-7 (-19~-20dBm for LED) |
||
Spectral Width (nm) |
≤10 |
||
Output Stability (dB) |
±0.05@15mins ±0.1dB/ 8hours |
||
Modulation (Hz) |
CW, 270,1K, 2K |
||

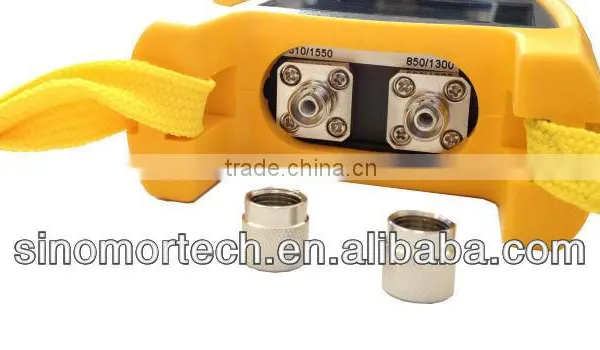

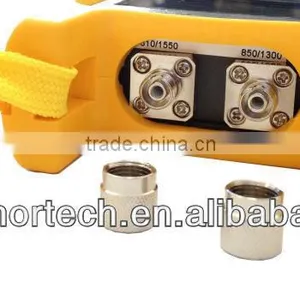

Optical Connector |
FC/PC |
||
Power Supply |
AA (3pcs) |
||
Working Time (h) |
45 |
||
Operating Temperature (°C) |
-10~+60 |
||
Storage Temperature (°C) |
-25~+70 |
||
Dimension (mm) |
175x82x33 |
||
Weight (g) |
295 |
||
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
Ordering Information
LS6202-L-C-W | ||
Laser (L) |
Connector (C) |
Wavelength (W) |
|
L1: FP-LD (SM) L2: LED 50/125um (MM) L2: LED 62.5/125um (MM)
|
C1: Standard FC/PC C2: Interchangeable FC/SC/ST/PC C3: Interchangeable FC/SC/ST/APC
|
W1: 1310/1550nm W2: 850/1300nm W3: 1310/1490/1550nm W4: 1310/1550/1625nm W5: 850/1300/1310/1550nm W6: 1310/1490/1550/1625nm W7: Others |
