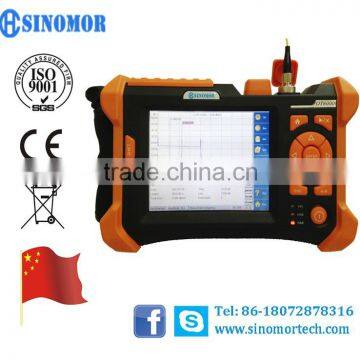

OT6000 PON OTDR 1310/1550/1625nm

OT6000 PON OTDR 1310/1550/1625nm thumbnail-1
OT6000 PON OTDR 1310/1550/1625nm photo-1
US$ 1 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Sinomor
Model Number:
OT6000
Contact Supplier Request Quote Chat Now
Hangzhou Sinomor Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Sinomor
Model Number OT6000

Specifications

1. PON OTDR 1310/1550/1625nm
2. Large touch LCD screen
3. Added visual fault locator function
4. 10000 traces storage


Product Description



OT6000 series  PON OTDR 1310/1550/1625nm has large dyanmic range and multi-wavelength.It can support regular SM,MM and PON test with wavelength 850/1300nm, 1310/1550nm,1310/1490/1550nm or 1625nm which cover most of customers' test requirement.



With the large,colorful touch screen,the OT6000 series  PON OTDR 1310/1550/1625nm   can clealy dispaly the traces and give customers very comfortabletest exprerience.



With 2m extra-short event deadzone, OT6000 series  PON OTDR 1310/1550/1625nm can quickly and precisionly locate the events and save the traces for further edition.The max storage capacity is 10000 traces.



With the strong function software,the saved traces can be analized,reivewed,edited or printed.



With the added VFL function,the OT6000 series   PON OTDR 1310/1550/1625nm can visually locate

the breaks or micro-bend which is convenient for shorit-distance faults location.



OT6000 seies  PON OTDR 1310/1550/1625nm   is an ideal tool for your installation,test and maintenance.

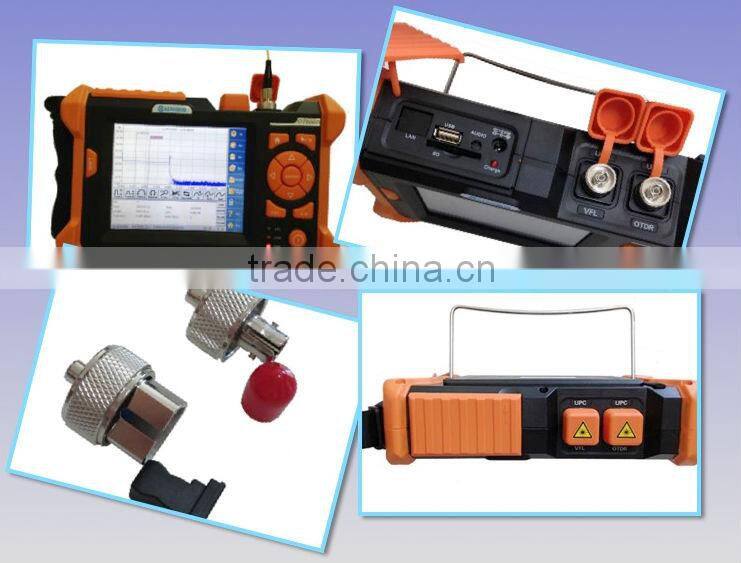

OT6000 PON OTDR 1310/1550/1625nm



Features

1.  PON OTDR 1310/1550/1625nm with Automatic Measurement Mode

2.  Multi-wavelength Measurement Mode

3.  Trace Fixing Function

4.  Multi-wavelength Analysis Function

5.  FTTx Online Test Function

6.  More than 8-hour-standby

7.  More than 10,000 traces storage with Bellcore (*.sor) file format

8.  Communication Light Detection

9.  Connection Status Detection

10. Fast Measurement Mode Switching

11. OTDR Traces Manager Software

  • Review and analysis of tested traces
  • Display traces, event list, test parameter and test results and so on.
  • Bulk files amendment and batch printing.
  • Edition and analysis of test traces in PC and generation of different forms of test reports according to user needs.

12 . Flexible Printing Mode

  • The single-page single-trace printing mode
  • The batch-printing mode
  • The single-page multi-traces printing mode
  • The printing mode of multi-waveform display.
  • To provide the personalized selection of printing options and page setup.

13.  Waveform Difference Comparison Function

       Several waveforms can be displayed in one same window, which is easy to find parameter changes caused

       by fiber aging or other reasons.



Specification



Model

OT6000

Wavelength (nm)

850/1300

1310/1550

1310/1490/1550

1625

Dynamic Range (dB)2

23/21

32/30

34/32

36/34

38/36

34/32/32

38/36/36

304

325

344

365

Pulse Width (ns)

5,20,40,

80,160,

320,640,1280

5,20,40,80,160,320,640,1280,2560,5120,10240,20480

Event Dead Zone (m)3

2

2

Attenuation Dead Zone (m)3

9

9

Linearity (dB/dB)

±0.05 dB/ dB

Loss Threshold (dB)

0.05

Loss Resolution (dB)

0.01

Sampling resolution (m)

0.125 to 8

Sampling Point (k)

32

Distance Accuracy (m)

±(1 m + 5×10-5× distance + sampling interval)

Distance Range (km)

0.3 to 180

Refreshing Time (s)

0.2

Trace Capacity

SD Card (2G), > 10000 pieces

Measurement Time (s)

 5,10,15,30,60,120,180

Visual Fault Locator

Wavelength (nm)

650

Output power (dBm)

≥-3

Distance (km)

<=3

General Information



Connector

FC/UPC (Optional PC&APC)

Data Port

USB/SD card

Power

Lithium battery; continuing working duration ≥ 8 hours

Working Temperature

(°C)

-10~+50

Storage Temperature (°C)

-40~+70

Relative Humidity

0% to 95% (non condensation)

Weight (kg)

1.5

Dimension (cm)

150×235×66



Remarks:

1. The parameter in the technical specification is tested with PC Connector and ignores the uncertainty

    caused by different fiber refractive index.

2. Test condition of Dynamic Range: Max Pulse Width and 3 minutes average time.

     That is (180km/20480ns/3min).

3. Test condition of Dead Zone: Reflection event distance is within 4Km, reflection strength < -35dB

     and Min Pulse Width.

4. This Dynamic Range is tested with filter.

5. This Dynamic Range is tested without filter.



Standard Accessories

1)   Main Unit

2)   Cleaning Stick

3)   Lithium Battery

4)   Trace Manager Software CD

5)   USB cable

6)   Carrying case

7)   Calibration Certificate

8)   CE certificate

9)   Quick Reference Manual

10)        Manual

11)        Power Adapter


Our Services



1. Standard warranty is 12 months.

2. Extended warranty is available with addtional and reasonable cost.
