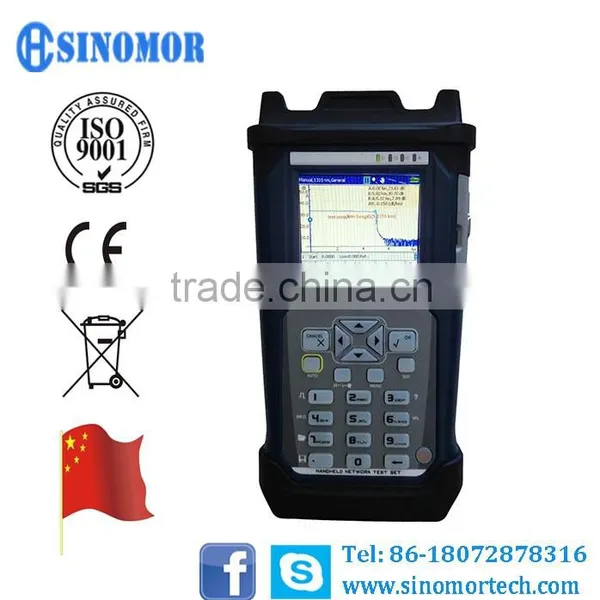

OT6200 series PON OTDR 1310/1490/1550/1625nm is multi function OTDR. It provides comprehensive optical test for metro, access/FTTx, and LAN network.
Also OT6200 series PON OTDR 1310/1490/1550/1625nm is a lightweight, flexible and applicable for both indoor and outdoors test. It is a good choice for service providers validating at installing phase or troubleshooting at running phase.
Features
- PON OTDR 1310/1490/1550/1625nm
- High-resolutioncolorful screen, easy to read and operate even under sunlight.
- Shockproof designed for field application.
- Easy detecting and characterizing fiber with simple and friendly keys.
- Covering all OTDR functions for whole optical link testing and maintaining.
- PON OTDR supports maximum 4 wavelengths (1310/1490/1550/1625nm) for fiber testing, and automatic switching multi-wavelength OTDR testing.
- Regular OTDR provides more flexible dynamic range: 40dB, 35dB and 30dB.
- 0.8m event dead zone and 7m attenuation dead zone for pinpoint event location.
- Support VFL function and optional optical power meter function and so on
Specification
Model |
OT6200-TS |
OT6200-TN |
OT6200-TF |
OT6200-QT |
OT6200-QS |
Wavelength (nm) |
1310/1550/1625 |
1310/1490/1550 |
1310/1550/1650 |
1310/1490/1550/1625 |
1310/1490/1550/1650 |
Dynamic Range (dB) |
39/37/38 |
39/37/37 |
39/37/38 |
39/37/37/38 |
39/37/37/38 |
Pulse Width (ns) |
3-20000 |
3-20000 |
3-20000 |
3-20000 |
3-20000 |
Event Dead Zone (m) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
Attenuation Dead Zone (m) |
7/7/7 |
7/7/7 |
7/7/7 |
7/7/7/7 |
7/7/7/7 |
Linearity (dB/dB) |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
Loss Threshold (dB) |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
Loss Resolution (dB) |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
Sampling Resolution (m) |
0. 125-1 |
0. 125-1 |
0. 125-1 |
0. 125-1 |
0. 125-1 |
Sampling Points |
256K |
256K |
256K |
256K |
256K |
Distance Uncertainty (m) |
±(0.75+0.0010%×distance + sampling resolution) |
||||
Distance Range (km) |
180 |
180 |
180 |
180 |
180 |
Typical Real-time Refresh (Hz) |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
Memory Capacity |
500 traces |
500 traces |
500 traces |
500 traces |
500 traces |
Measurement Time |
10s-180m, user defined |
10s-180m, user defined |
10s-180m, user defined |
10s~-80m, user defined |
10s-180m, User specify |
VFL Output Power (dBm) |
+3 |
+3 |
+3 |
+3 |
+3 |
General Information | |||||
Temperature |
Operating: -10°C to 50°C; storage: -40°C to 70°C |
||||
Relative Humidity |
0% to 95%(non-condensing) |
||||
Size (mm) |
80x135x250 |
||||
Weight (kg) |
1.1 |
||||
Power |
Li-lon batteries 8 hours of continuous operation as per Bellcore TR-NWT-001138 |
||||
Standard Accessory
Main Frame |
OT6200-DH |
Dual-wavelength 1310/1550nm OTDR tester, dynamic range 40/39dB. |
OT6200-DM |
Dual-wavelength 1310/1550nm OTDR tester, dynamic range 35/34dB. |
|
OT6200-DL |
Dual-wavelength 1310/1550nm OTDR tester, dynamic range 30/28dB. |
|
OT6200-TS |
Tri-wavelength 1310/1550/1625nm PON OTDR tester, dynamic range 39/37/38dB. |
|
OT6200-TN |
Tri-wavelength 1310/1490/1550nm PON OTDR tester, dynamic range 39/37/37dB. |
|
OT6200-TF |
Tri-wavelength 1310/1550/1650nm PON OTDR tester, dynamic range 39/37/38dB. |
|
OT6200-QT |
Qua-wavelength 1310/1490/1550/1625nm PON OTDR tester, dynamic range 39/37/37/38dB. |
|
OT6200-QS |
Qua-wavelength 1310/1490/1550/1650nm PON OTDR tester, dynamic range 39/37/37/38dB. |
|
Battery |
|
One 1 parallel 3 series Lithium polymer rechargeable battery for OTP6100, 10.8V. |
Power Adapter |
|
One 24V AC/DC, power adapter |
Power Cable |
|
One 2-mete-long power cable. |
Disc |
|
One disc. |
Package |
|
One package. |
Fiber Jumper |
|
One FC/FC port, single-mode, simplex, 9/125, 3-meter-long. |
VFL Function |
|
OTDR red light VFL testing option. |
Optional Configuration | ||
Functional Option |
OPM Function |
OTDR optical power PM testing option. |
OLS Function |
OTDR single-mode optical source testing option. |
|
IOTA |
Intelligent fiber link topology analyzer option. |
|
INT |
Intelligent network performance tool option. |
|
