Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Sinomor | Model Number: | OT6000 |
Product Description
Specifications

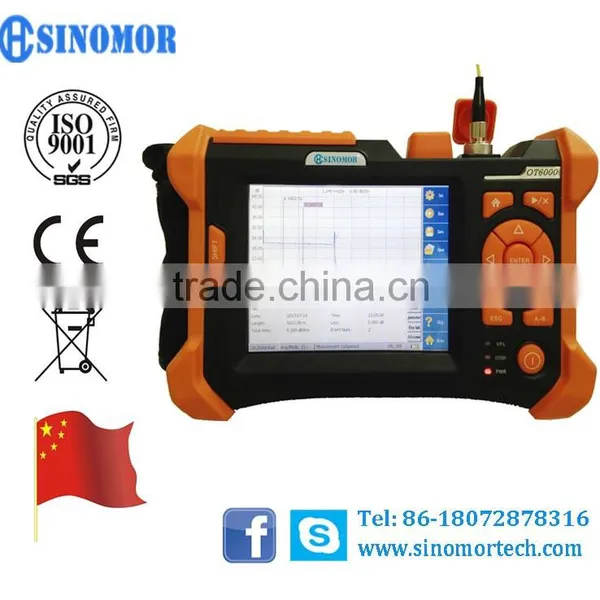

1. Fiber OTDR2. Large touch LCD screen
3. Added visual fault locator function
4. 10000 traces storage
OT6000 series Fiber OTDR has large dyanmic range and multi-wavelength.It can support regular SM,MM and PON test with wavelength 850/1300nm, 1310/1550nm,1310/1490/1550nm or 1625nm which cover most of customers' test requirement.
With the large,colorful touch screen,the OT6000 seri Fiber OTDR can clealy dispaly the traces and give customers very comfortabletest exprerience.
With 2m extra-short event deadzone, OT6000 series Fiber OTDR can quickly and precisionly locate the events
and save the traces for further edition.The max storage capacity is 10000 traces.
With the strong function software,the saved traces can be analized,reivewed,edited or printed.
With the added VFL function,the OT6000 serie Fiber OTDR can visually locate the breaks or micro-bend
which is convenient for shorit-distance faults location.
OT6000 seies PON OTDR 1310/1550/1625nm is an ideal tool for your installation,test and maintenance.
Features
1. Fiber OTDR with Automatic Measurement Mode
2. Multi-wavelength Measurement Mode
3. Trace Fixing Function
4. Multi-wavelength Analysis Function
5. FTTx Online Test Function
6. More than 8-hour-standby
7. More than 10,000 traces storage with Bellcore (*.sor) file format
8. Communication Light Detection
9. Connection Status Detection
10. Fast Measurement Mode Switching
11. OTDR Traces Manager Software
- Review and analysis of tested traces
- Display traces, event list, test parameter and test results and so on.
- Bulk files amendment and batch printing.
- Edition and analysis of test traces in PC and generation of different forms of test reports according to user needs.
12 . Flexible Printing Mode
- The single-page single-trace printing mode
- The batch-printing mode
- The single-page multi-traces printing mode
- The printing mode of multi-waveform display.
- To provide the personalized selection of printing options and page setup.
13. Waveform Difference Comparison Function
Several waveforms can be displayed in one same window, which is easy to find parameter changes caused
by fiber aging or other reasons.
Specification
Model | OT6000 | |||||||||||
Wavelength (nm) | 850/1300 | 1310/1550 | 1310/1490/1550 | 1625 | ||||||||
Dynamic Range (dB)2 | 23/21 | 32/30 | 34/32 | 36/34 | 38/36 | 34/32/32 | 38/36/36 | 304 | 325 | 344 | 365 | |
Pulse Width (ns) | 5,20,40, 80,160, 320,640,1280 | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 | ||||||||||
Event Dead Zone (m)3 | 2 | 2 | ||||||||||
Attenuation Dead Zone (m)3 | 9 | 9 | ||||||||||
Linearity (dB/dB) | ±0.05 dB/ dB | |||||||||||
Loss Threshold (dB) | 0.05 | |||||||||||
Loss Resolution (dB) | 0.01 | |||||||||||
Sampling resolution (m) | 0.125 to 8 | |||||||||||
Sampling Point (k) | 32 | |||||||||||
Distance Accuracy (m) | ±(1 m + 5×10-5× distance + sampling interval) | |||||||||||
Distance Range (km) | 0.3 to 180 | |||||||||||
Refreshing Time (s) | 0.2 | |||||||||||
Trace Capacity | SD Card (2G), > 10000 pieces | |||||||||||
Measurement Time (s) | 5,10,15,30,60,120,180 | |||||||||||
Visual Fault Locator | ||||||||||||
Wavelength (nm) | 650 | |||||||||||
Output power (dBm) | ≥-3 | |||||||||||
Distance (km) | <=3 | |||||||||||
General Information |
| |||||||||||
Connector | FC/UPC (Optional PC&APC) | |||||||||||
Data Port | USB/SD card | |||||||||||
Power | Lithium battery; continuing working duration ≥ 8 hours | |||||||||||
Working Temperature (°C) | -10~+50 | |||||||||||
Storage Temperature (°C) | -40~+70 | |||||||||||
Relative Humidity | 0% to 95% (non condensation) | |||||||||||
Weight (kg) | 1.5 | |||||||||||
Dimension (cm) | 150×235×66 |
Remarks:
1. The parameter in the technical specification is tested with PC Connector and ignores the uncertainty
caused by different fiber refractive index.
2. Test condition of Dynamic Range: Max Pulse Width and 3 minutes average time.
That is (180km/20480ns/3min).
3. Test condition of Dead Zone: Reflection event distance is within 4Km, reflection strength < -35dB
and Min Pulse Width.
4. This Dynamic Range is tested with filter.
5. This Dynamic Range is tested without filter.
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Lithium Battery
4) Trace Manager Software CD
5) USB cable
6) Carrying case
7) Calibration Certificate
8) CE certificate
9) Quick Reference Manual
10) Manual
11) Power Adapter
1. Standard warranty is 12 months.
2. Extended warranty is available with addtional and reasonable cost.
