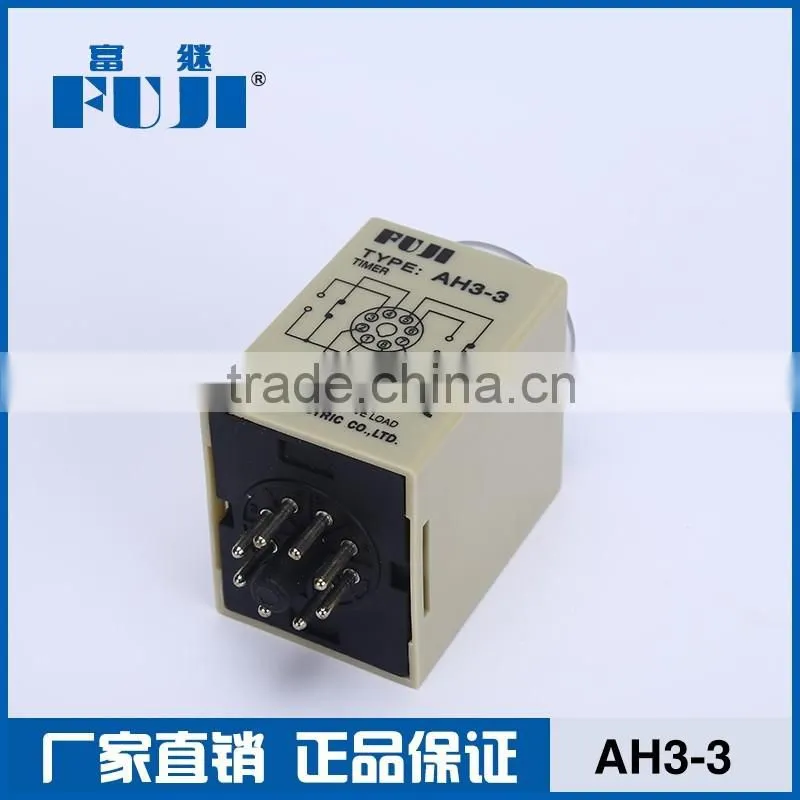

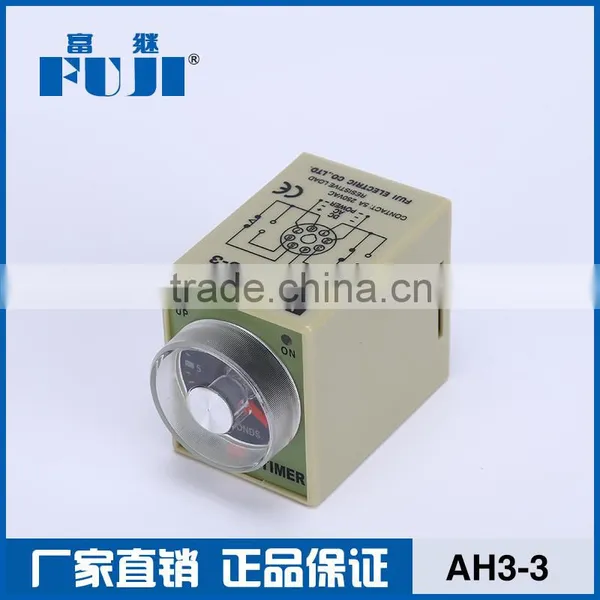

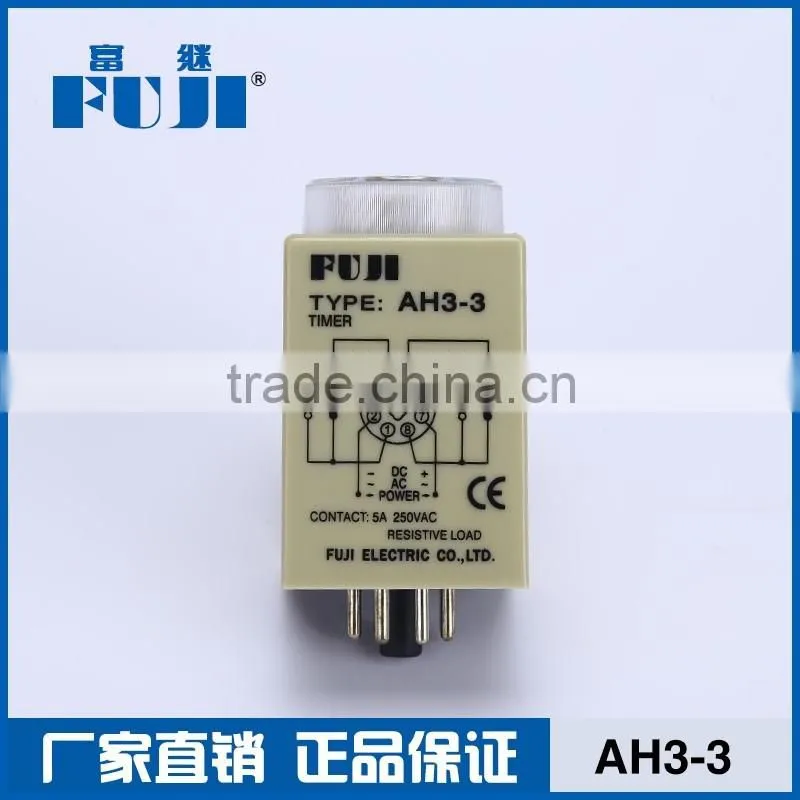

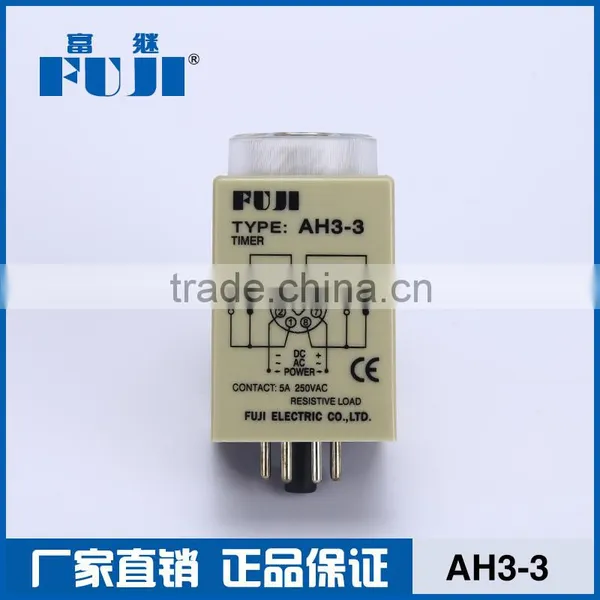

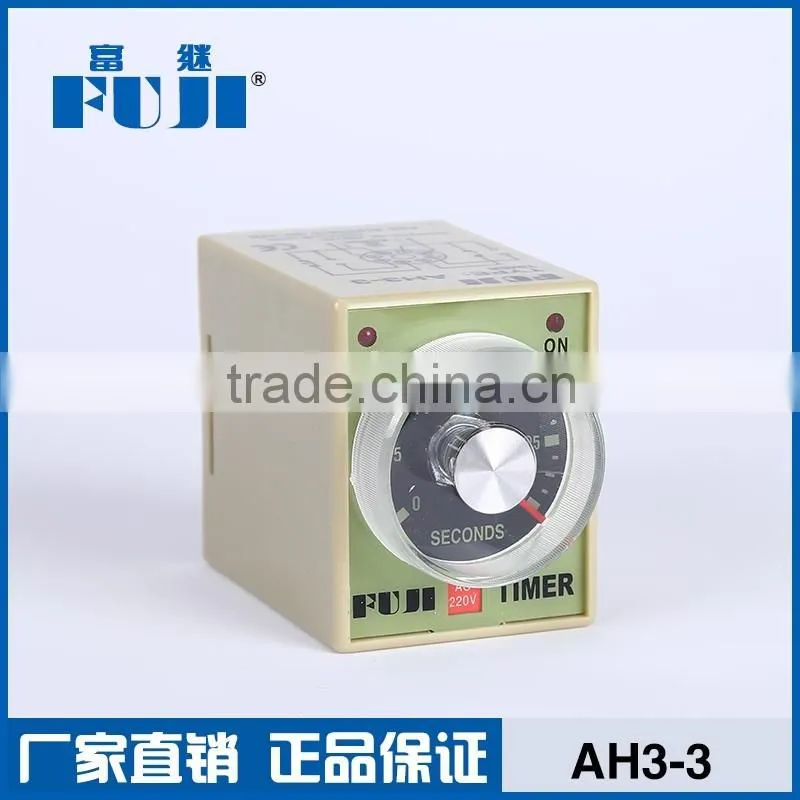

Digital Time Relay AH3-3

Digital Time Relay AH3-3 thumbnail-1
Digital Time Relay AH3-3 thumbnail-2
Digital Time Relay AH3-3 thumbnail-3
Digital Time Relay AH3-3 thumbnail-4
Digital Time Relay AH3-3 photo-1
Digital Time Relay AH3-3 photo-2
Digital Time Relay AH3-3 photo-3
Digital Time Relay AH3-3 photo-4
US$ 3 - 3.8 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FUJI
Model Number:
AH3-3
Contact Supplier Request Quote Chat Now
Zhejiang Fushi Relay Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FUJI
Model Number AH3-3
Theory Time Relay
Usage Protective
Size Miniature
Protect Feature Sealed
Contact Load Low Power

Digital Time Relay AH3-3

Product Description
Classification Multi Range Timer Multi Range Timer Multi Range Timer
Specification Model AH3-3 AH3-B AH3-NB
Dimension 50H × 40W × 57.5D 50H × 40W × 57.5D 50H × 40W × 57.5D
Mounting & Socket Surface(-N) PF083A (E) PF083A (E) PF083A (E)
Flush(-Y) US-08 P3G-08 US-08 P3G-08 US-08 P3G-08
Full Timing Range SEC:1,3,6,10,12,30,60 A:1S,10S,1M,10M A:1S,10S,1M,10M
MIN:3,6,10,12,30,60 B:3S,30S,3M,30M B:3S,30S,3M,30M
HR:3,6,10,12,30 C:6S,60S,6M,60M C:6S,60S,6M,60M
  D:1M,10M,1H,10H D:1M,10M,1H,10H
  E:3M,30M,3H,30H E:3M,30M,3H,30H
Rated Voltage (V) AC: 24,110,220,240,380,50/60Hz AC: 24,110,220,240,380,50/60Hz AC: 24,110,220,240,380,50/60Hz
DC: 12,24 DC: 12,24 DC: 12,24
Indicator Operating ON-UP operating ON-UP operating Time operating flicker
O/P Contact Model AH3-1 AH3-2 AH3-3 AH3-1 AH3-2 AH3-3 Model A/B
Time Limit 1C 5A   5A     5A   5A
Time Limit 2C   5A   5A     5A
Instantaneous 1C     5A   5A 5A   5A
Life Mechanical 5×106 Times 5×106 Times 5×106 Times
Electrical 105 Times 105 Times 105 Times
Accuracy Repeat Error ±1% max ±1% max ±1% max
Setting Error ±10% max ±10% max ±10% max
Voltage Error ±1% max ±1% max ±1% max
Temp Error ±2% max ±2% max ±2% max
Reset Time 0.1 sec max 0.1 sec max 0.1 sec max
Consumed Power 3VAC 3VAC 3VAC
Ambient temperature -10oC~+55oC -10oC~+55oC -10oC~+55oC
Ambient Huminity 48~85% RH 48~85% RH 48~85% RH
Weight 160g 160g 160g

 Digital Time Relay AH3-3Digital Time Relay AH3-3Digital Time Relay AH3-3



Packaging & Shipping



Packaging Details:

standard export package

Delivery Detail:

3-10 days
