Home > Electrical & Electronics > Relay & Contactor > Relay > HH52P 8 Pin 24v Relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay

HH52P 8 Pin 24v Relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay

HH52P 8 Pin 24v Relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay thumbnail-1
HH52P 8 Pin 24v Relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay thumbnail-2
HH52P 8 Pin 24v Relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay thumbnail-3
HH52P 8 Pin 24v Relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay photo-1

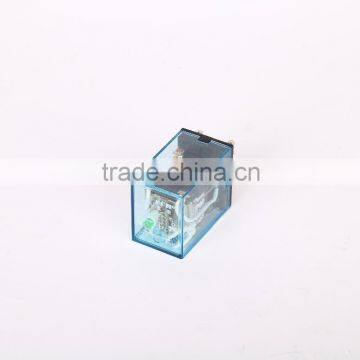

HH52P 8 Pin 24v Relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay photo-2

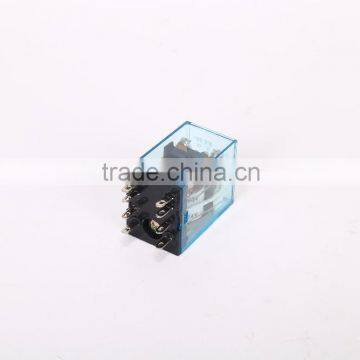

HH52P 8 Pin 24v Relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay photo-3
US$ 0.6 - 1.5 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FUJI
Model Number:
MY2NJ
Contact Supplier Request Quote Chat Now
Zhejiang Fushi Relay Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FUJI
Model Number MY2NJ
Theory Electromagnetic Relay
Usage General Purpose
Size Miniature
Protect Feature Other, Sealed, Epoxy
Contact Load Low Power

HH52P 8 Pin 24v relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay

Product Description

Technical Data



Product Model

HH52P (MY2NJ)

Outline Dimension(L×W×H) (mm)

27.5×21×35.5(mm)

Contact Form

2Z,2C

Initial Contact Resistance

50mΩ (1A 6VDC)

Coil Voltage

5VDC~110VDC; 6VAC~240VAC

Operate Time (at nomi. Volt)

25ms

Release Time (at nomi. Volt)

25ms

Coil Power(W)

0.9W, AC:1.2VA

Contact Rating

5A 250VAC/30VDC

Insulation Resistance

1000MΩ,500VDC

Dielectric Strengh

Between Open Contact

1000VAC 1min.

Between Coil and Contact

1500VAC 1min.

Electrical Life

1×105

Mechanical Life

1×107

Max. Switching Voltage

250VAC/30VDC

Max. Switching Current

7A

Max. Switching Power

210W/1750VA

Impact Resistance

Stability 100m/s2  Intensity 1000m/s2

Humidity

98% R.H.+40%

Temperature Range

-55~+70°C

Vibration Resistance

 1mm 50~55Hz

Construction

Dust vover



 Suitable socket:PYF08A

HH52P 8 Pin 24v relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led RelayHH52P 8 Pin 24v relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay





Packaging & Shipping



Packaging Details:

standard export carton box

Delivery Detail:

15-25 days after confirm the order

 HH52P 8 Pin 24v relay AC Coil High Quality MY2NJ General Purpose Relay 2NO+2NC Led Relay
