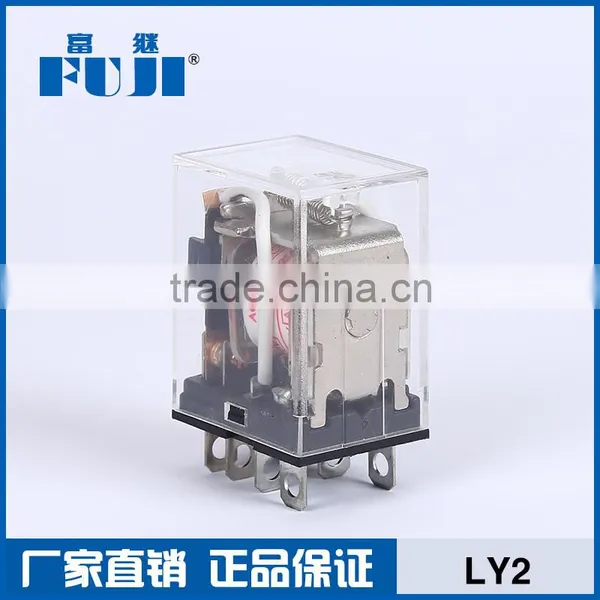

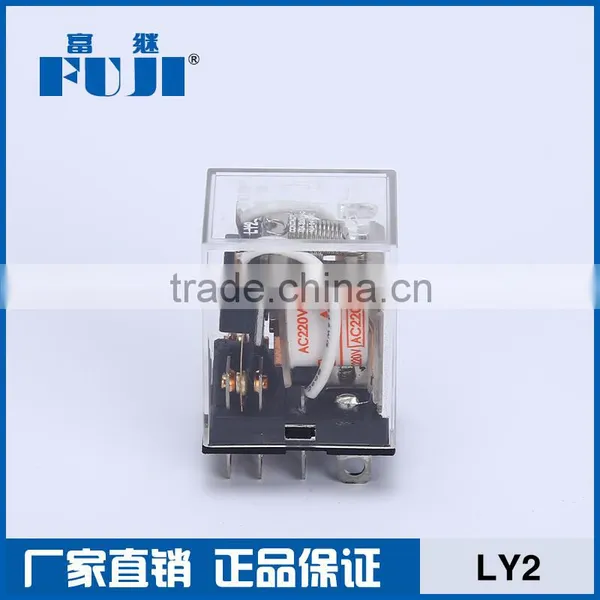

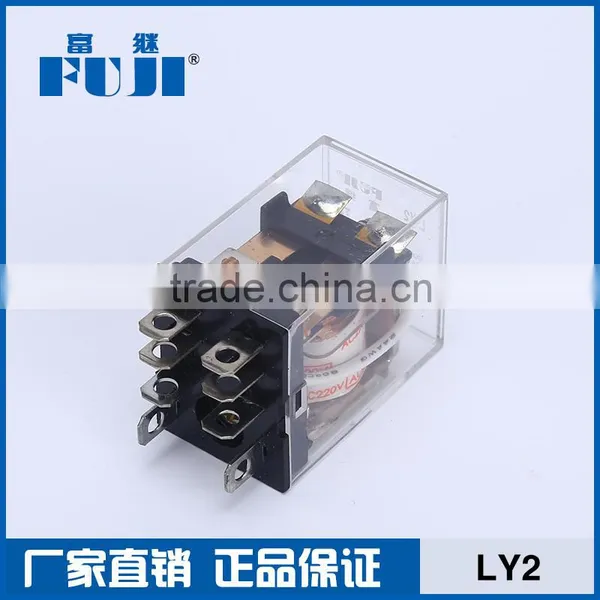

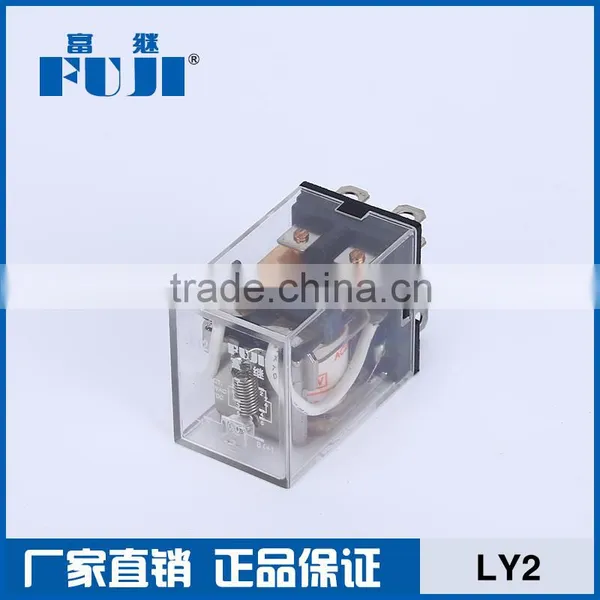

China supplier General Purpose Relays JQX-13F-2Z PCB Relay
Features:
Small size, high switching power,high sensitivity, a wide range of variations and options available
Specififations:
1)Model no: JQX-13F-2Z(LY2)
2)Dimensions(mm): 27.5x21.5x35mm
3)Contact form:2Z
4)Contact capacity: 10A/250VAC
5)Coil voltage:DC: 6~220VDC AC: 6~380VAC
6)Coil power : DC:≤0.9W AC:≤1.2VA
7)Pick-up : DC:≤75% AC:≤80%
8)Drop-out: DC:≥10% AC:≥30%
9)Contact resistance:≤50mΩ
10)Insulation resistance:≥100mΩ
11)Electrical life: 105 times
12)Mechanical life: 107 times
13)Dielectric strength:
Between open contacts: 1000v rms
Between coil and contact: 1500v rms
14)Mounting form: P.C.B&Socket
15)Operating temperature: -40°C~+55°C
16)Fitted socket: PTF08A,PTF08A-E
17)Like Fushi HH62P
18)Remark: With lamp -N, Flance:-F, with button -S, PCB:-O
