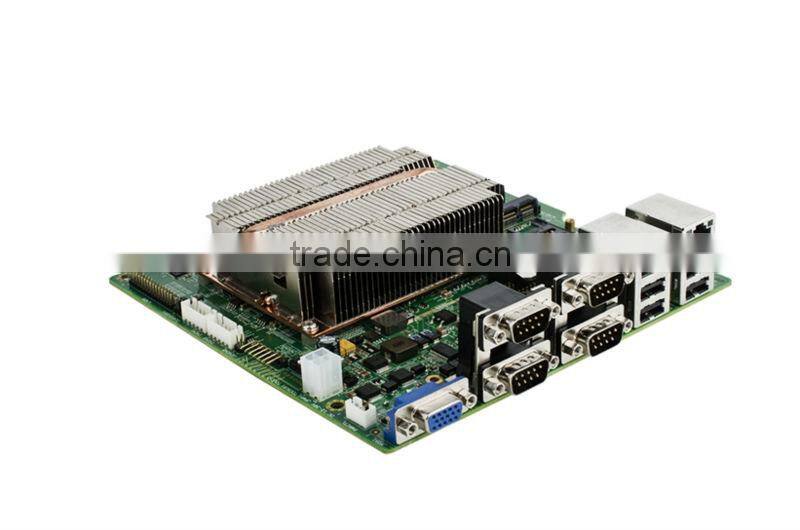

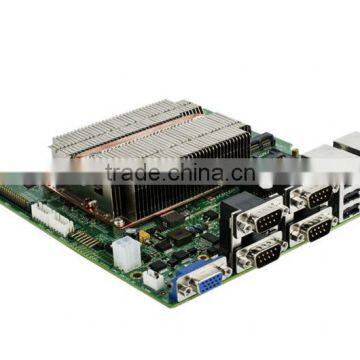

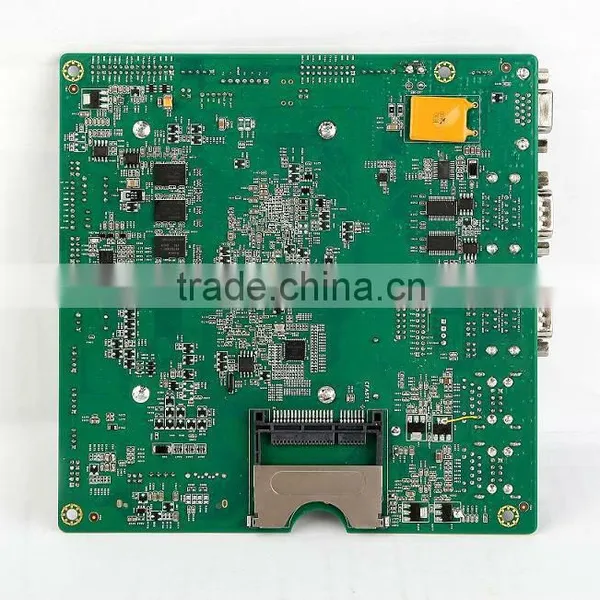

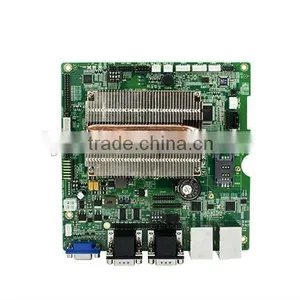

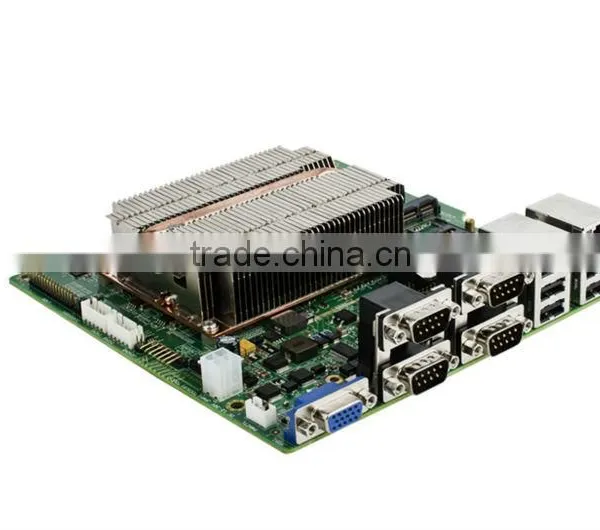

Fanless Intel Atom D2550 Duo Core Mini-ITX Motherboard GMX-IL1916 Single Board Computer
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- SHENZHEN
- Credit Card
You May Like
- Network Security PC Motherboard Intel Atom 4C4T C3558R CPU 6*RJ45 2*SFP Gbe 2*SFP+ 10G Bypass PCIe x8 Expansion Mainboard
- Intel 12th Gen Alder Lake Quad Core N95 3.4GHz DDR4 HDMI LVDS mini-ITX Motherboard for POS SYS
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5105 CPU 16GB DDR4 HDMI EDP Mainboard for POS
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5095 CPU Dual DDR4 HDMI VGA RJ45 12VDC Mainboard
- China original Bo CPU PCA-6743 for India power system
- Onboard Intel Core i7-8565U 4.6GHz Computer Motherboard for Industrial Machine Vision Automation 4*Gbe LAN 6*COM
Product Details
Products Status: | Stock | Application: | Other | Chipset Manufacturer: | Intel |
Form Factor: | Mini-ITX | Memory Type: | DDR3 | Graphics Card Type: | Integrated |
Hard Drive Interface: | SATA | FSB / HT: | 800MHz | Model Number: | GMX-IL1916 |
Place of Origin: | Guangdong, China |
Product Description
Specification | ||
Processor | CPU | Intel®Atom ™ D2550 -1.86GHz (Dual Core) |
CPU Package | Onboard | |
FSB | DMI x 4 10Gb/s | |
Chipset | G82NM10 | |
BIOS | System BIOS: SPI BIOS | |
Memory | Tech Architecture | Single Channel DDR3 1066 MT/s |
Capacity | Onboard 2GB DDR3 | |
Socket | N/A | |
Display | Graphic Controller | Intel® GMA3650 Graphic Media accelerator |
LVDS | Support single channel 18bit output, dual channel 24bit output (optional); support backlight brightness adjustment. | |
Max. Resolution: 1600 x 1200 | ||
Touch Panel | Support 4-5 Wire Resistive Touch Panel | |
HDMI | N/A | |
N/A | ||
VGA | 1* standard DB15 VGA port | |
Max. Resolution:1920 x 1200 | ||
Dual Display | LVDS + VGA | |
LAN | Controller | LAN1: Intel® 82583V GbE |
LAN2: Intel® 82583V GbE | ||
Audio | Controller | Realtek HD ALC662 Audio decode(right&left channel + Mic) |
Super I/O | Controller | SMSC3114 |
H/W Monitor | WatchDog Timer | 0-255 Sec., provide watchdog routine. |
FAN | DC-FAN | |
TPM | Controller | N/A |
I/O | USB | 6*USB2.0 / 1.1 compatible, support max. +5V 1A.Pinheader x 2, Back I/O x 4 |
Serial Port | 4* COM (3 *RS-232, 1*RS-232/RS-422/RS-485), | |
Use jumper to select PIN9 +5V/+12V/RING function | ||
TX/RX signal, support 5000V surge protection | ||
RS485 with Electromagnetic isolation; ESD protection::Aerial Discharge±8 kV; Contact Dischage:±6 kV | ||
Parallel Port | 1*LPT | |
PS/2 | N/A | |
GPIO | 16bit GPIO, provide routine, free desine Input/Output, 5V Level. | |
IEEE 1394 | N/A | |
Expansion Slot | PCIeX16 | N/A |
PCIeX4 | N/A | |
PCIeX1 | N/A | |
PCI | N/A | |
Mini-PCIe | 1*Mini-PCIe socket, support PCIe and USB device. | |
UIM Scoket | 3G UIM Card | |
Storage | SATA | 1*SATAII, Max. transfer rate: 3Gb/s |
IDE | N/A | |
eSATA | N/A | |
C-Flash | 1*SATAII C-Fast Scoket, Max. transfer rate: 3Gb/s | |
Power Supply | Power Type | AT/ATX mode optional, DC +12V-+36V extended voltage input, support reverse power protection,30A 16 sec. automatically fuse recover;4pin power connector. |
Power Consumption | Typical PW: 14W | |
Environment | Operating Temp. | 0°C ~ 60°C |
Storage Temp. | -20°C ~ 80°C | |
Operating Humidity | 0% ~ 90% relative humidity, non-condensing | |
Storage Humidity | 0% ~ 90% relative humidity, non-condensing | |
Form Factor | Dimensions | 170 mm * 170 mm (6.69”*6.69“) |
Weight | 0.37kg | |
Regulatory Compliance | FCC, CE, RoHS |
