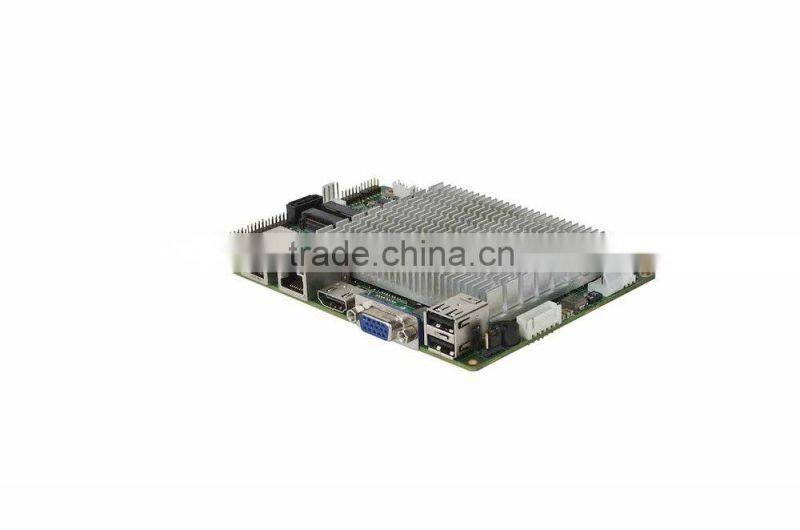

3.5" Intel Atom Cedar Trail N2600/2800 CPU Fanless Single Board Computer ENC-5891 SBC

Shenzhen Yacoo Technology Co., Ltd.
3.5" Intel Atom Cedar Trail N2600/2800 CPU Fanless Single Board Computer ENC-5891 SBC thumbnail-1
3.5" Intel Atom Cedar Trail N2600/2800 CPU Fanless Single Board Computer ENC-5891 SBC thumbnail-2
3.5" Intel Atom Cedar Trail N2600/2800 CPU Fanless Single Board Computer ENC-5891 SBC photo-1
3.5" Intel Atom Cedar Trail N2600/2800 CPU Fanless Single Board Computer ENC-5891 SBC photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
Yacoo
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Industrial Motherboard
Brand Name Yacoo
Model Number ENC-5891
ProcessorCPU Intel® Atom™Cedar Trail processor N2600 / 2800
CPU PackageOnboard
FSB800 / 1066Mhz
ChipsetG82NM10
BIOS 16M BIT SPI BIOS
MemoryArchitectureDDRIII 800 MT/s and 1066 MT/s
CapacityOnboard 2GB
SocketN/A
DisplayGraphic ControllerIntel®integrated Graphics media accelerator 3600
LVDS Support single channel 18bit output
 Max. Resolution: 1366 * 768
 Support dual channel 24bit output
 Max. Resolution: 1920 * 1200
VGA1 * DB15 standatd VGA connector
 Max. Resolution:1920 * 1200
HDMISupport HDMI 1.3A type, 19 pin
 Max. Resolution:1920 * 1200
Display PortN/A
 N/A
Dual DisplayLVDS + VGA,LVDS + HDMI or HDMI + VGA
LANControllerLAN1: LAN 1: Intel 82583V GbE Lan
  LAN2: LAN 1: Intel 82583V GbE Lan
AudioControllerRealtek ALC662 audio programming decoder(right&left channel + Mic)
Max. amplifier output: 2W
Super I/OControllerWINBOND 83627DHG
H/W MonitorWatch Dog TimerTimer 1 - 255 sec./min., support system reset
FanFanless
TPMControllerN/A
I/OUSB 6 * USB 2.0 / 1.1 compatible
Serial PortCOM1 for RS232, COM2 RS232/RS485 Jumper Optional
Parallel Port1 * Parallel port
PS/2N/A
GPIO12 Bit
SMBUS1 * SMBus 2.0
ExpansionPCIeX16 N/A
PCIeX4N/A
PCIeX1N/A
PCIN/A
Mini-PCIe1 * half size Mini-PCIe, 1 * full size Mini-PCIe, support 3G or WIFI
USIM1* standard SIM socket
StorageSATA 1 * SATAII, The max. transfer rate: 3Gb/s
M-SATA1 * half size Mini-PCIe, support SSD
IDE N/A
eSATA N/A
CF CardN/A
PowerPower TypeDC 12V @ 3A
 Power ConsumptionTypical Power:10W
EnvironmentOperating Temp.-20°C ~ 70°C
Storage Temp.-40°C ~ 85°C
Operating Humidity0% ~ 90% relative humidity, non-condensing
Storage Humidity0% ~ 90% relative humidity, non-condensing
Form Factor Dimensions3 . 5 ” 145mm x 102mm
 Weight
Regulatory ComplianceFCC, CE, RoHS compliant

3.5" Intel Atom Cedar Trail N2600/2800 CPU Fanless Single Board Computer ENC-5891 SBC
