Intel Broadwell I3/i5/i7 CPU Industrial Embedded Computers NIS-898

Shenzhen Yacoo Technology Co., Ltd.
Intel Broadwell I3/i5/i7 CPU Industrial Embedded Computers NIS-898 thumbnail-1
Intel Broadwell I3/i5/i7 CPU Industrial Embedded Computers NIS-898 thumbnail-2
Intel Broadwell I3/i5/i7 CPU Industrial Embedded Computers NIS-898 photo-1

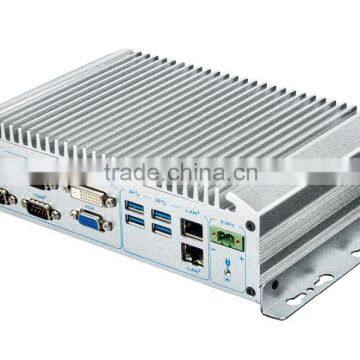

Intel Broadwell I3/i5/i7 CPU Industrial Embedded Computers NIS-898 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Embedded Computer
Brand Name:
YACOO
Model Number:
NIS-898
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Embedded Computer
Brand Name YACOO
Model Number NIS-898
Place of Origin Guangdong, China
Specification
ProcessorCPU             Intel® Haswell/Brodwell Useries CPU (Duo Core),Celeron/I3/I5/I7 CPU compatible
CPU PackageOnboard
FSBDMI
ChipsetIntel® Haswell/Brodwell U-series
BIOS            System BIOS: SPI  BIOS, re-chargeable CMOS battery 65mah
MemoryArchitechtureSinlge Channel Low voltage DDR3 1666 MT/s
CapacityMAX 16GB
SocketSODIMM
DisplayGraphic ControllerIntel® HD4000/5000/6000 series graphic media accelerator
DVIDVI-I connetor, max. resolution:4K
VGASupport VGA output
Dual DisplayVGA+DVI Synch. or asynch display
EthernetControllerLAN1: Intel®I210 GbE LAN
LAN2: Intel®I210  GbE LAN
POE power module (optional)
AudioControllerRealtek HD ALC662 audio decoder(right&left channel + MIC)
Super I/OControllerNTC6106 SIO
H/W MonitorWatchdog Timer0-255 sec., providing watchdog routine
Temp. MonitoringSupport CPU/Motherboard/HDD Temp. monitoring
I/O PortUSB 3.04 x USB 3.0 PORT,Support Max.+5V@1A.
USB 2.0            2*USB2.0 / 1.1 compatible,Support max. +5V@1A.
Serial PortCom1  9-wire RS232 TX/RX signal, support 4000V surge protection
Com2  3-wire RS232 TX/RX signal, support 4000V surge protection
Com3-COM4 3-wire RS232/RS485 optional,RS232 TX/RX signal, support 4000V surge protection, RS485 supports isolation protection.
COM5-COM6 3-wire RS232TX/RX signal, support 4000V surge protection
Optional COM7-COM10 3-wire RS232TX/RX signal, support 4000V surge protection
GPIODB15 male,12bit,providing routine, user-defined I/O, 3.3V@24mA
Expansion BusMini-PCIe1* half-size Mini-PCIe 1xsocket,support PCIe & USB device
1*full-size Mini-PCIe 1x socket, support USB 3G/4G communication module
3G UIM socket
StorageSATA            Standard SATA connector, plus external SATA HDD power connector
M-SATA1*full-size m-SATA  scoket,  Max. transmission rate: 3Gb/s
PowerPower TypeAT/ATX (Jumper selection on H/W),DC9-30V input,LTM3780 power design,support power reverse/Over-voltage protection, 2PIN 5.08mm phenix connector
LED StatusLEDHDD LED
POWER LED
L1L2 user-defined LED
COM1-COM6  LED, flicker when working
External power connector
EnvironmentOperating Temp.-20°C ~ 60°C
Storage Temp.-40°C ~ 80°C
Operating Humidity0% ~ 90% relative humidity, non-condensing
Storage Humidity0% ~ 90%  relative humidity, non-condensing
DimensionMotherboard 200 x 130mm,Box PC: 215 x 136 x 50mm
Weight
CertificateFCC, CE, RoHS
