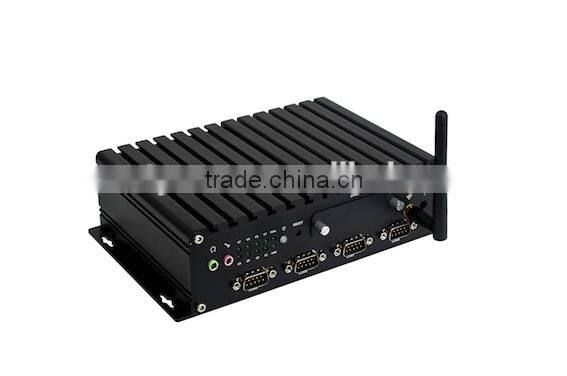

Name: Intel Atom Industrial Fanless Mini PC NIS-928 Embedded PC
Brand: YACOO
SKU: 131715431
Availability: InStock

ALL CATEGORIES

Intel Atom Industrial Fanless Mini PC NIS-928 Embedded PC

Send Inquiry to This Supplier

Mrs. jessie dai

Sales Manager

Shenzhen Yacoo Technology Co., Ltd.

Shenzhen, Guangdong, China

Message

0/5000

* Email

Processor	CPU	Intel^®Atom^™Cedar Trail processor N2600 / 2800
	CPU Package	Onboard
	FSB	800 / 1067Mhz
	Chipset	G82NM10
	BIOS	System BIOS: SPI BIOS
Memory	Architecture	Support DDR3 -800
	Capacity	Onboard 2GB memory
	Socket	N/A
Display	Graphic Controller	Intel^®3600/3650 graphic media accelerator
	LCD	N/A
	LVDS	N/A
	DP	N/A
	HDMI	N/A
	VGA	DB15 standard connector
		Max. Resolution: 1920 * 1200
	Dual Display	N/A
LAN	Controller	LAN 1: Intel 82583 V GbE Lan
LAN		LAN 2: Intel 82583 V GbE Lan
Audio	Controller	Realtek HD ALC662 audio decoder (Line-out + Mic)
Super I/O	Controller	SMSC3114*2
H/W Monitor	Watch Dog Timer	N/A
H/W Monitor	Smart Fan	N/A
TPM	Controller	AMD Geode
I/O	USB	4* USB 2.0/1.1 compatible
	Serial Port	8* RS-232 (COM3COM4: RS-485 optional)
	Parallel Port	N/A
	PS/2	N/A
	GPIO	6-in 6-out
	IR	N/A
Expansion	PCIeX16	N/A
	PCIeX4	N/A
	PCIeX1	N/A
	PC104	N/A
	PCI	N/A
	Mini-PCIe	1* Mini-PCIe socket + 1* standard SIM card socket
Storage	SATA	1* SATA(1xSATA-POWER)
	IDE	N/A
	SSD	N/A
	SD	N/A
	Compact Flash	1* Cfast card
Power	Power Type	DC +9-36V
Power	Power Consumption	Typical Power:12W
Environment	Operating Environment	-20°C ~ 60°C
	Storage Environment	-40°C ~ 85°C
	Operating Humidity	10% ~ 90% relative humidity, non-condensing
	Storage Humidity	10% ~ 90% relative humidity, non-condensing
Form Factor	Dimensions	185 mm * 127mm * 56.5mm (LWH)
Form Factor	Weight	1.28Kg
Regulatory Compliance		FCC, CE, RoHS compliant
