ARM Freescale IMX6 Android Motherboard ENC-F501

ARM Freescale IMX6 Android Motherboard ENC-F501 thumbnail-1
ARM Freescale IMX6 Android Motherboard ENC-F501 thumbnail-2

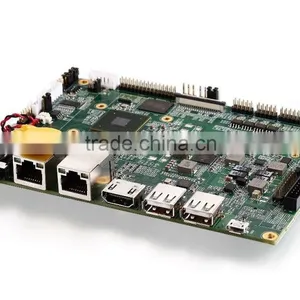

ARM Freescale IMX6 Android Motherboard ENC-F501 thumbnail-3
ARM Freescale IMX6 Android Motherboard ENC-F501 photo-1

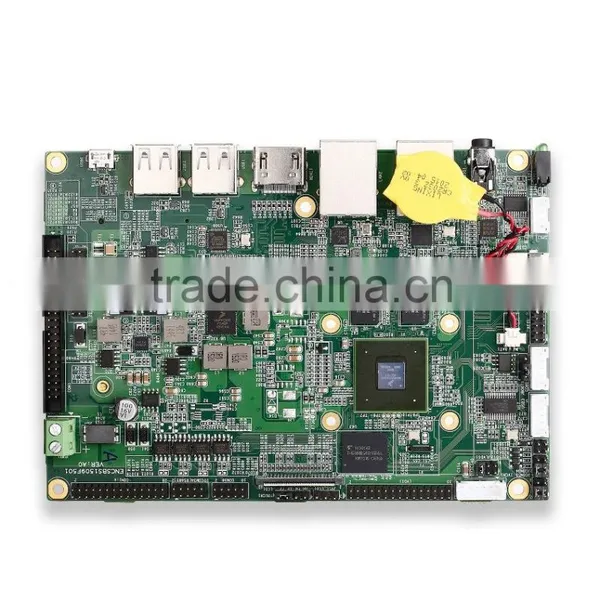

ARM Freescale IMX6 Android Motherboard ENC-F501 photo-2

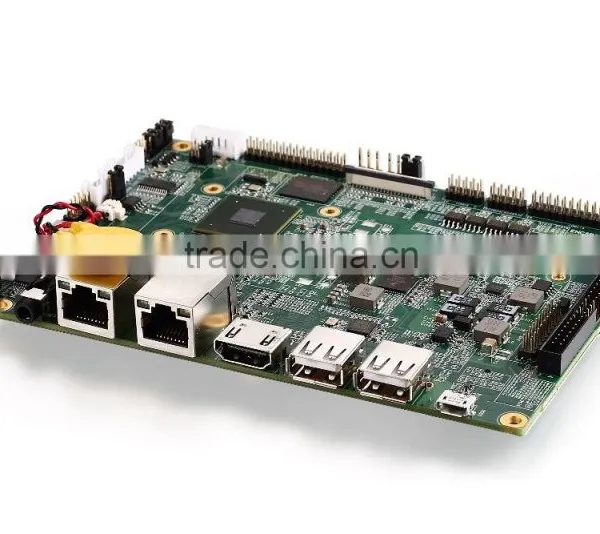

ARM Freescale IMX6 Android Motherboard ENC-F501 photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, POS, IOT, KISOK, Industrial Automation
Chipset Manufacturer:
Other, Freescale
Contact Supplier Request Quote Chat Now
Shenzhen Yacoo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Other, POS, IOT, KISOK, Industrial Automation
Chipset Manufacturer Other, Freescale
Socket Type Other, Onboard
Form Factor Other, 3.5 inches
Memory Type Other, Onboard
Graphics Card Type Integrated
FSB / HT 1.6 GHZ
Brand Name YACOO
Model Number ENC-F501
Place of Origin Guangdong, China


Processor CPU              IMX6 series CPU
Memory Architecture 2GB or 1GB (Optional)
LAN Controller CPU integrated built-in 1*Gigabit LAN
PCIe external extensible 1*Gigabit LAN
H/W Monitoring Watchdog Timer 0~255 sec., provide watchdog routine
Storage SSD EMMC 4/8/16GB EMMC optional
SD 1*Micro SD socket
Serial Port COM0 DEBUG port
COM1-COM2 3-wire RS232(rx,tx,cts,rts,gnd),TX/RX support TVS protection
COM3-6 3-wire RS232/485 optional (jumper setting),TX/RX support TVS protection, RS-485 support automatic flow control
USB 2.0 HOST 2-way USB2.0
1-way USB2.0 PINHEADER
MINI PCIE port, integrated USB signal, support 3G/4G
OTG 1-way
Display TTL LCD 18bit, CPU integrated, fit for applications with small size LCD
LVDS LCD 24bit dual channel
HDMI HDMI1.4A standard, support audio transmission
Touch Scree 4-wire resistive touch screen,  it adopts I²C Bus, TSC2007IPW touch control design
Expansion Bus CON1 2-way SPI interface+32bit GPIO
CON2 1-way I²C  interface
2-way PWM output
2-way CAN, only signal available
GPIO & Power, GND
Audio Interface MIC/Earphone
Amplifier 2W@8Ω output
Function Button KEYPAD Expansible “←”,“→”,“↑”,“↓”“Enter”"Backspace"
RTC Clock CR2302 re-chargeable battery, a) settable system RTC,Accuracy: Tolerance:<±3sec./month
Other Performance Parameter
Power Power Type DC 12V input, support power reverse and overvoltage
Power Connector 5.08mm
Power Consumption 2.5W
Environment Operating Temp. -20°C ~ 70°C
Storage Temp. -40°C ~ 80°C
Operating Humidity 0% ~ 90% ralative humidity, non-condensing
Storage Humidity 0% ~ 90%  ralative humidity, non-condensing
Formfactor Dimensions 146mm * 101mm
Weight
