Semi-automatic Blow Moulding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CM-8Y Semiautomatic Blow Molding MachineNegotiableMOQ: 1 Set -
CM-8Y Semiautomatic Blow Molding Machine/bottle Blowing MachineNegotiableMOQ: 1 Set
-
CM-12 Blow Molding Machine(3-5 Gallon)NegotiableMOQ: 1 Set
-
Automatic Plastic Bottle Making MachineNegotiableMOQ: 1 Set
-
Stretch Blow Moulding MachineNegotiableMOQ: 1 Set
Condition
New
Application
Bottle
Plastic Processed
PET
Blow Moulding Type
Stretch Blow Moulding
Automatic
No
Place of Origin
Jiangsu, China
Brand Name
JINRI
Model Number
JR-JND
Specifications
Semi-automatic blow moulding machineIt is mainly used for producing PET bottles

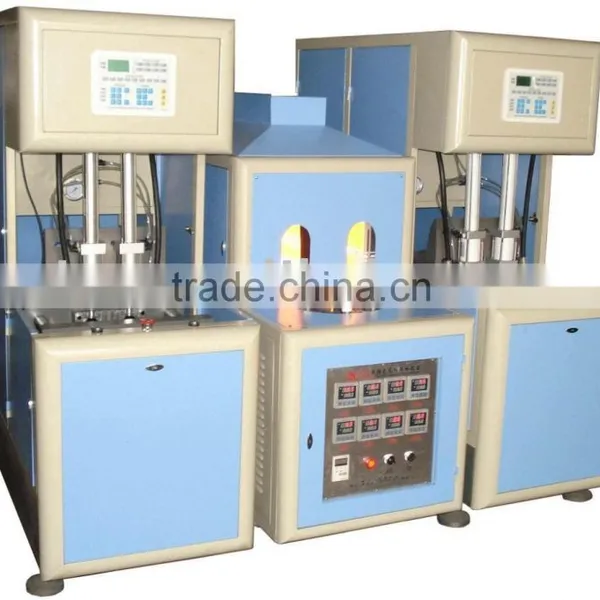

Semi-automatic blow moulding machine
JND series of semi-automatic stretch blow molding machine designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. It is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles.
Technical parameters
| General Information |
JND-880 |
|
| Clamping Force |
20T |
|
| Clamping Stroke |
230mm |
|
| Max. Stretching Stroke |
380mm |
|
| Number of Cavities |
2 Cavity |
|
| Theoretical Output |
0.1-2.5L:880BPH 3-6L :380BPH |
|
| Max. Mould Thickness |
300mm |
|
| Space Between Tie Bars |
280*500mm |
|
| Electrical System | ||
| Voltage Standard |
AC 380V/50HZ |
|
| Number of Heating Zone |
2 Sections |
|
| Total Power(Full Loaded) |
6kw |
|
| Container | ||
| Max. Container Volume |
0.1-2.5L(2cav);3-6L(1 cav) |
|
| Neck Diameter Range |
15-60mm |
|
| Max. Container Diameter |
35-220mm |
|
| Max. Container Height |
450mm |
|
| Auxiliary System | ||
| Low Air compressor |
8-10Bar |
|
| High Air compressor |
30Bar |
|
| Air Dryer |
2.0/30 |
|
| Dimension & Weight (L×W×H) | ||
| Blow molding machine |
1480*600*2130mm |
|
| Preform Autoloader |
1370*610*1340mm |
|
