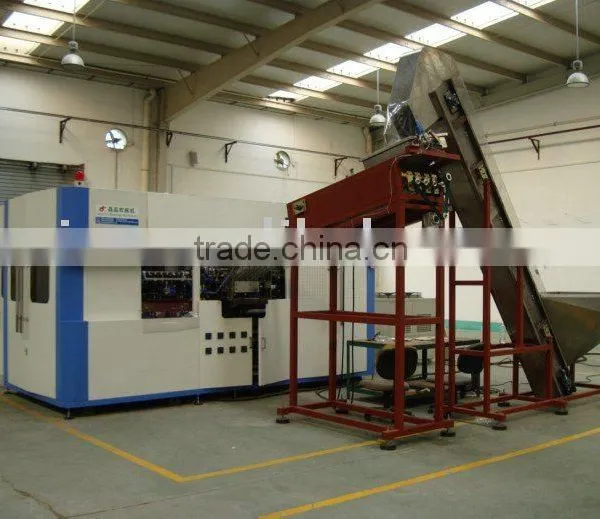

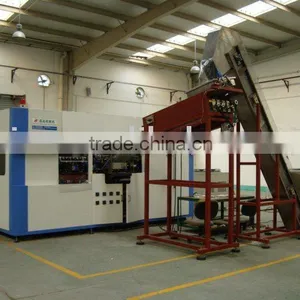

Automatic plastic bottle making machine
MGSS-2600 blow molding machine is one of the newest products for our customer.
Its strongest point is energy savings.
MGSS-2600 automatic stretch blow molding machine is one of the newest products
for our customer. Its strongest point is energy savings. Adopting high pressure
clamping, MG-2600 automatic stretch blow molding machine makes self-adjustment
in accordance with the different pressure needed during production, thus ensures
the super clamping force. While the high pressure sealing system with automatic
adjustment permits that mold sealing is under condition of 100% air tightness
before blowing and avoid air energy loss owing to incomplete air tightness. With
such effective control over air energy and power, it takes a big part to lower
costs and improve efficiency.
MG-2600 automatic stretch blow molding machine is widely used to produce
varieties of PET plastic container and package for mineral water, beverage, oil,
cosmetic and hot infusion, ect. Controlled by micro-computer with each main
process fitted with safety of self-locking, it is operated by only one worker
and the total production is completed automatically. Its wide utilization and
reliable performance make it become popular and attractive to all bottle
manufacturers.
Main technical specification
Clamping force |
25T |
Clamping stroke |
150mm |
Max. stretching stroke |
370mm |
Bottom moving stroke |
70mm |
Number of cavities |
2cavity |
Theoretical output |
2500BPH |
Max. mould thickness |
300MM |
Space between tie bars |
400*380MM |
Voltage standard |
380V/3PH/50Hz or special order |
Number of heating zone |
2sections |
Total power (full loaded) |
28KW |
Max. container volume |
2.5L |
Neck diameter range |
32mm |
Max. container diameter |
35-100mm |
Max. container height |
400mm |
Low air compressor |
8-10Bar |
High air compressor |
30Bar |
Air dryer |
3.0/30 |
Blow molding machine |
200*180*220CM |
Perform autoloader |
150*120*250CM |
Net Weight |
3.8 Ton |
