Self Adhesive Label Laminating Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Chemical, Textiles
Packaging Type:
Case, Film
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Self Adhesive Sticker Kraft Paper Laminating MachineNegotiableMOQ: 1 Set -
Silicone Paper Laminating MachineNegotiableMOQ: 1 Set
-
Solvent Based Glue Fabric Laminating MachineNegotiableMOQ: 1 Set
-
Hot Roll Press Laminating MachineNegotiableMOQ: 1 Set
-
Extrusion Laminating MachineNegotiableMOQ: 1 Set
Condition
New
Application
Apparel, Chemical, Textiles
Packaging Type
Case, Film
Packaging Material
Plastic, Wood
Automatic Grade
Semi-Automatic
Driven Type
Electric
Voltage
Customizable
Power
58.0 KW
Place of Origin
Jiangsu, China
Brand Name
EOMAE
Model Number
LS-1400
Dimension(L*W*H)
14800 x 2000 x 2100 mm
Weight
5800 KGS
Certification
CE SGS ISO
After-sales Service Provided
Engineers available to service machinery overseas
LS-1400 Self Adhesive Label Laminating Machine
Applications:
- Used for coating self-adhesive onto the surface of label, Release paper, Silicone paper, Kraft paper ..., then laminate with nonwoven, foam, sponge, leather, PE, PU, EVA ...
- Widely used in label, advertising, decoration, shoe-making, package and other industries.
Key Features:
- Professionally designed gluing unit is applicable to solvent based glue, water-based glue;
- Energy-saving baking oven, with good heat-insulation performance, can minimize heat loss;
- Baking oven is equipped with smart temperature control system, to ensure a constant oven temperature, very small temperature difference. Automatically stops heating when the temperature reaches the preset level. User may adjust the baking oven temperature according to different materials to achieve best laminating effect;
- Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate;
- Both unwinding and winding have magnetic constant tension control system;
- Automatic hydraulic centering unit ensures edge alignment in laminating;
- Equipped with pneumatic expanding shaft for easy operation;
- Edge cutting unit;
- Counting unit.
Options:
- Machine working width
- Heating Oven Length
- PLC system
- Servo motor
- Machine color
Main Technical Data
- LS-1400 Self Adhesive Label Laminating Machine
| Model: | LS-1400 |
| Working Width: | 1200 mm |
| Roller Width: | 1400 mm |
| Running Speed: | 0~20 m/min |
| Baking Oven Length: | 8000 mm |
| Heating Mode: | Electric |
| Power: | 58.0 KW |
| Net Weight: | 5800 KGS |
| Dimension: | 14800 x 2000 x 2100 mm |

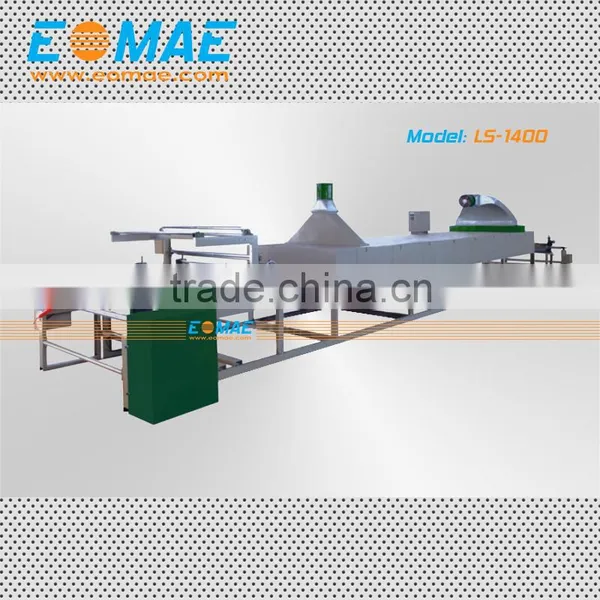

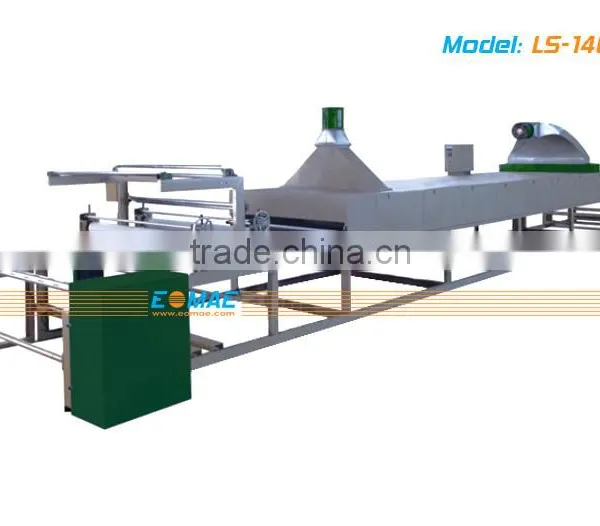

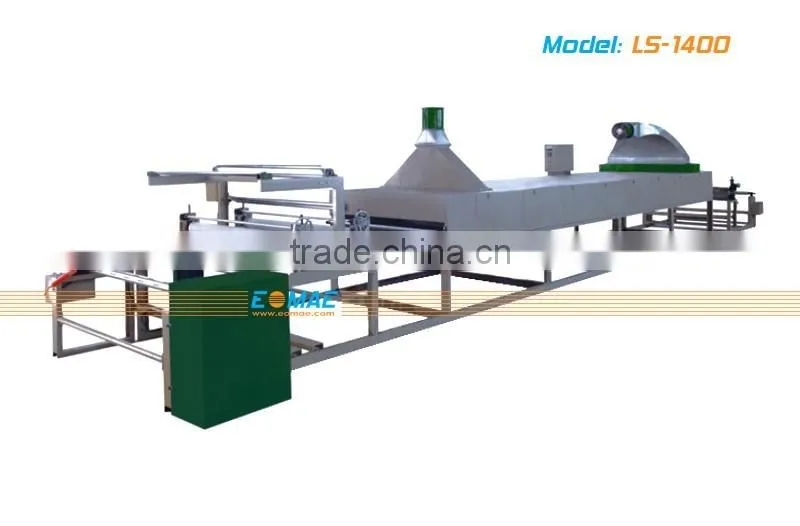

Machine Photo
- LS-1400 Self Adhesive Label Laminating Machine
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2011
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
